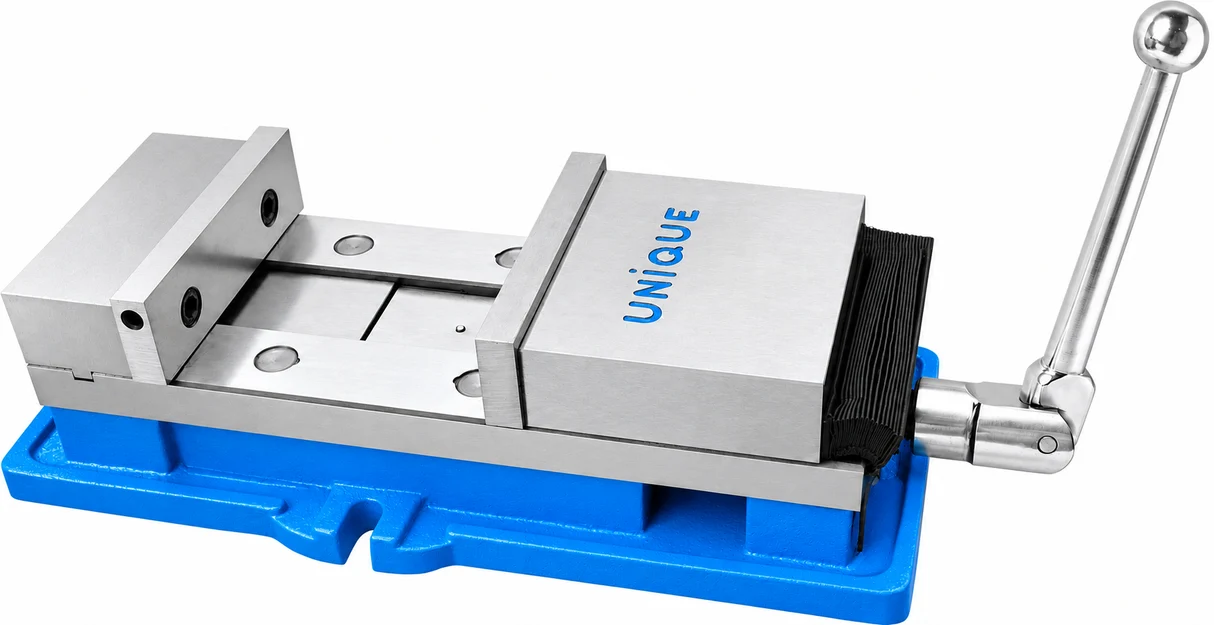

4-Way Versatility: Designed for 4 possible configurations (Setup Options), allowing for optimal orientation of the workpiece relative to the machine spindle.
FCD 60 Construction: Body cast from high-strength FCD 60 ductile iron with flame-hardened guideways to provide superior wear resistance and durability.
Anti-Lift Design: Engineered as a “hammer-less” anti-lift vise to ensure the workpiece is held securely against the bed during high-load operations.
Smooth Operation: Fitted with a thrust bearing to minimize friction, ensuring smooth movement of the jaw and reducing operator fatigue.
Chip Management: Designed with open chip clearance holes to eliminate dead pockets, ensuring reliable operation and easier maintenance.
Precision Standards: Guaranteed squareness accuracy within ±0.02 mm / 100 mm.
Production Ready: Supplied with a work-stop for fast, repeatable batch production.

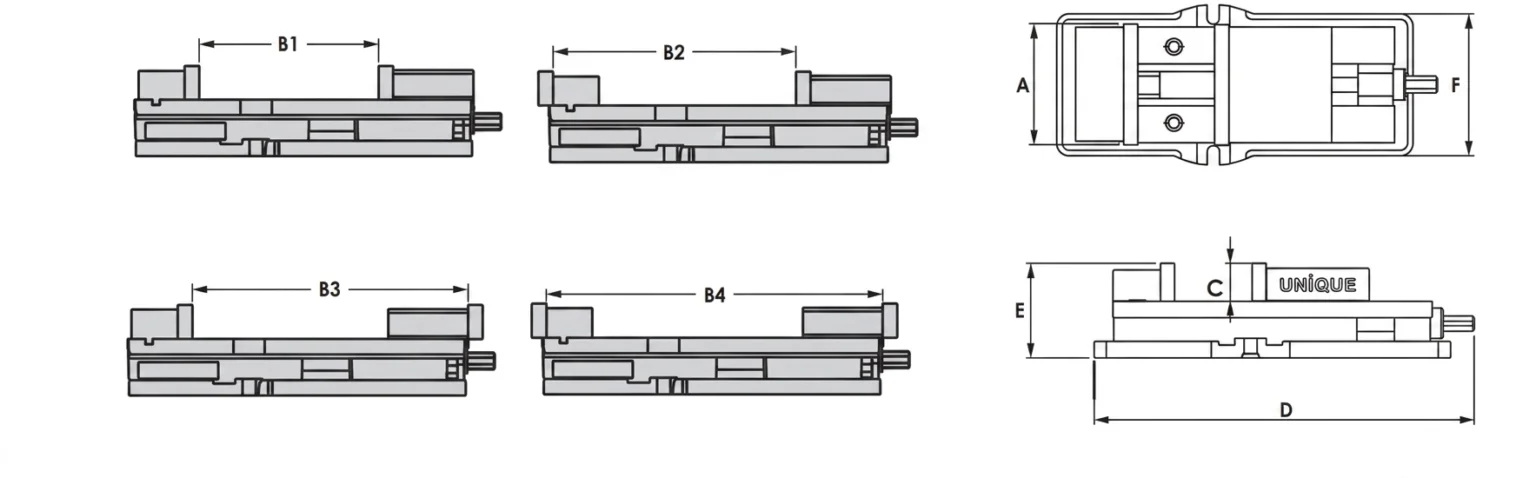

| Jaw Width | Opening | A | C | D | E (Fixed) | E (Swivel) | G | Weight (Fixed/kg) | Clamping (kgf) |
| 100 | 150 | 198 | 40 | 345 | 100 | 140 | 16 | 18 | 1500 |
| 125 | 125 | 173 | 40 | 375 | 100 | 145 | 16 | 30 | 3000 |
| 175 | 249 | 322 | 34 | 475 | 125 | 170 | 20 | 49 | 3200 |
| 225 | 299 | 372 | 36 | 535 | 160 | 220 | 20 | 60 | 3700 |
| 250 | 333 | 430 | 60 | 585 | 160 | 220 | 20 | 80 | 4000 |
| 300 | 400 | 495 | 70 | 695 | 165 | 225 | 20 | 120 | 4000 |
