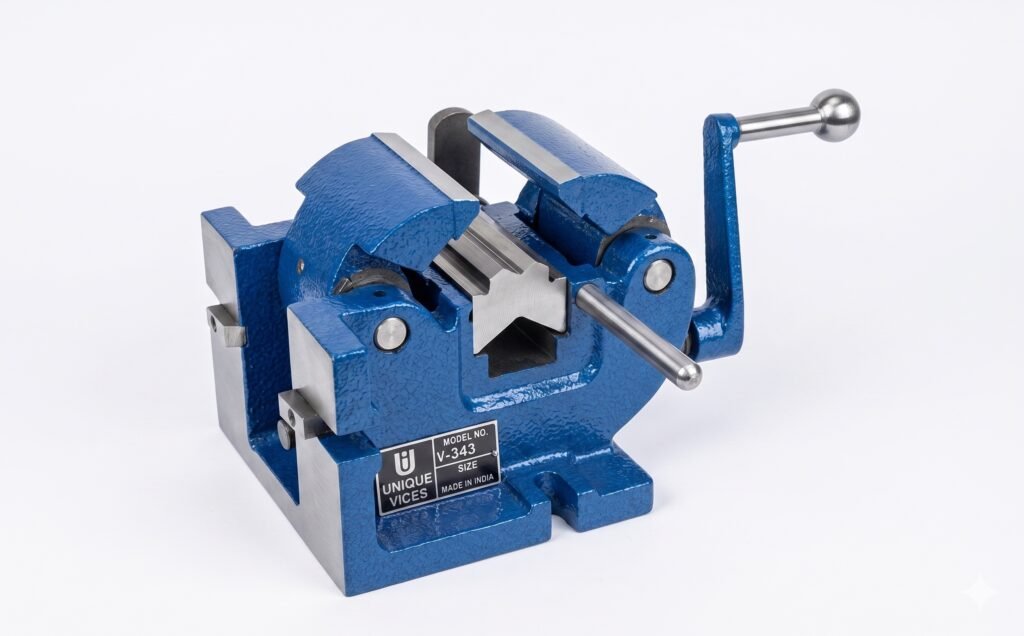

Unique Self-Centering Shaft Vice (Fitted with Ball Bearings)
Engineered specifically for cylindrical workpieces, this self-centering vice features an FCD 60 ductile iron body and a ball-bearing mechanism. Its design ensures that shafts are automatically centered every time, making it ideal for precision drilling, milling, and grinding on round stock.
Unique Self-Centering Shaft Vice (Fitted with Ball Bearings)
A high-performance vice that centers your work for you. Built with heavy-duty ductile iron and ball bearings, it makes holding round shafts fast, easy, and incredibly accurate.
Unique Self-Centering Shaft Vice (Fitted with Ball Bearings)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Self-Centering Shaft Vice (Fitted with Ball Bearings)
Code No: U 343
Key Features
Self-Centering Precision: Automatically aligns the workpiece to the center, reducing setup time and ensuring high accuracy for shaft-related tasks.
Ball-Bearing Assisted: Fitted with high-quality ball bearings for ultra-smooth operation and reduced friction during clamping.
FCD 60 Ductile Iron Body: Constructed with premium-grade FCD 60 for exceptional strength, durability, and superior vibration dampening.
Reversible Jaws: Multi-functional reversible jaws provide a wider range of clamping capacities for various shaft diameters.
Industrial Build: Specifically designed to withstand the heavy loads and repetitive cycles of professional machine shops.
Specifications.....
| Specifications | 80 mm | 150 mm |
| Width of Jaws (mm) | 105 | 170 |
| Holding Capacity (mm) | 20 – 80 | 90 – 150 |
| Reversible Jaws Capacity (mm) | 10 – 28 | 50 – 90 |
| Overall Height (mm) | 175 | 145 |
| Overall Width (mm) | 210 | 275 |
| Overall Length (mm) | 290 | 430 |
| Approx. Weight (kg) | 26 | 62 |
