Unique Modular Precision Machine Vise
The U3333 Modular Precision Machine Vise is a high-performance, low-profile workholding solution. Engineered for maximum rigidity and precision, its modular design allows for flexible configurations, including multi-vise setups for longer workpieces.
Unique Modular Precision Machine Vise
A professional-grade, hardened-steel vise that is built to last. Its "pull-down" jaw design ensures your workpiece stays locked flat against the base, and because it’s modular, you can easily link several together for those larger, longer projects
Unique Modular Precision Machine Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Modular Precision Machine Vise
Code No: U3333
Key Features
Modular Capability: With consistent bed height across the series, multiple vises can be used in tandem to securely hold extra-long workpieces.
Anti-Lift Design: Features pull-down angle jaw plates that exert a downward force on the workpiece, ensuring it stays firmly against the bed for rigid, lift-free clamping.
High-Grade Construction: Manufactured from stabilized, high-grade alloy steel and case-hardened to HRC 60 ± 2 for maximum durability and virtually zero wear.
Precision Accuracy: Engineered for high-tolerance machining with squareness guaranteed to within ± 0.01 mm per 100 mm.

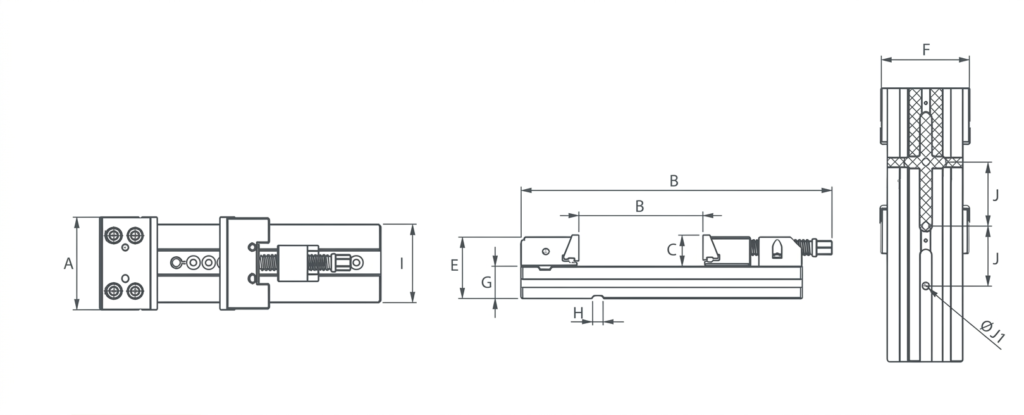

Specifications.....
| Jaw Width | Opening | A | C | D | E | G | H | Weight (kg) | Clamping Force |
| 100 | 130 | 325 | 71 | 45 | 102 | 16 | 90 | 13 | 2500 kg |
| 125 | 175 | 375 | 90 | 50 | 125 | 16 | 100 | 14 | 3000 kg |
| 150 | 225 | 450 | 100 | 50 | 150 | 16 | 125 | 29 | 3500 kg |
| 200 | 300 | 525 | 118 | 57 | 203 | 16 | 175 | 31 | 4000 kg |
Hardness: HRC 60 ± 2
Accuracy: Squareness ± 0.01/100 mm
