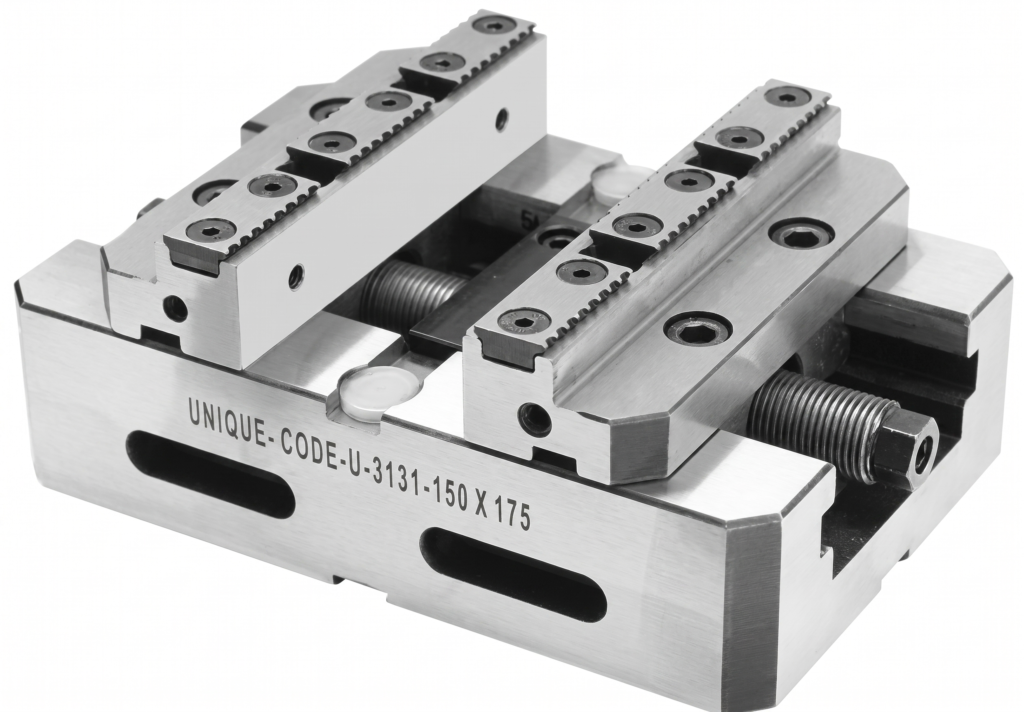

Unique Precision Self-Centering 5-Axis Vise
The U3131 Self-Centering 5-Axis Vise is a premium workholding solution engineered specifically for the demands of modern 4th and 5th axis CNC machining centers. Its compact, low-profile design maximizes workspace and tool access, allowing for efficient 5-sided machining of complex parts.
Unique Precision Self-Centering 5-Axis Vise
This is a compact, high-precision vise built specifically for 5-axis machines. It grips your work with minimal space so your machine can cut from five different sides in one go, and its "lock-tight" design keeps everything perfectly centered and flat, even under heavy machining loads.
Unique Precision Self-Centering 5-Axis Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Self-Centering 5-Axis Vise
Code No: U3131
Key Features
5-Sided Machining: Designed to grip the workpiece with minimal contact length, providing maximum clearance for cutting tools to access five sides of the part in a single setup.
Compact & Low Profile: The small body footprint is ideal for rotary tables, providing a large machining area and superior tool accessibility.
Anti-Floating System: Features a “Lock Tight” mechanism that prevents the workpiece from floating during clamping, ensuring consistent, high-efficiency results.
Enhanced Accessibility: Fully compatible with height riser blocks (U3131R8) to further improve spindle and tool clearance.
Efficient Design: The architecture of the vise facilitates the natural and effective evacuation of metal chips and coolant, keeping the work area clean.
Optional Profile Jaws: Available with a specialized Profile Jaw System for unique or complex part shapes.
Technical Specifications & Performance
Hardness: Case-hardened to HRC 60 ± 2 for maximum durability and wear resistance.
Centering Accuracy: Repeatable to ± 0.02 mm.
Squareness Accuracy: ± 0.01 mm / 100 mm.
Material: High-quality alloy steel.
