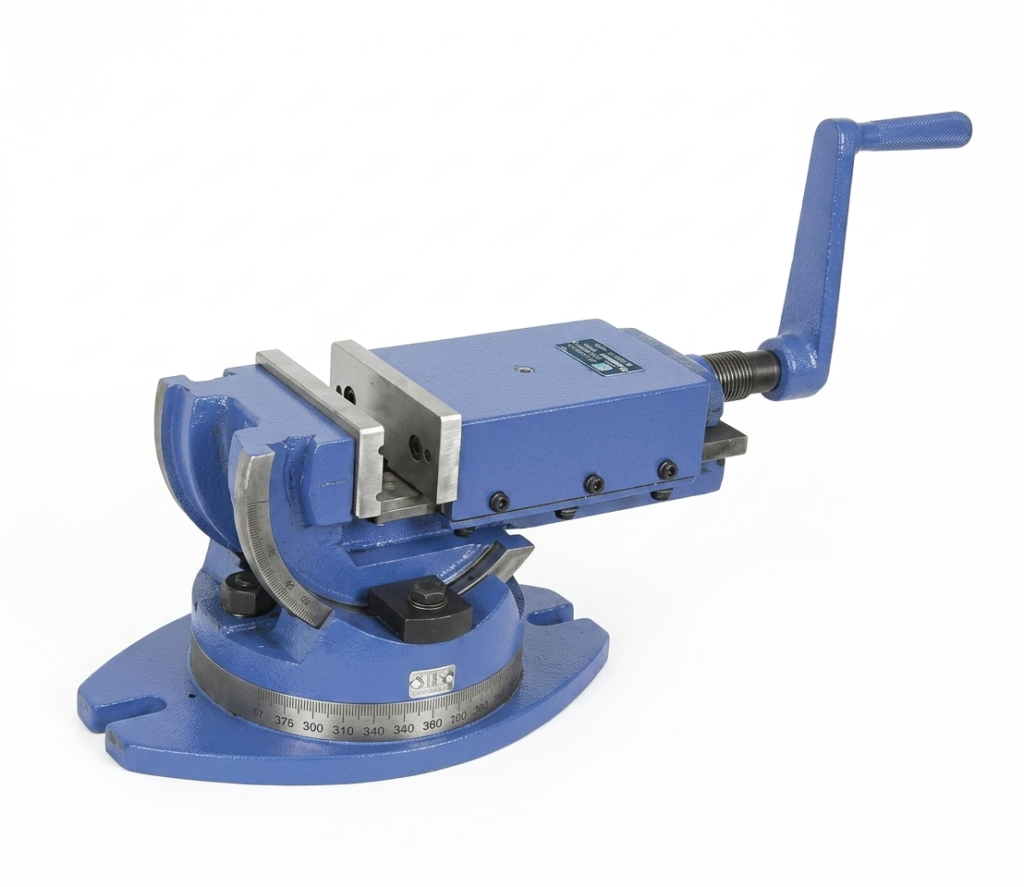

Unique Precision Milling Machine Vise (J&S Type)
Inspired by the industry-standard J&S (England) design, this precision milling vise is built for extreme rigidity and accuracy. It is an ideal choice for high-precision milling, grinding, and drilling operations where stability and repeatability are non-negotiable.
Unique Precision Milling Machine Vise (J&S Type)
A top-tier, heavy-duty milling vise that offers the perfect balance of smoothness and rock-solid grip. Whether you are holding flat parts or round stock, its precision-ground jaws and easy-to-adjust slides make it a powerhouse for any machine shop.
Unique Precision Milling Machine Vise (J&S Type)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Milling Machine Vise (J&S Type)
Code No: U348
Key Features
Thrust Bearing System: Specifically fitted with thrust bearings to ensure smooth spindle movement and reduce operator fatigue during heavy clamping.
Graded Cast Iron Body: Manufactured from high-strength graded cast iron for maximum toughness, ensuring the vise does not flex under high cutting loads.
Prismatic Slides: The moving jaw runs in long, precision-machined prismatic slides. It includes a provision for wear adjustment, ensuring long-term accuracy.
Precision Jaws: Made of special hardened and ground steel. The fixed jaw includes vertical and horizontal “V” grooves, allowing for the secure and perfect clamping of round workpieces.

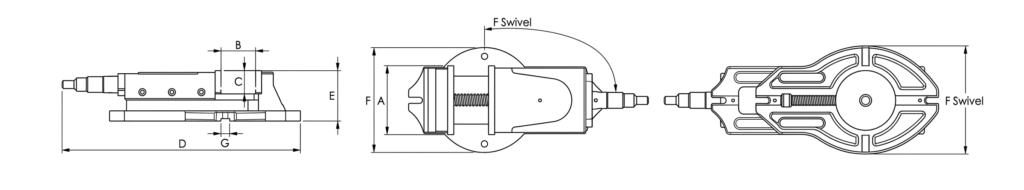

Specifications.....
| Jaw Width | Opening | A | B | C | E (Fixed) | E (Swivel) | F (Fixed) | F (Swivel) | G | Wt. (Fixed) | Wt. (Swivel) |
| 100 | 100 | 340 | 90 | 40 | 120 | 152 | 176 | – | 16 | 13 | 17 |
| 150 | 150 | 490 | 110 | 50 | 150 | 248 | 289 | – | 20 | 35 | 47 |
| 200 | 200 | 670 | 130 | 60 | 180 | 300 | 332 | – | 20 | 63 | 84 |
