Specifications
| Size in Inches | 2-1/2 | 3 | 4 | 6 |
|---|---|---|---|---|
| Width of Jaws | 50 | 76 | 94 | 150 |
| Opening of Jaws | 75 | 100 | 135 | 190 |
| Depth of Jaws | 28 | 35 | 45 | 48 |
| Height Overall | 53 | 64 | 84 | 96 |
| Width Overall | 50 | 76 | 95 | 150 |
| Length Overall | 155 | 180 | 232 | 330 |
| Weight (App.Kg) | 1.7 | 3.7 | 7.6 | 19.4 |

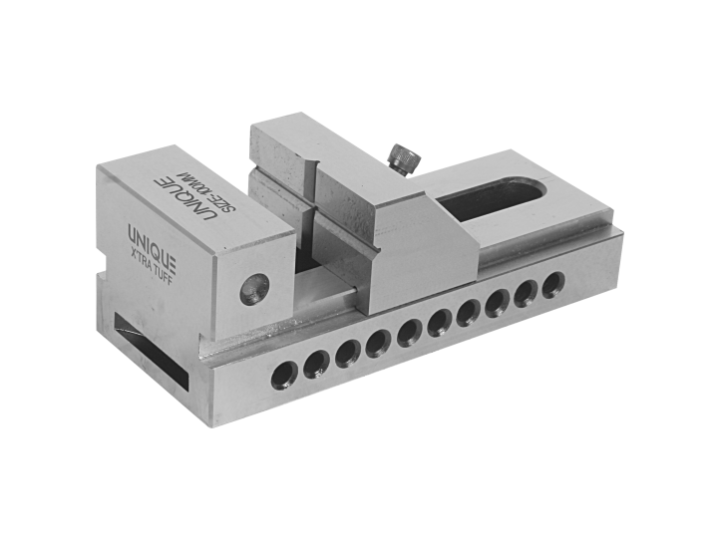

Precision Screwless Vice – Code No. U-421
Features
- This high precision screwless vise has a one-piece body.
- Precision ground to a mirror finish.
- Ideal for holding small parts.
- Simple operation and extremely versatile
- The body and jaws are hardened .
- All sides are flat, square, and parallel
