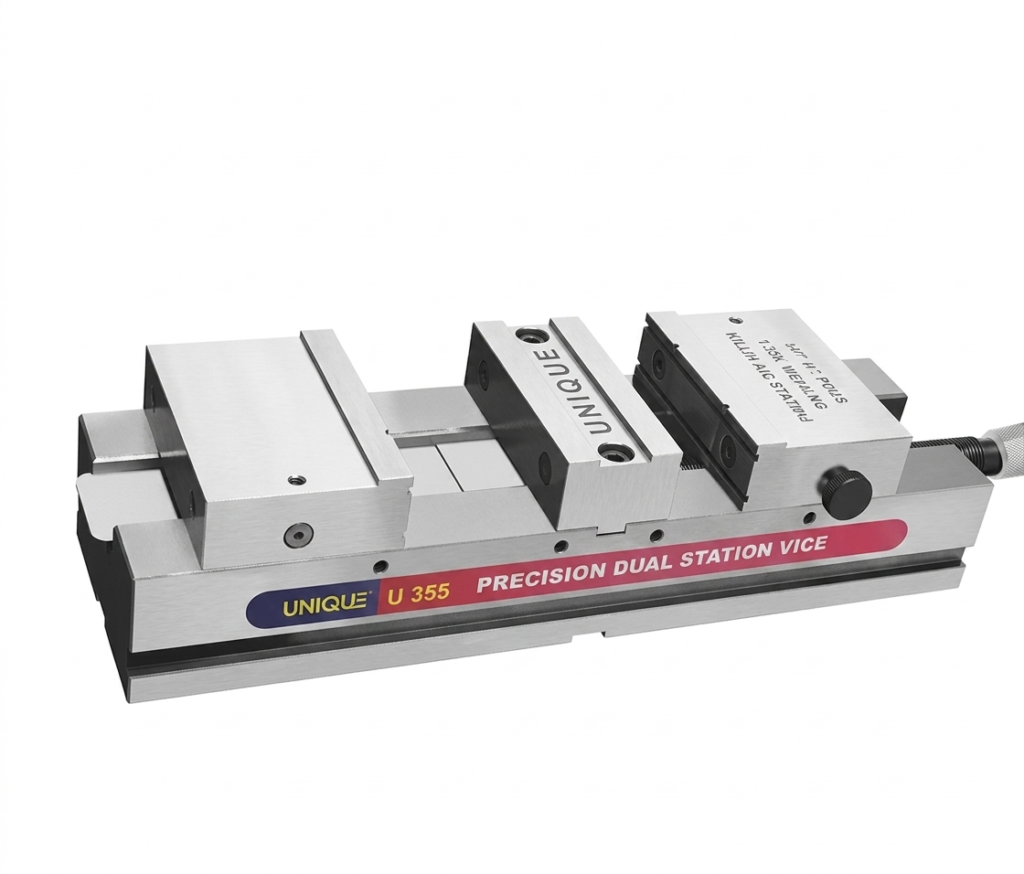

Unique Precision Dual Station Vise
The U355 Precision Dual Station Vise is an advanced workholding solution designed for high-efficiency, high-volume production. By allowing the simultaneous clamping of two workpieces—whether they are the same or different sizes—this vise significantly boosts throughput and minimizes cycle times.
Unique Precision Dual Station Vise
This vise doubles your productivity by letting you clamp two parts at once. It automatically balances the pressure so both parts are held with the exact same force, and its heavy-duty, hardened steel construction ensures it stays perfectly square and accurate, even under high-volume workloads.
Unique Precision Dual Station Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Dual Station Vise
Code No: U355
Key Features
Dual-Station Efficiency: Enables the simultaneous clamping of two workpieces, drastically increasing production speed.
Clamping Force Equalization: Features an advanced internal mechanism that ensures both workpieces are clamped with equal force, even if their sizes vary slightly.
FCD 60 Construction: Built with a high-quality FCD 60 ductile iron body for maximum rigidity and vibration dampening.
Precision Hardened Components: Both the vise bed and the jaw plates are hardened and precision-ground to provide exceptional wear resistance and long-term accuracy.
High-Accuracy Alignment: The fixed center jaw includes a precision-machined keyway with H7 tolerance, ensuring perfectly accurate alignment during setup.
5-Way Setup Flexibility: Offers 5 different clamping configurations, providing the versatility needed to adapt to complex parts and various machine table layouts.
Industrial Accuracy: Guaranteed squareness accuracy within ±0.02 mm / 100 mm.
Technical Data.......
