Technical Specifications & Performance
Hardness: Case-hardened to HRC 60 ± 2 for maximum durability and wear resistance.
-
Centering Accuracy: Repeatable to ± 0.02 mm.
-
Squareness Accuracy: ± 0.01 mm / 100 mm.
-
Material: High-quality alloy steel.

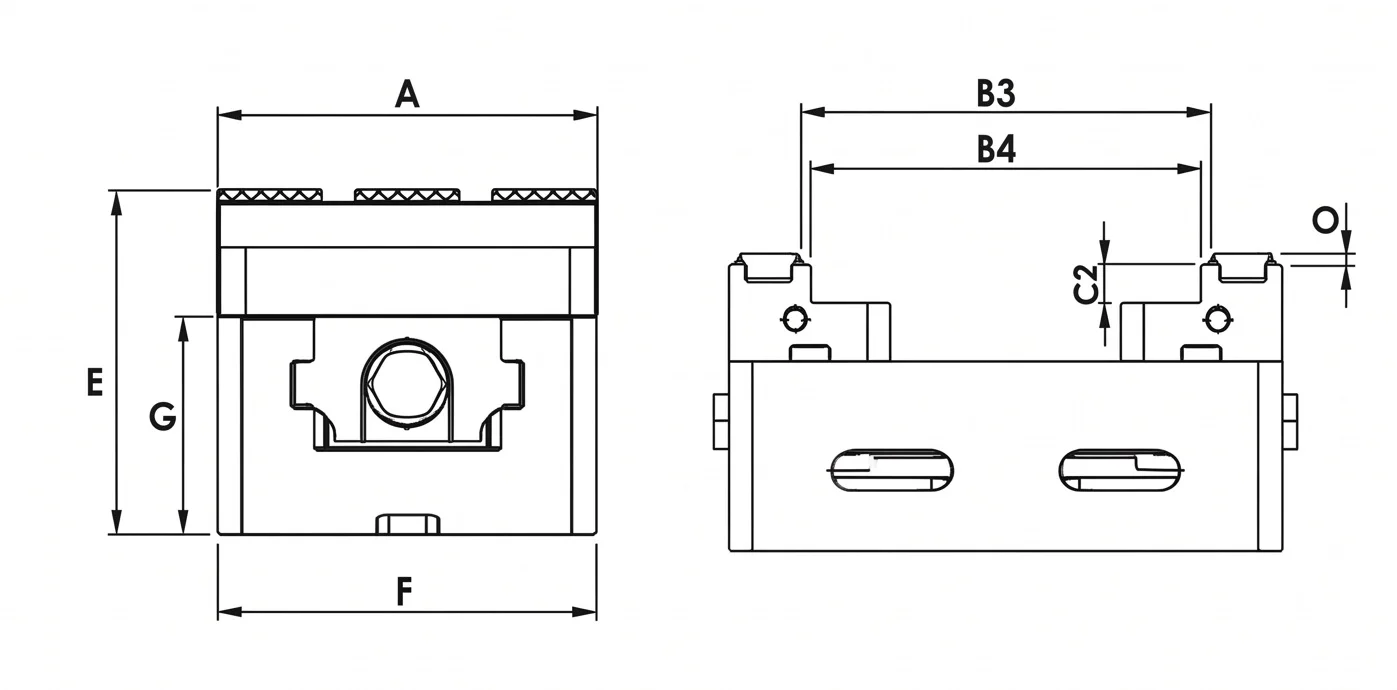

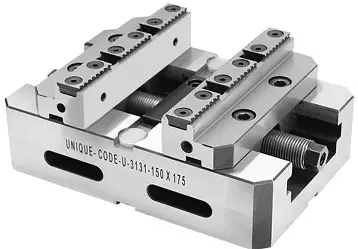

Unique Precision Self-Centering 5-Axis Vise Code No: U3131
Key Features
-
5-Sided Machining: Designed to grip the workpiece with minimal contact length, providing maximum clearance for cutting tools to access five sides of the part in a single setup.
-
Compact & Low Profile: The small body footprint is ideal for rotary tables, providing a large machining area and superior tool accessibility.
-
Anti-Floating System: Features a “Lock Tight” mechanism that prevents the workpiece from floating during clamping, ensuring consistent, high-efficiency results.
-
Enhanced Accessibility: Fully compatible with height riser blocks (U3131R8) to further improve spindle and tool clearance.
-
Efficient Design: The architecture of the vise facilitates the natural and effective evacuation of metal chips and coolant, keeping the work area clean.
-
Optional Profile Jaws: Available with a specialized Profile Jaw System for unique or complex part shapes.
