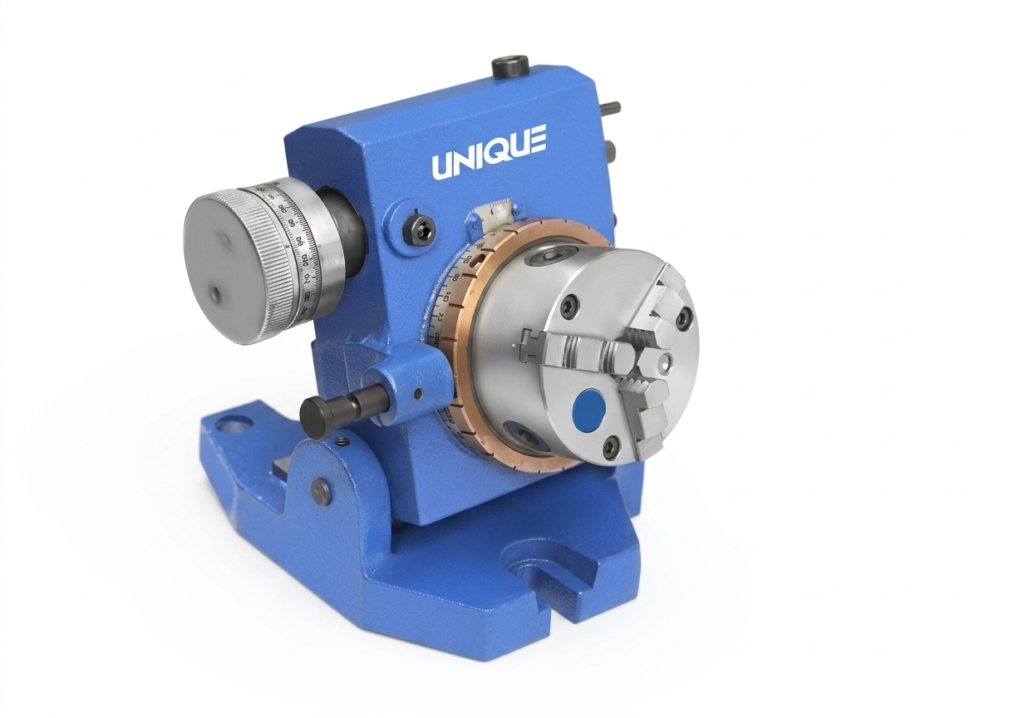

Unique Tilting Indexing Device
The U 1333 Tilting Indexing Device is a versatile, high-value machining solution. It effectively combines the functionality of a Dividing Head and a Rotary Table into one compact, cost-effective unit, making it perfect for shops looking to maximize efficiency without compromising on performance
Unique Tilting Indexing Device
A smart, space-saving tool that does the job of both a dividing head and a rotary table. It tilts and spins, making it easy to machine precise angles and circular patterns on any project.
Unique Tilting Indexing Device
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Tilting Indexing Device
Code No: U 1333
Key Features
Dual-Axis Flexibility: The working surface can be rotated between 0° and 90° on the A-axis, allowing for precise angular machining and complex positioning.
Combined Versatility: Offers the functionality of both a Dividing Head (U352) and a Rotary Table (U354), providing significant savings in both cost and workspace.
Performance-Matched: Offers identical features to the U1335 Indexing & Milling Fixture, ensuring high-accuracy results for milling and indexing tasks.
360° Swivel: Provides full rotational capability for uniform circular machining and index-based operations.
Specifications.....
| Specifications | 4″ | 8″ |
| Diameter of Chuck (mm) | 100 | 200 |
| Length (mm) | 250 | 300 |
| Width (mm) | 220 | 280 |
| Height (mm) | 190 | 170 |
| Swivel | 360° | 360° |
| Tilting | 90° | 90° |
| Slot Distance (mm) | 170 | 275 |
| Approx. Weight (kg) | 16 | 62 |
