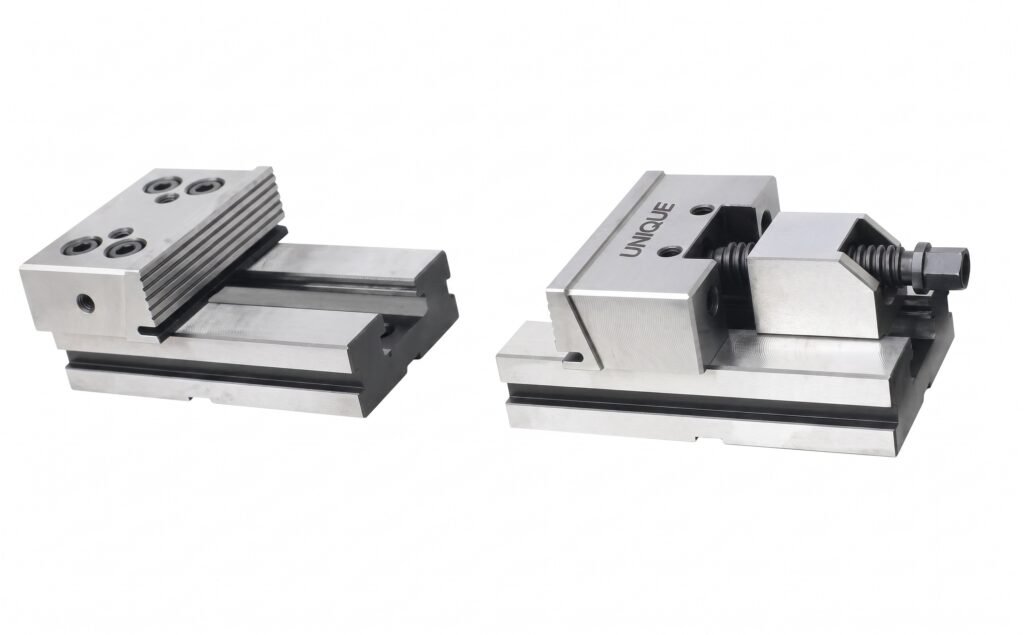

Unique Two-Piece Modular Precision Machine Vise
The U3434 is a versatile two-piece modular vise designed to overcome the size limitations of standard vises. Because the fixed and moving jaws are separate units, it provides an unlimited clamping range, making it the ideal solution for machining oversized or irregular workpieces that traditional vises cannot accommodate.
Unique Two-Piece Modular Precision Machine Vise
This is a "freestyle" modular vise system. Because it comes in two separate pieces, you aren't limited by a fixed opening width—you can space the jaws as far apart as you need to hold massive workpieces. It’s built from ultra-hardened steel and features a pull-down design to keep your work perfectly flat and locked tight.
Unique Two-Piece Modular Precision Machine Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Two-Piece Modular Precision Machine Vise
Code No: U3434
Key Features
Unlimited Clamping Range: The two-piece modular design allows the jaws to be mounted anywhere on the machine table, accommodating workpieces of virtually any length.
Anti-Lift Technology: Features “hammer-less” pull-down angle jaw plates that force the workpiece downward against the table, ensuring rock-solid, lift-free clamping.
Extreme Durability: Manufactured from stabilized, high-grade alloy steel and case-hardened to HRC 60 ± 2 for maximum rigidity and wear resistance.
Modular Versatility: Bed height is maintained consistently, allowing multiple units to be used in series for long parts.
High-Precision Standards: Engineered for high-tolerance work with squareness accuracy within ± 0.01 mm / 100 mm.
Versatile Jaw Options: Compatible with Plain, Serrated, Prismatic, V-Type, and High Jaws to suit specific material shapes and machining requirements.
Production Ready: Includes a stopper to facilitate fast, repeatable setups for batch production.
Specifications.....

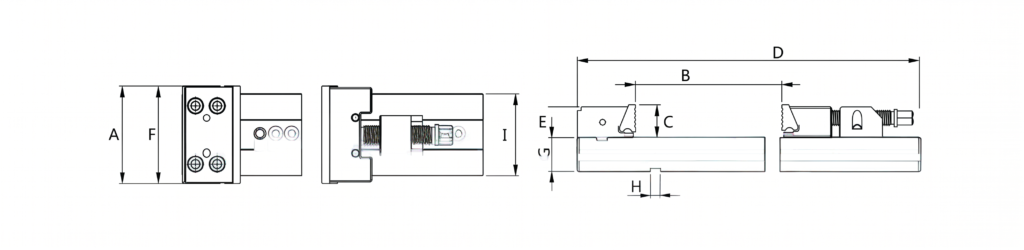

| Jaw Width | Opening | A | C | D | E | G | H | Weight (kg) | Clamping Force |
| 150 | Assorted | 50 | 150 | 50 | 125 | 16 | 125 | 26 | 3000 kgf |
| 200 | Assorted | 60 | 203 | 57 | 175 | 16 | 175 | 32 | 3500 kgf |
