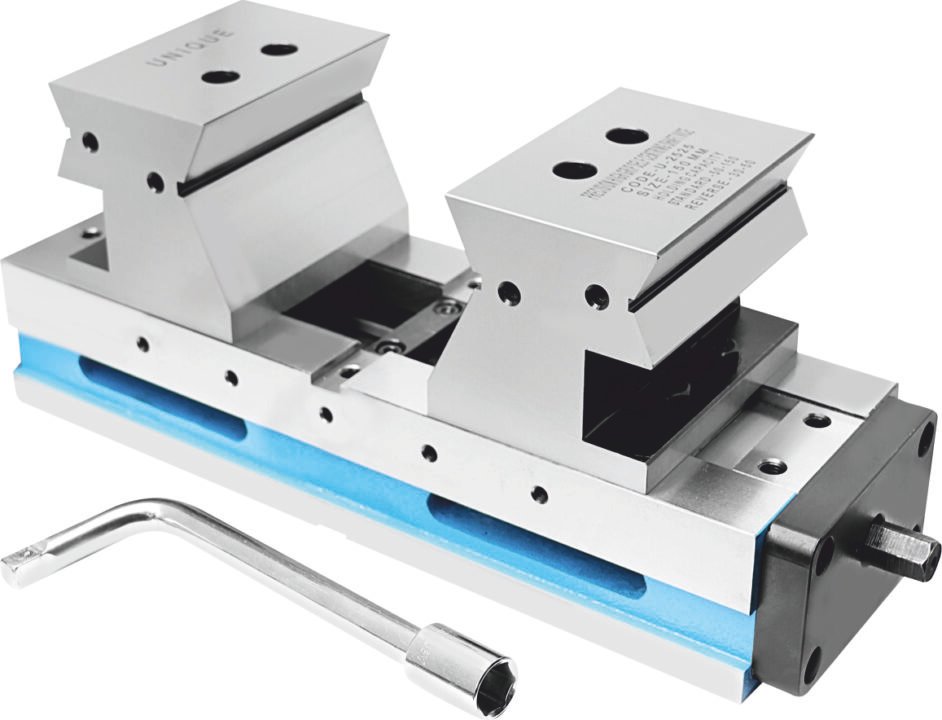

Unique Precision High-Grip Self-Centering Shaft Vise
The U2525 Self-Centering Shaft Vise is a specialized workholding tool engineered for the precise centering of round workpieces. Its robust, compact design makes it an ideal choice for milling, grinding, and CNC operations where maintaining perfect symmetry on cylindrical or shaft-type parts is critical.
Unique Precision High-Grip Self-Centering Shaft Vise
This vise is built for precision shaft work. It automatically centers your round parts as you tighten it, taking the guesswork out of setup. With its reversible jaws and massive 5000 kg clamping force, it provides a rock-solid, perfectly aligned grip that is ideal for grinding and milling cylindrical components.
Unique Precision High-Grip Self-Centering Shaft Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision High-Grip Self-Centering Shaft Vise
Code No: U2525
Key Features
Self-Centering Precision: Specifically designed to automatically center round shafts or cylindrical workpieces, ensuring highly repeatable and accurate machining.
Reversible Jaws: Jaws can be reversed to significantly increase the clamping range, providing flexibility for different shaft diameters.
FCD 60 Construction: Body cast from high-strength FCD 60 ductile iron, featuring flame-hardened guideways for superior wear resistance and structural rigidity.
Hardened Jaw Plates: High-quality alloy steel jaws, case-hardened to HRC 60 ± 2, ensuring a firm, long-lasting grip on metal components.

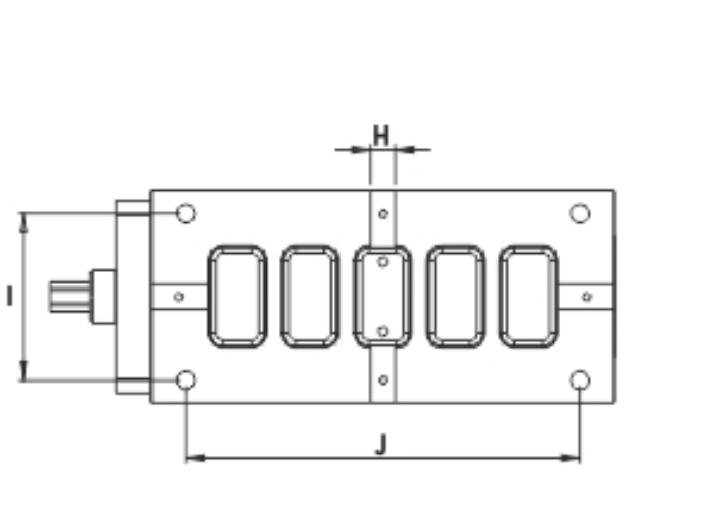

Effortless Truing: Includes tenons and tenon slots that allow for rapid and precise alignment of the vise to the machine table.
Precision Standards: Guaranteed squareness and parallelism within ± 0.02 mm / 100 mm to meet stringent industrial tolerance requirements.
Squareness Accuracy: ± 0.02 mm / 100 mm
Parallelism (Top/Bottom): ± 0.02 mm / 100 mm

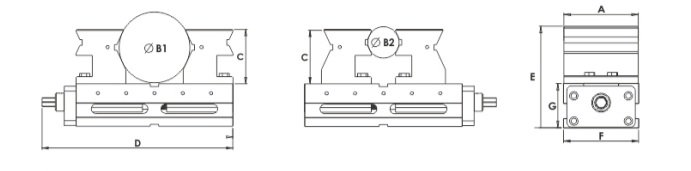

Specifications.....
| Jaw Width (mm) | Opening Range (mm) | Weight (kg) | Clamping Force (kgf) |
| 150 | 40–100 (inner) / 20–40 (outer) | 25 | 5000 |
| 150 | 50–150 (inner) / 30–50 (outer) | 57 | 5000 |
