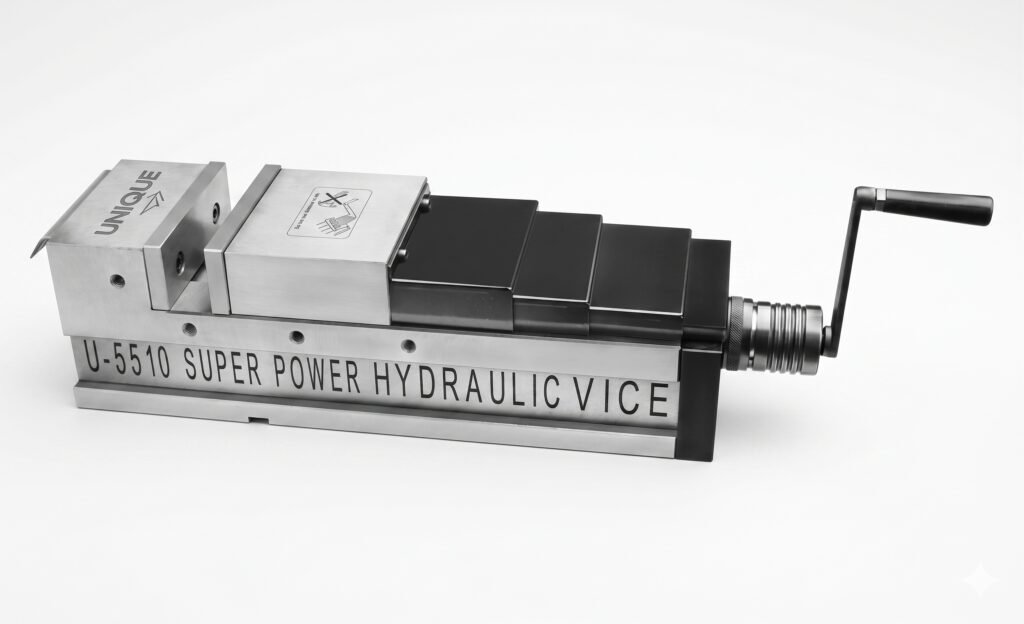

Unique Precision Tilt Lock Hydraulic Vise
The U5510 Precision Tilt Lock Hydraulic Vise combines high-force hydraulic amplification with a specialized tilt-lock design to ensure maximum clamping security. Built for heavy-duty industrial milling and grinding, it excels in applications where vibration control and the elimination of workpiece lift are critical.
Unique Precision Tilt Lock Hydraulic Vise
This is a super-powered hydraulic vise that does the heavy lifting for you. With its built-in booster, you can lock your parts down with a massive 4500 kg of pressure using just a light turn of the handle, while the "Tilt Lock" action keeps your workpiece clamped perfectly flat and secure throughout the entire machining process.
Unique Precision Tilt Lock Hydraulic Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Tilt Lock Hydraulic Vise
Code No: U5510
Key Features
Tilt Lock Design: Features a unique mechanical design that creates a constant downward thrust during clamping, effectively preventing the workpiece from lifting off the bed under high cutting forces.
Hydraulic Booster System: Integrated hydraulic booster provides massive, stable clamping force (up to 4500 kgf) with minimal manual effort from the operator.
FCD 60 Construction: Heavy-duty body cast from high-quality FCD 60 ductile iron for superior structural rigidity and vibration dampening.
Precision Hardened Bed: Vise beds are precision-hardened and ground to maintain a flat, accurate surface for long-term reliability.
Industrial Accuracy: Guaranteed squareness tolerance within 0.02 mm / 100 mm, meeting demanding tool room and production requirements.
Specifications.....

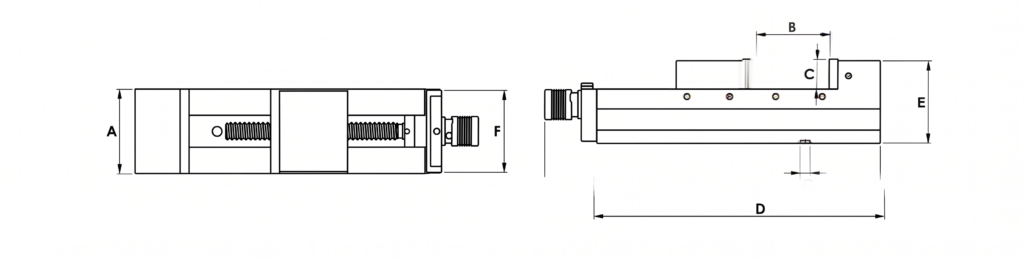

| Jaw Width | Opening | A | C | D | E | Clamping Force | Weight |
| 150 mm | 200 mm | 520 mm | 50 mm | 165 mm | 160 mm | 4500 kgf | 71 kg |
