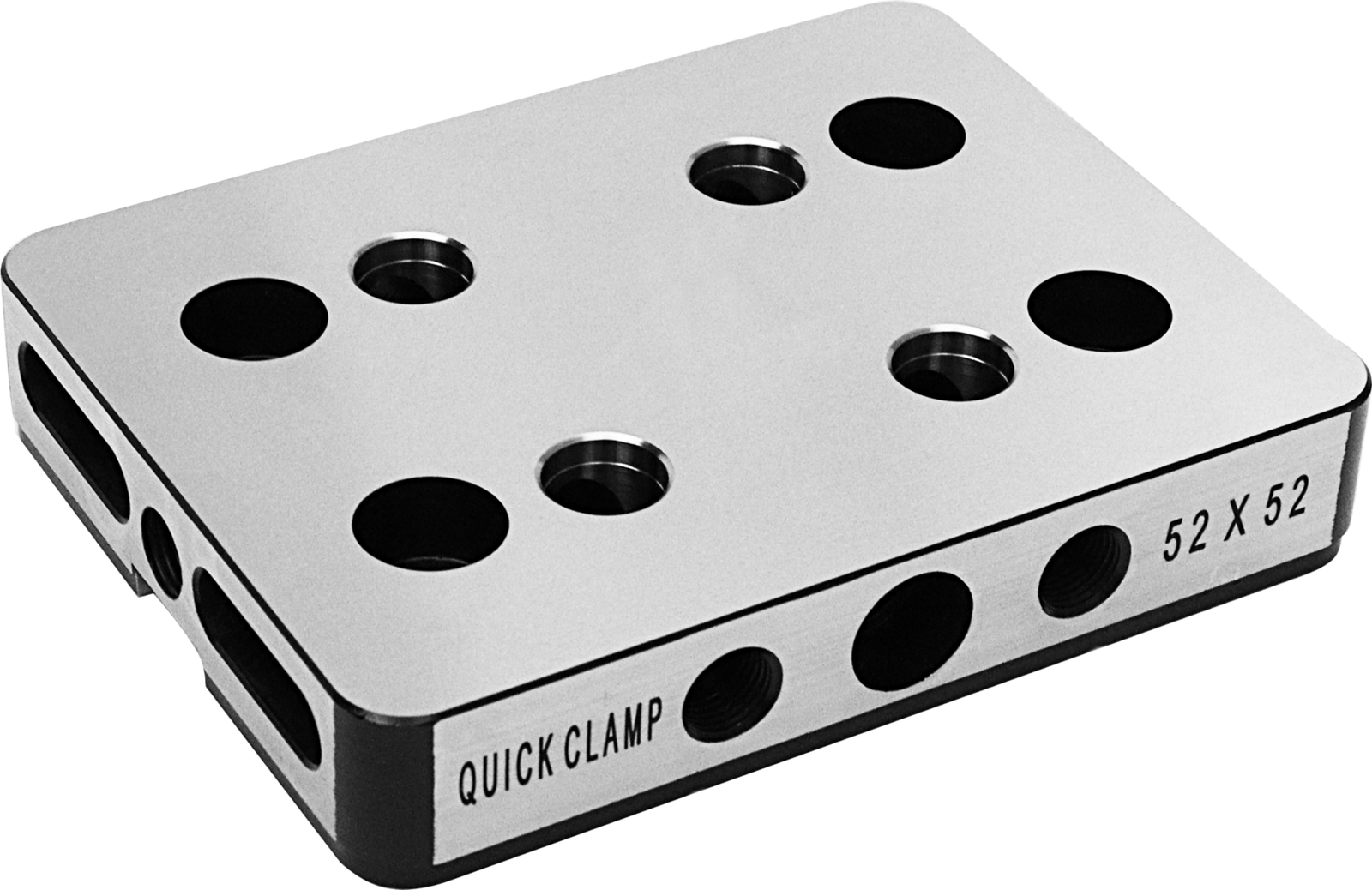

Rectangular Quick Point Clamping Plate – Code No. U-3636 R

Features

• High quality alloy steel body, case-hardened to HRC 60 ± 2.
• Every internal part has a hardness of HRC 60 ± 2, which makes the whole body super wear-resistant.
• Its benefit is high repeat accuracy and extremely short set-up times.
• Fixtures/vises mounted on this product can be rotated by 900, with a centering accuracy of 0.01 mm.
• Supports grid patterns (most common) of 52×52 and 96×964.
• Can be supplied with pre-drilled and tapped mounting patterns, to make it compatible with the most commonly used T-slot machine-table standards in the market.
• Comes with Aligning Keys, so as to align it on the machine table.
• Clamping Repeatability well within 0.01 mm.
• As the bed height is maintained, multiple plates can be used in series to create a larger fixture/clamping range.
