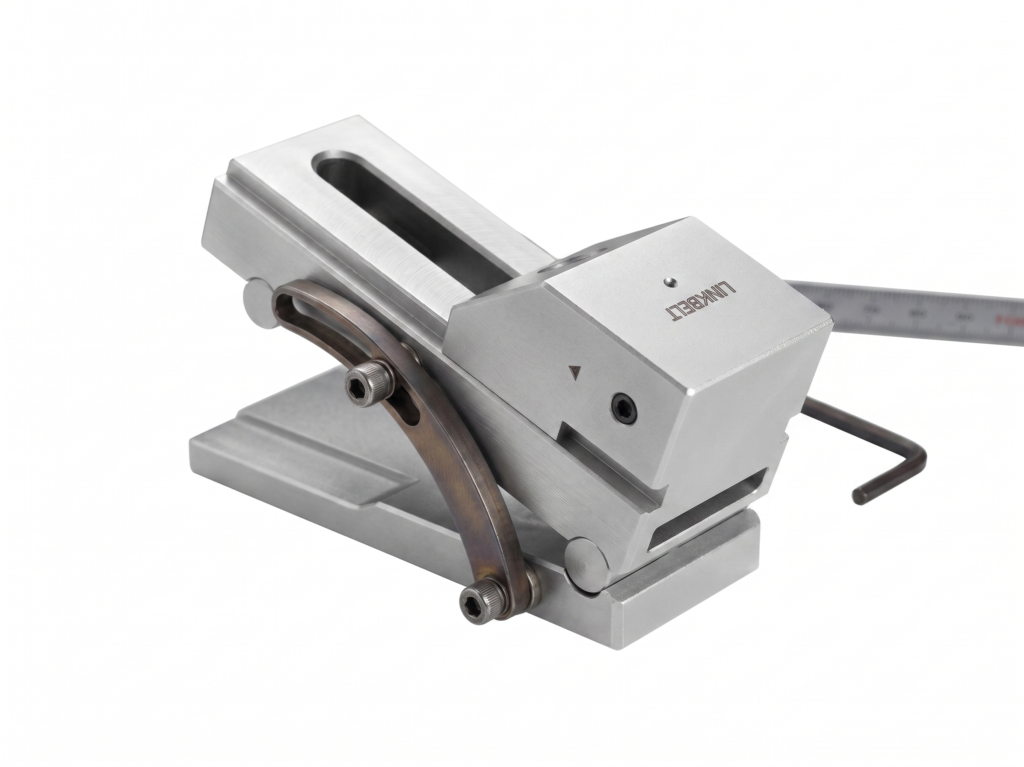

Unique Precision Sine Vise (Pin Type)
The U424 Precision Sine Vise (Pin Type) is an elite workholding tool designed for high-precision angular machining, grinding, and inspection. By utilizing gauge blocks, it allows for the setup of extremely accurate angles, making it an essential instrument for tool rooms that demand exact angular tolerances.
Unique Precision Sine Vise (Pin Type)
This is a high-precision vise used when you need to tilt your work to an exact angle. By placing gauge blocks under the ground pin, you can set your required angle with absolute certainty. Built from ultra-hardened tool steel, it’s designed for jobs where there is zero room for error.
Unique Precision Sine Vise (Pin Type)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Sine Vise (Pin Type)
Code No: U424
Key Features
Precision Angular Setup: Engineered for the precise setting of angles using gauge blocks, ensuring repeatable and high-accuracy results for complex angular components.
Premium Material: Both the vise body and jaws are constructed from high-quality Tool Steel, which is hardened, tempered, and precision-ground for long-term stability.
High-Tolerance Accuracy: Maintains rigorous standards with parallelism and squareness held within ± 0.01 mm / 100 mm.
Stable Pin-Type Design: Features a robust pin-type construction that provides the necessary rigidity for delicate grinding and machining tasks.
Specifications.....

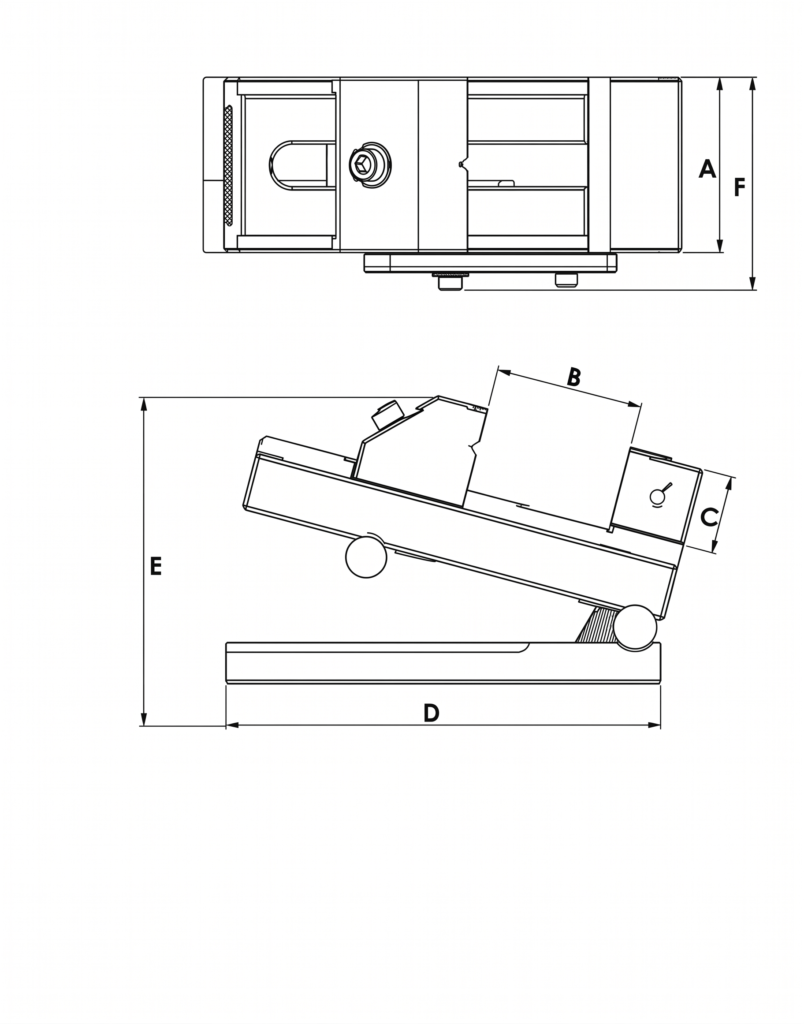

| Jaw Width | Opening | A | B | D | Weight (kg) |
| 75 | 95 | 40 | 195 | 105 | 12 |
| 100 | 114 | 44 | 237 | 118 | 22 |
Accuracy: Parallelism and squareness are guaranteed within ± 0.01 mm / 100 mm.
