Unique Mechanical Booster Power Vise
The U1313 Mechanical Booster Power Vise is a high-performance workholding solution designed for demanding machining tasks where consistency and high clamping force are essential. By utilizing a sophisticated internal mechanical amplification system, it allows operators to achieve high clamping pressure with minimal effort, ensuring workpieces remain secure even under heavy vibration or shock.
Unique Mechanical Booster Power Vise
A high-force "Booster" vise that turns a simple turn of the handle into massive, steady clamping pressure. It’s built with ultra-tough hardened iron and designed to hold your work perfectly still—even against the toughest machine vibrations.
Unique Mechanical Booster Power Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Mechanical Booster Power Vise

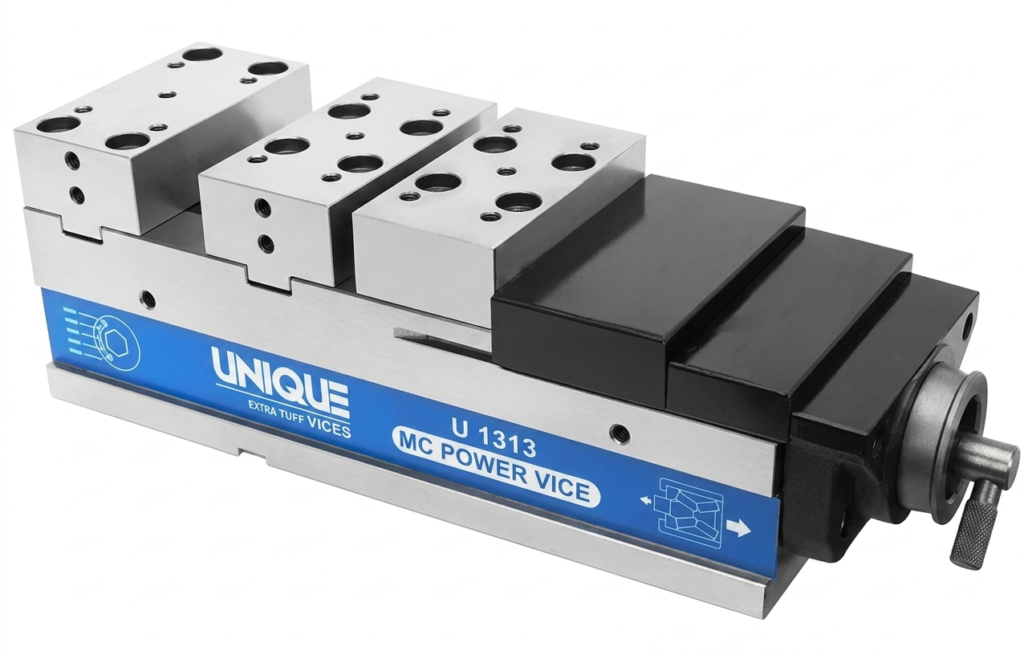

Code No: U1313
Key Features
Mechanical Booster System: Uses an internal mechanical amplifier to boost operator effort, providing highly consistent and extremely high clamping pressure.
FCD 60 Construction: Built with a premium-grade FCD 60 body featuring flame-hardened guideways for exceptional wear resistance and structural integrity.
Toggle Joint Mechanism: Provides a steady, reliable grip that effectively absorbs machine-induced shocks and vibrations.
Rapid Operation: Engineered for quick clamping and locking, significantly reducing idle time in production environments.
High Precision: Guaranteed to ± 0.01 mm for both squareness and parallelism, meeting the most stringent industrial tolerance requirements.

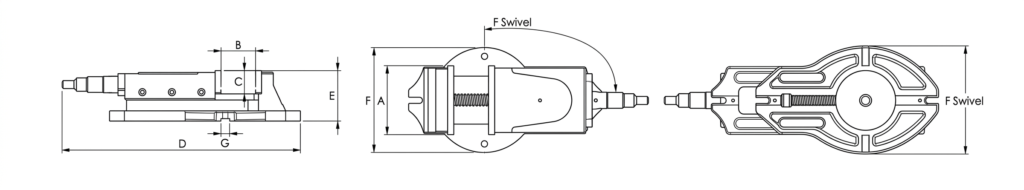

Specifications.....
| Setting Range | 1 | 2 | 3 | 4 |
| Clamping Force (kN) | 10 | 18 | 35 | 50 |
