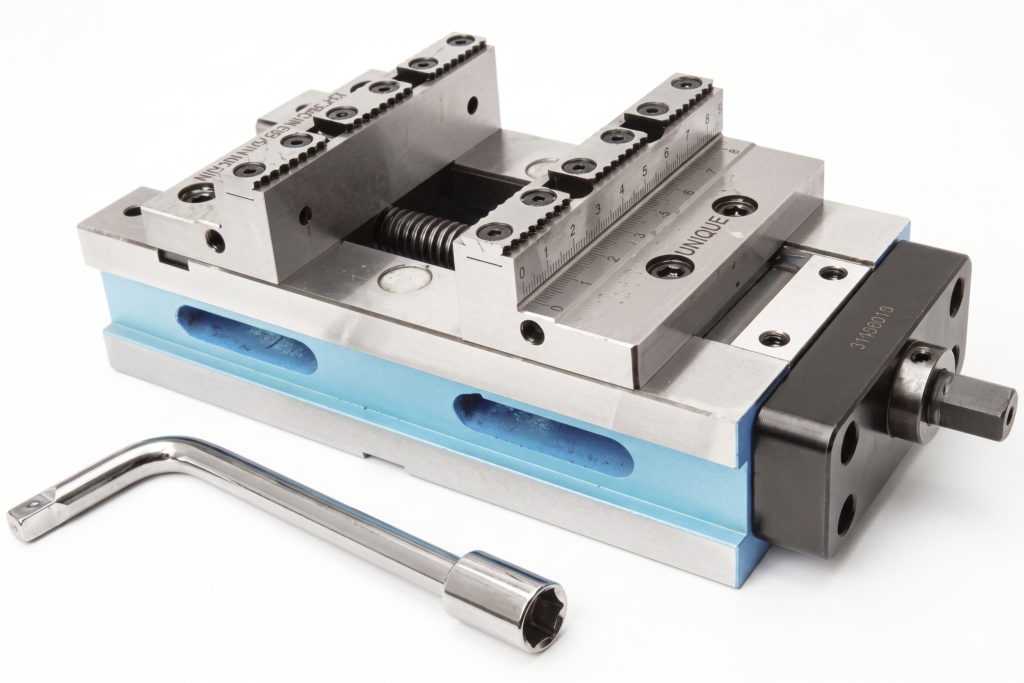

Unique Precision High Grip Machine Vise
The U2121 Precision High Grip Machine Vise is designed for high-performance CNC, milling, and grinding applications. Combining an FCD 60 ductile iron body with a high-grip, versatile jaw system, it provides the stability and flexibility required for complex, precision production tasks.
Unique Precision High Grip Machine Vise
This is a high-grip vise that gives you extra versatility thanks to its clever reversible jaws—it essentially gives you two clamping ranges in one tool. It is built tough with hardened alloy steel and FCD 60 iron to hold your work steady with up to 5000 kg of force, keeping everything square and parallel for your most demanding CNC and milling jobs.
Unique Precision High Grip Machine Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision High Grip Machine Vise
Code No: U2121
Key Features
Reversible Jaws: Jaws can be reversed to provide an additional clamping range, and they feature two different clamping areas in both normal and reverse positions, offering maximum versatility for different part sizes.
FCD 60 Body: Constructed from high-quality FCD 60 ductile iron with flame-hardened guideways for superior wear resistance and structural rigidity.
High-Grip Hardened Jaws: Jaw plates are made from high-quality alloy steel and case-hardened to HRC 60 ± 2, ensuring a long-lasting, secure grip.
Effortless Alignment: Equipped with tenons and tenon slots to allow for quick and accurate truing (alignment) of the vise to the machine table.
Precision Standards: Guaranteed squareness and parallelism (top and bottom faces) within ± 0.02 mm / 100 mm.
Versatile Application: Specifically designed for precision milling, grinding, and CNC machining environments.
Specifications.....
| Jaw Width (mm) | Opening (mm) | Clamping Force (kgf) | Weight (kg) |
| 150 | 175 | 5000 | 39 |
| 200 | 212 | 5000 | 90 |
Squareness Accuracy: ± 0.02 mm / 100 mm
Parallelism (Top/Bottom): ± 0.02 mm / 100 mm
