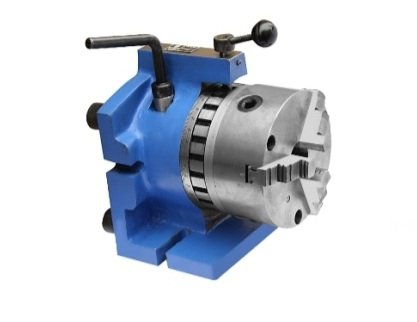

Unique Indexing Milling Fixture (Horizontal & Vertical)
This versatile fixture is designed for high-efficiency milling, drilling, and grinding operations. By combining the functions of a dividing head and a rotary table, it provides a compact, cost-effective solution for both horizontal and vertical indexing.
Unique Indexing Milling Fixture
A powerful, multi-use fixture that replaces both a dividing head and a rotary table. It allows you to rotate and lock your workpiece at precise angles in both horizontal and vertical positions, ensuring perfect results every time.
Unique Indexing Milling Fixture
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Indexing Milling Fixture (Horizontal & Vertical)
Code No: U 1335
Key Features
Dual-Functionality: Offers the combined capabilities of a Dividing Head (U352) and a Rotary Table (U354), providing significant cost and space savings.
Rapid Indexing: Equipped with 24 rapid indexing positions, allowing for quick, repeatable angle settings.
High-Precision Movement: Utilizes a high-quality combination of ball bearings and taper roller bearings for smooth, accurate rotation with minimal friction.
Fine Adjustment: Includes a graduated collar with a 1° least count for precise odd-degree indexing.
Optional Tail Stock: Available with a tail stock featuring a lead screw for fine-tuning the center of long workpieces.
Durable Build: All moving parts are hardened and precision-ground to ensure exceptional wear resistance and long-term accuracy, even under heavy usage
Specifications.....
| Model | Length (mm) | Width (mm) | Height (mm) | Indexing Pos. | Weight (kg) | Center Ht. (mm) | Chuck |
| IMF H/V 080 | 200 | 110 | 185 | 24 | 24 | 85 | 80mm 3-jaw |
| IMF H/V 100 | 200 | 110 | 185 | 24 | 25 | 85 | 100mm 3-jaw |
| IMF H/V 125 | 200 | 110 | 185 | 24 | 30 | 85 | 125mm chuck |
| IMF H/V 160 | 225 | 140 | 240 | 24 | 45 | 120 | 160mm chuck |
| IMF H/V 200 | 225 | 140 | 240 | 24 | 50 | 140 | 200mm chuck |
