Unique T-Bolt (IS: 2014:1996)

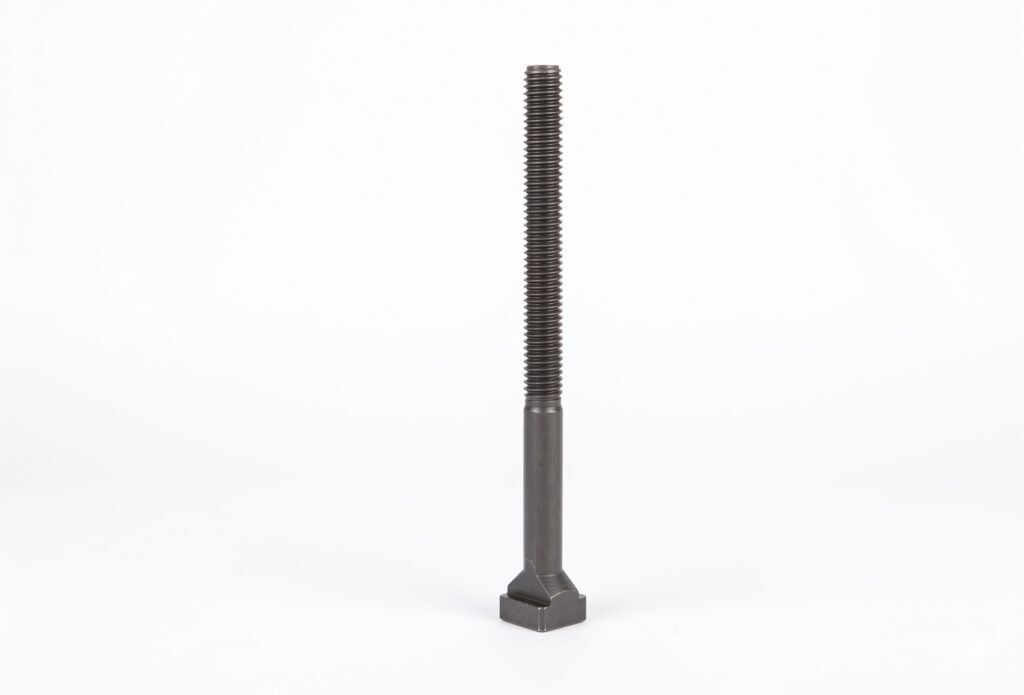

The U29 T-Bolt is a heavy-duty, high-precision clamping element engineered specifically for use in T-slotted machine tables. These bolts are the essential "anchors" for all your jig and fixture setups, providing the necessary strength to keep workpieces rock-solid during intense milling or drilling operations.
Unique T-Bolt (IS: 2014:1996)
This is your machine table’s strongest anchor. The U29 T-Bolt is built from high-strength Class 8.8 steel, meaning it can take the full force of your clamping system without bending. Whether you are using a 12mm or a 24mm T-slot, we have a length and diameter to keep your setup locked down tight.
Unique T-Bolt (IS: 2014:1996)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique T-Bolt (IS: 2014:1996)
Code No: U29
Key Features
Industrial Strength: Manufactured from highly resistant steel with a tensile strength of 80/90 kg/mm² (Class 8.8 / 8G), ensuring maximum load-bearing capacity without stretching or failure.
Precise Engineering: Fully compliant with IS: 2014:1996 standards, ensuring perfect compatibility with industry-standard T-slots.
Professional Finish: Finished with a burnished surface for improved wear resistance and a clean, workshop-ready appearance.
Extensive Range: Available in a vast array of sizes and lengths to suit any table setup, from M12 to M28 thread diameters.
Specifications.....
| T-Slot Size | Thread Size | Available Lengths (mm) |
| 12 mm | M12 | 50, 65, 80, 100, 125, 160, 200, 250 |
| 14 mm | M12 | 80, 100, 125, 160, 200, 250 |
| 16 mm | M16 | 80, 100, 125, 160, 200, 250 |
| 18 mm | M16 | 80, 100, 125, 160, 200, 250, 320 |
| 20 mm | M20 | 100, 125, 160, 200 |
| 22 mm | M20 | 100, 160, 200, 250, 320 |
| 24 mm | M24 / M28 | 100, 160, 200, 250, 320 |
