Unique U-Clamp (IS: 4293-1984 / DIN 6315-B)

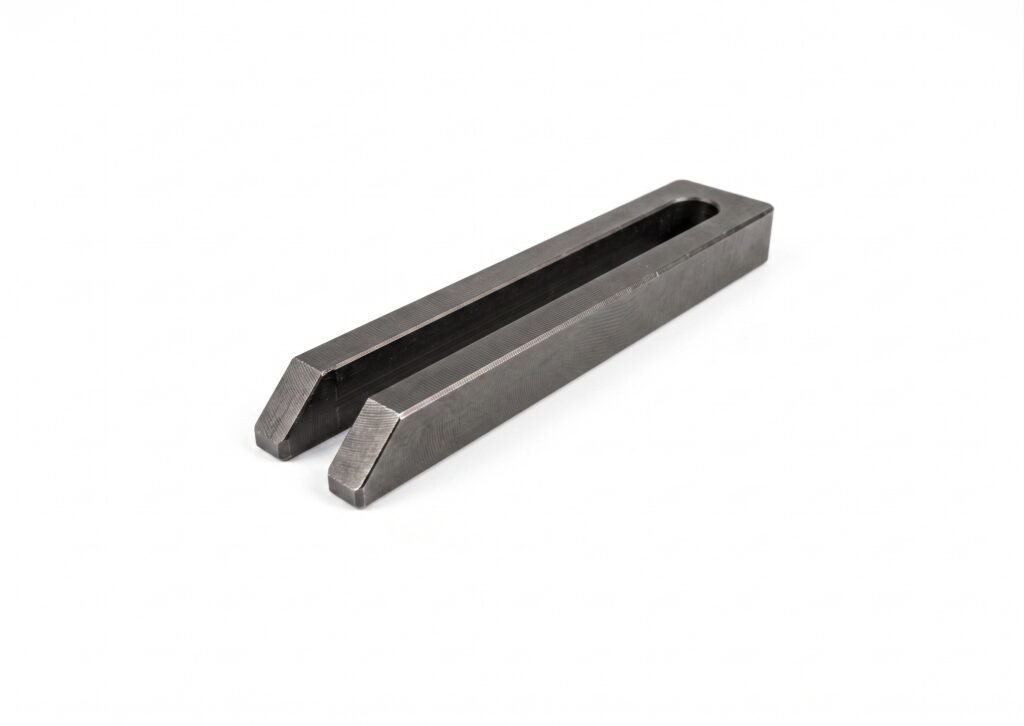

The U16 U-Clamp is a high-performance workholding component designed for rapid, secure clamping in milling, drilling, and shaping operations. Engineered according to DIN 6315-B standards, this "U" shaped clamp offers exceptional versatility for locking down workpieces of varying thicknesses by allowing the clamping stud to be positioned anywhere along the open slot.
Unique U-Clamp (IS: 4293-1984 / DIN 6315-B)
This is a "speed washer." Because of its C-shaped slot, you don't need to take the bolt off to remove your workpiece. Just loosen the nut, slide the washer out, and you’re ready to go. It’s a huge time-saver for any production fixture.
Unique U-Clamp (IS: 4293-1984 / DIN 6315-B)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique U-Clamp (IS: 4293-1984 / DIN 6315-B)
Code No: U16
Key Features
Standardized Compatibility: Manufactured in accordance with IS: 4293-1984 and DIN 6315-B specifications, ensuring reliable fit and performance across industrial machine tools.
Open-Slot Design: The “U” shape allows for quick adjustment of the clamping position without needing to fully remove the fastener, significantly reducing setup time.
Robust Industrial Construction: Built to withstand the high-torque and vibration requirements of professional machining environments.
Wide Range of Applications: Ideal for use with standard clamping studs and T-nuts to provide firm downward pressure on parts during machining.
Specifications.....
| Code | Size (Slot Width x Length) | Suitable for Screw |
| U16-1 | 14 x 160 mm | M12 |
| U16-2 | 18 x 200 mm | M16 |
| U16-3 | 22 x 250 mm | M20 |
| U16-4 | 26 x 250 mm | M24 |
