Unique Swivel Angle Table
The U333 Swivel Angle Table is an essential precision tool for machine shops and tool rooms. It is engineered to provide a stable, rigid platform for drilling, milling, and grinding at precise angles, ensuring consistent quality for complex, multi-angled components.
Unique Swivel Angle Table
A professional-grade, cast-iron swivel table that lets you tilt your workpiece to any angle between 0° and 90°. It’s built tough for precision work and features a clear scale, so you can set your angles accurately every time.
Unique Swivel Angle Table
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Swivel Angle Table

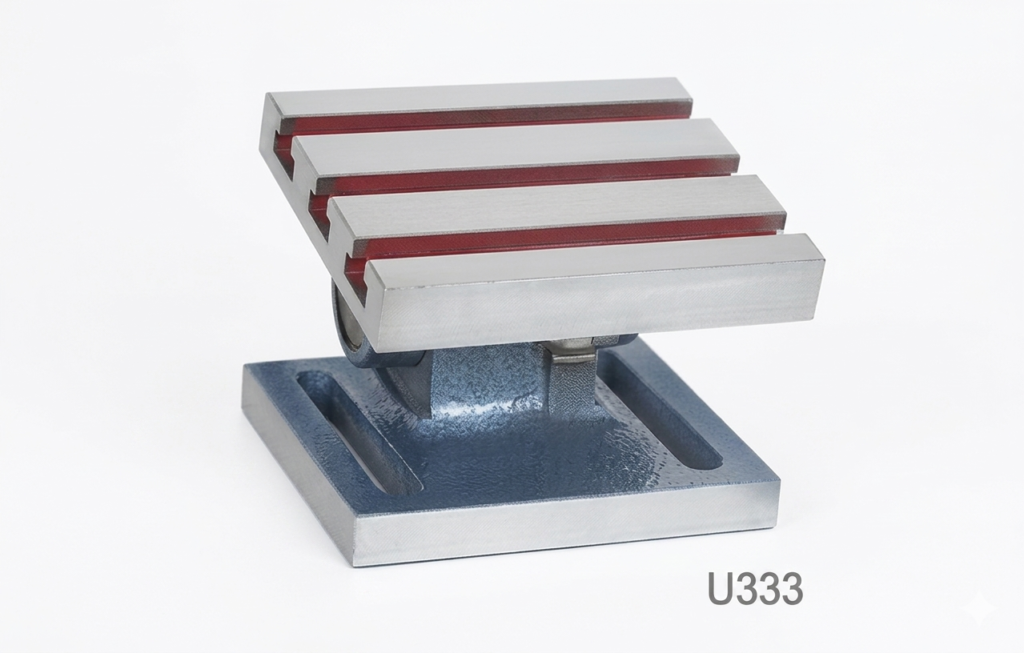

Code No: U333
Key Features
Graded Cast Iron: Constructed from high-quality graded cast iron to provide maximum structural rigidity, durability, and superior vibration dampening during machining.
Versatile Adjustment: The table can be easily and securely adjusted to any angle between 0° and 90°, making it highly adaptable for various machining requirements.
Precise Calibration: Equipped with an easy-to-read angle scale calibrated in 1° increments, allowing for high-accuracy setup and repeatable results.
Machined T-Slots: Features precision-machined T-slots, ensuring workpieces can be mounted quickly and securely to prevent movement during high-torque operations.
Specifications.....
| Specifications | 5″ x 6″ | 6″ x 8″ | 8″ x 10″ | 10″ x 12″ | 12″ x 15″ |
| Size of Table (mm) | 125 x 150 | 150 x 200 | 200 x 250 | 250 x 300 | 300 x 375 |
| Height Overall (mm) | 110 | 130 | 165 | 210 | 230 |
| T-Slot Size (mm) | 13 | 13 | 13 | 16 | 16 |
| Approx. Weight (kg) | 6.5 | 11.5 | 21 | 42 | 70 |
