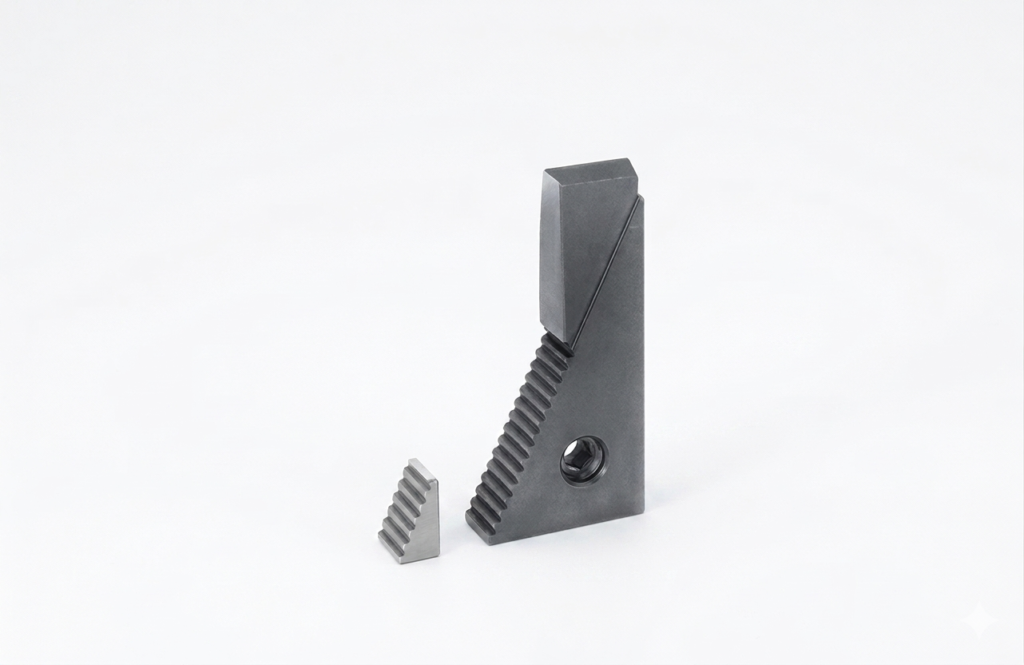

Universal Step Blocks
The U09 Universal Step Blocks provide a robust, adjustable support system for workholding setups on milling, drilling, and shaping machines. Designed to provide precise, parallel support at variable heights, these blocks are a must-have for elevating workpieces safely and securely on a machine table.
Universal Step Blocks
These are the industry-standard "building blocks" for your clamping setup. You can stack them or flip them to get the exact height you need to support your part. Because they lock together securely and are ground parallel, they keep your workpiece perfectly flat and level, no matter the height required.
Universal Step Blocks
- Phone:+1 (859) 254-6589
- Email:info@example.com
Universal Step Blocks
Code No: U09
Key Features
Precision Parallelism: Engineered to maintain accurate parallelism in any stackable combination, ensuring the workpiece remains perfectly level throughout the clamping process.
Positive Locking: Designed to interlock securely when stacked, preventing the support structure from shifting or collapsing under load.
Flexible Support: Allows for rapid adjustment to the required height, making it ideal for setups involving workpieces of varying sizes or heights.
Heavy-Duty Construction: Manufactured from hardened and tempered steel (80/90 kg/mm²) to ensure long-term durability and resistance to deformation under extreme clamping pressure.
Durable Finish: Coated in either a Black Oxidized or Powder Coated finish for superior corrosion resistance and a professional industrial appearance.
Specifications.....
| Code | A (mm) | B (mm) | C (mm) | Max. Height | Min. Height |
| U09-1 | 33 | 24 | 30 | 53 mm | 22 mm |
| U09-2 | 66 | 40 | 30 | 105 mm | 39 mm |
| U09-3 | 131 | 73 | 30 | 208 mm | 71 mm |
