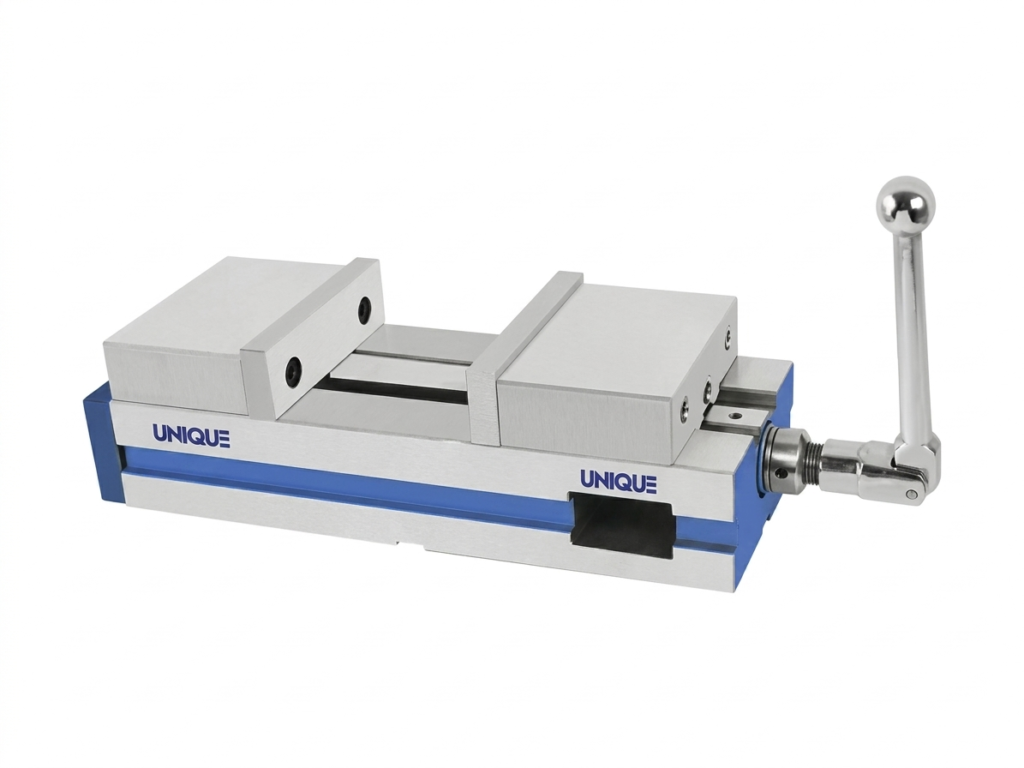

Unique Angle Lock Self-Centering Vise
The U350 SCV is a high-precision, self-centering vise engineered for machining tasks that require absolute symmetry and reliable workholding. With its versatile mounting capabilities and robust FCD 60 ductile iron construction, it ensures precise, repeatable centering for high-accuracy production environments.
Unique Angle Lock Self-Centering Vise
This vise automatically centers your workpiece every time you tighten it, saving you setup time and ensuring perfect symmetry. With its hardened iron body and "pull-down" jaw action, it keeps your work rock-solid and perfectly positioned for any high-precision job.
Unique Angle Lock Self-Centering Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Angle Lock Self-Centering Vise
Code No: U350 SCV
Key Features
Self-Centering Precision: Engineered to hold workpieces perfectly in the center, ensuring symmetrical machining with an accuracy of ± 0.02 mm.
Flexible Mounting: The vise body is designed for multiple orientations; it can be clamped in the standard position or on either of its two side faces.
FCD 60 Construction: Cast from high-strength FCD 60 ductile iron with flame-hardened guideways to provide maximum wear resistance and structural rigidity.
Anti-Lift Technology: Built as an anti-lift, “hammer-less” vise to ensure the workpiece is pulled down onto the bed for ultra-stable, vibration-free clamping.
Precision Ground Surfaces: Both the top and bottom of the vise are precision ground, facilitating perfect alignment regardless of the mounting configuration.
Smooth Operation: Equipped with a thrust bearing to minimize friction, ensuring the clamping motion is consistent and requires minimal operator effort.
Production Readiness: Features chip clearance holes to prevent dead pockets during machining and is supplied with a stopper for fast, repeatable batch production.
Specifications.....

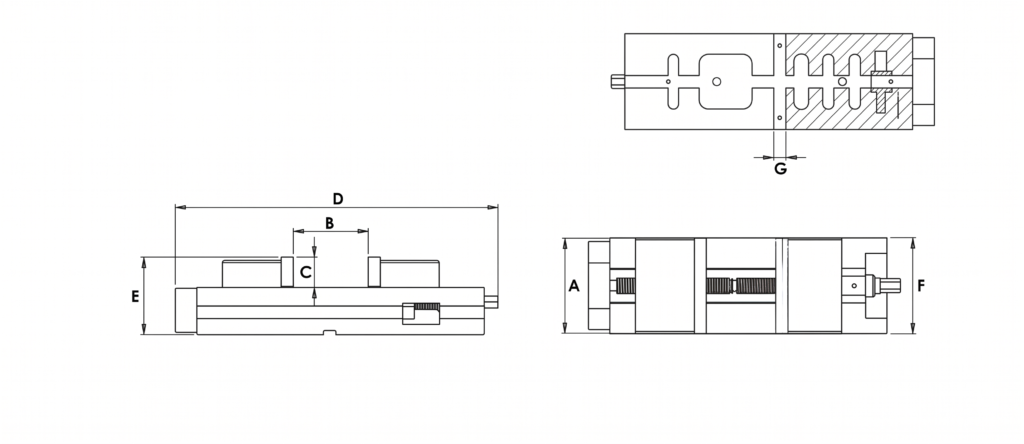

| Jaw Width | Opening | Base Length | Height | Bolt/Slot Size | Weight | Clamping Force |
| 150 mm | 225 mm | 520 mm | 125 mm | 20 mm | 34 kg | 2500 kgf |
Squareness Accuracy: ± 0.02 mm / 100 mm
Centering Accuracy: ± 0.02 mm / 100 mm
