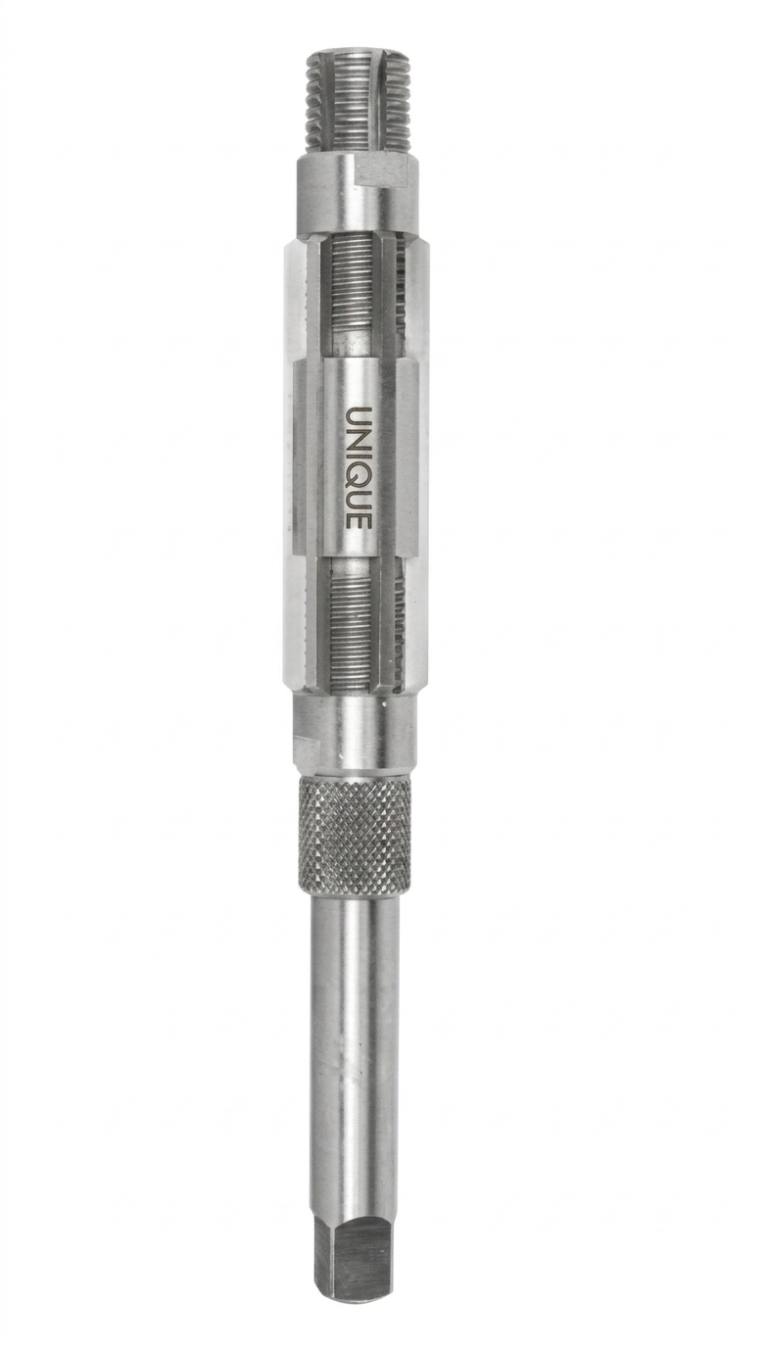

Unique HSS Adjustable Hand Reamer
The U372 Adjustable Hand Reamer is a high-precision tool engineered for enlarging or finishing existing holes to specific, non-standard dimensions. By utilizing adjustable HSS (High-Speed Steel) blades, this reamer provides exceptional versatility, allowing the machinist to achieve precise fits that fixed-diameter reamers cannot reach.
Unique HSS Adjustable Hand Reamer
This is a "multi-size" finishing tool. Instead of buying a dozen different reamers for different hole sizes, you can adjust the blades on this one tool to hit the exact size you need. It's built from high-speed steel so it stays sharp, and it's perfect for fine-tuning holes to get that "perfect fit."
Unique HSS Adjustable Hand Reamer
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique HSS Adjustable Hand Reamer
Code No: U372
Key Features
Adjustable Diameter: The blades can be expanded or contracted within a specific range, enabling the tool to be used for multiple hole sizes and to compensate for tool wear.
HSS Construction: Manufactured from high-quality High-Speed Steel, ensuring superior edge retention, heat resistance, and long tool life.
Precision Finishing: Designed for manual operation to provide a smooth, high-quality surface finish with accurate sizing.
Comprehensive Range: Available in a wide variety of sizes, from 6.35mm up to 100mm, covering almost any application requirement.
Specifications.....
| Symbol | Blades | Range (mm) | Range (Inches) |
| HV | 4 | 6.35 – 7.15 | 1/4 – 9/32 |
| HW | 4 | 7.15 – 7.95 | 9/32 – 5/16 |
| HZ | 4 | 7.95 – 8.7 | 5/16 – 11/32 |
| HY | 4 | 8.7 – 9.5 | 11/32 – 3/8 |
| H1 | 6 | 9.5 – 10.25 | 3/8 – 13/32 |
| H2 | 6 | 10.25 – 11 | 13/32 – 7/16 |
| H3 | 6 | 11 – 12 | 7/16 – 15/32 |
| H4 | 6 | 12 – 13.5 | 15/32 – 17/32 |
| H5 | 6 | 13.5 – 15 | 17/32 – 19/32 |
| H6 | 6 | 15 – 16.75 | 19/32 – 21/32 |
| H7 | 6 | 16.75 – 18.25 | 21/32 – 23/32 |
| H8 | 6 | 18.25 – 19.75 | 23/32 – 25/32 |
| H9 | 6 | 19.75 – 21.5 | 25/32 – 15/16 |
| H10 | 6 | 21.5 – 24 | 15/16 – 1.1/16 |
| H11 | 6 | 24 – 27 | 1.1/16 – 1.3/16 |
| H12 | 6 | 27 – 30 | 1.3/16 – 1.11/32 |
| H13 | 6 | 30 – 34 | 1.11/32 – 1.1/2 |
| H14 | 6 | 34 – 38 | 1.1/2 – 1.13/16 |
| H15 | 6 | 38 – 46 | 1.13/16 – 2.7/32 |
| H16 | 6 | 46 – 56 | 2.7/32 – 2.3/4 |
| H17 | 6 | 56 – 70 | 2.3/4 – 3.11/32 |
| H18 | 6 | 70 – 85 | 3.11/32 – 4 |
| H19 | 6 | 85 – 100 | – |
