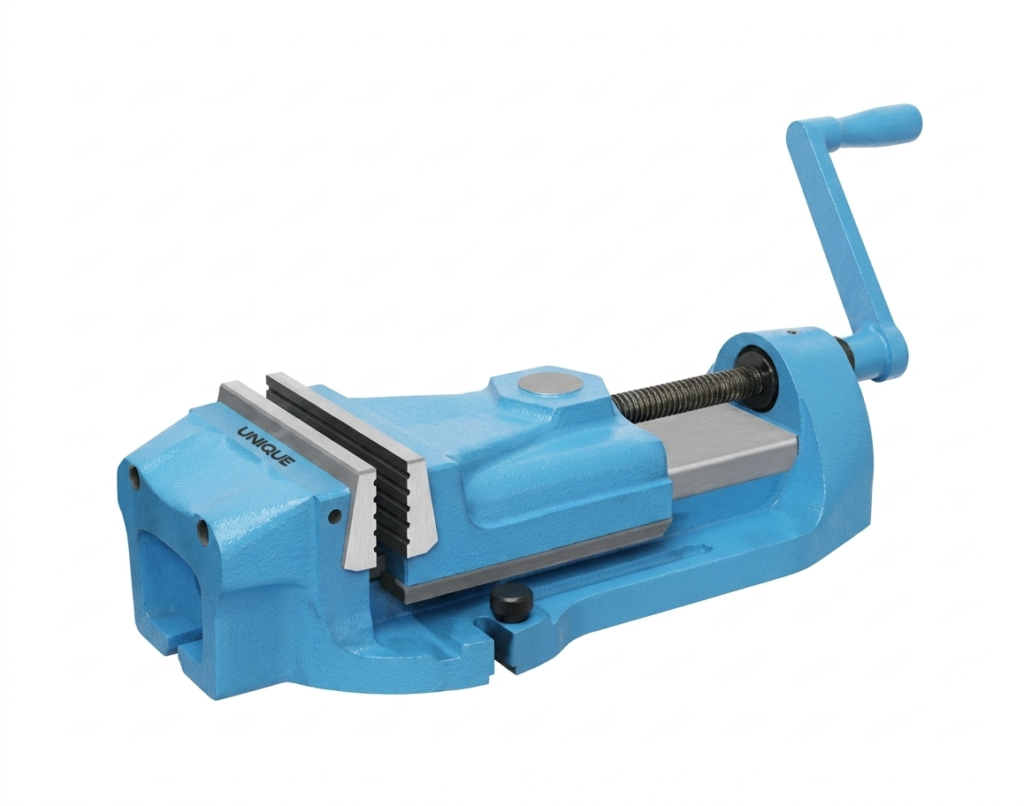

Unique Heavy-Duty Precision Machine Vise
The U3210 is a premium heavy-duty precision vise engineered for the most demanding machining environments. Constructed with high-grade FCD 60 ductile iron and flame-hardened guideways, this vise is built to maintain exceptional precision even under extreme cutting pressures.
Unique Heavy-Duty Precision Machine Vise
A true workhorse of a vise. With its anti-lift jaw design and rock-solid FCD 60 iron body, it’s built to hold your work perfectly still under even the most intense milling conditions.
Unique Heavy-Duty Precision Machine Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Heavy-Duty Precision Machine Vise
Code No: U3210
Key Features
FCD 60 Construction: The body is cast from high-strength FCD 60 ductile iron, paired with flame-hardened guideways to ensure superior wear resistance and extended service life.
Anti-Lift Clamping: Both jaw plates feature a specialized pull-down angle design, which effectively eliminates workpiece lift during high-torque operations.
High-Precision Accuracy: Guaranteed squareness accuracy within ±0.02 mm / 100 mm, ensuring reliable results for precision components.
Enhanced Rigidity: The spindle design is positioned closer to the workpiece compared to standard milling vises, resulting in more stable, rigid, and reliable clamping force.
Hardened Jaws: Jaw plates are manufactured from hardened and ground tool steel, ensuring durability and a secure grip on every job.

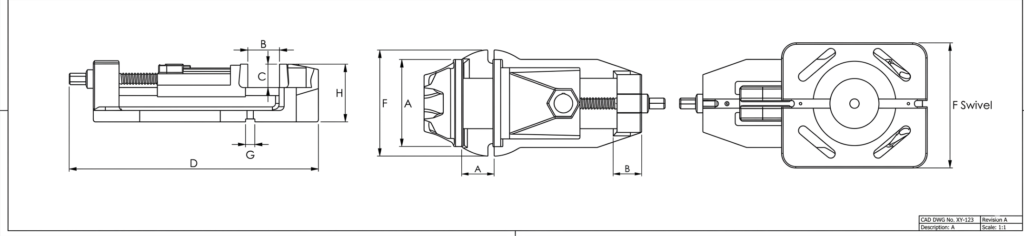

Specifications.....
| Jaw Width | Opening | A | B | C | D | E (Fixed) | E (Swivel) | F (Fixed) | F (Swivel) | G | Wt. (Fixed) | Clamping Force |
| 165 | 150 | 56 | 550 | 135 | 175 | 230 | 270 | 230 | 270 | 20 | 43 kg | 2500 kg |
