Adjustable Height Plates

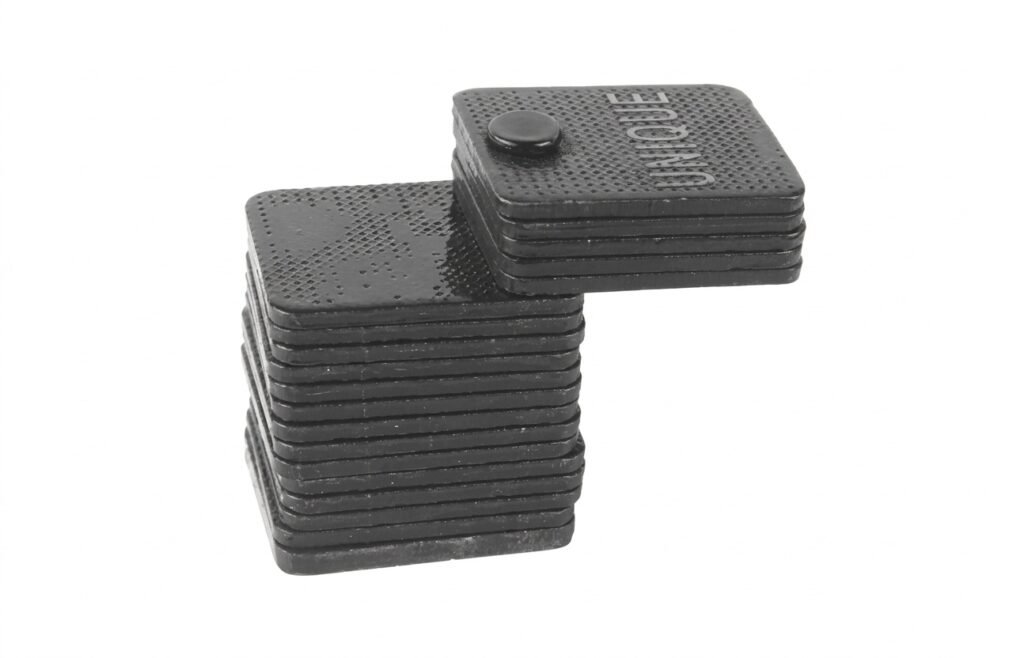

The U10 Adjustable Height Plates are a versatile, modular support system designed for professional machining environments. These plates allow for the instantaneous achievement of precise supporting heights, making them an indispensable tool for leveling and supporting workpieces on drill presses, milling machines, and other industrial equipment.
Adjustable Height Plates
These are essentially "adjustable shims" for your machine setup. You can use them individually or stack them to reach the exact height you need to support your workpiece. They are compact, made of high-quality carbon steel, and are designed to make setting up your work faster and much more reliable.
Adjustable Height Plates
- Phone:+1 (859) 254-6589
- Email:info@example.com
Adjustable Height Plates
Code No: U10
Key Features
Instant Adjustability: Provides rapid height changes, saving valuable setup time. The system is designed for quick and intuitive manipulation to meet the exact requirements of the job.
Stackable Design: If the standard height is insufficient, these plates can be easily stacked to achieve the necessary clearance, offering a highly flexible support solution.
Compact & Reliable: A safe and compact system that ensures stability for your workpiece without the bulk of traditional, non-adjustable supports.
Durable Construction: Manufactured from robust Carbon Steel and finished with a Black Penetrated coating for maximum longevity and corrosion resistance.
Specifications.....
| Code | Plate Thickness (mm) | H (mm) | B (mm) | L (mm) | Weight (kg) |
| U10-1 | 2 | 25 | 35 | 50 | 0.350 |
| U10-2 | 2 | 50 | 35 | 50 | 0.650 |
| U10-3 | 2 | 75 | 35 | 50 | 1.000 |
| U10-4 | 2 | 100 | 35 | 50 | 1.300 |
| U10-5 | 2 | 125 | 35 | 50 | 1.600 |
| U10-6 | 2 | 150 | 35 | 50 | 1.900 |
| U10-7 | 4 | 25 | 50 | 60 | 0.600 |
| U10-8 | 4 | 50 | 50 | 60 | 1.100 |
| U10-9 | 4 | 75 | 50 | 60 | 1.600 |
| U10-10 | 4 | 100 | 50 | 60 | 2.100 |
| U10-12 | 4 | 125 | 50 | 60 | 2.600 |
| U10-13 | 4 | 150 | 50 | 60 | 3.100 |
| U10-14 | 4 | 200 | 50 | 60 | 3.600 |
