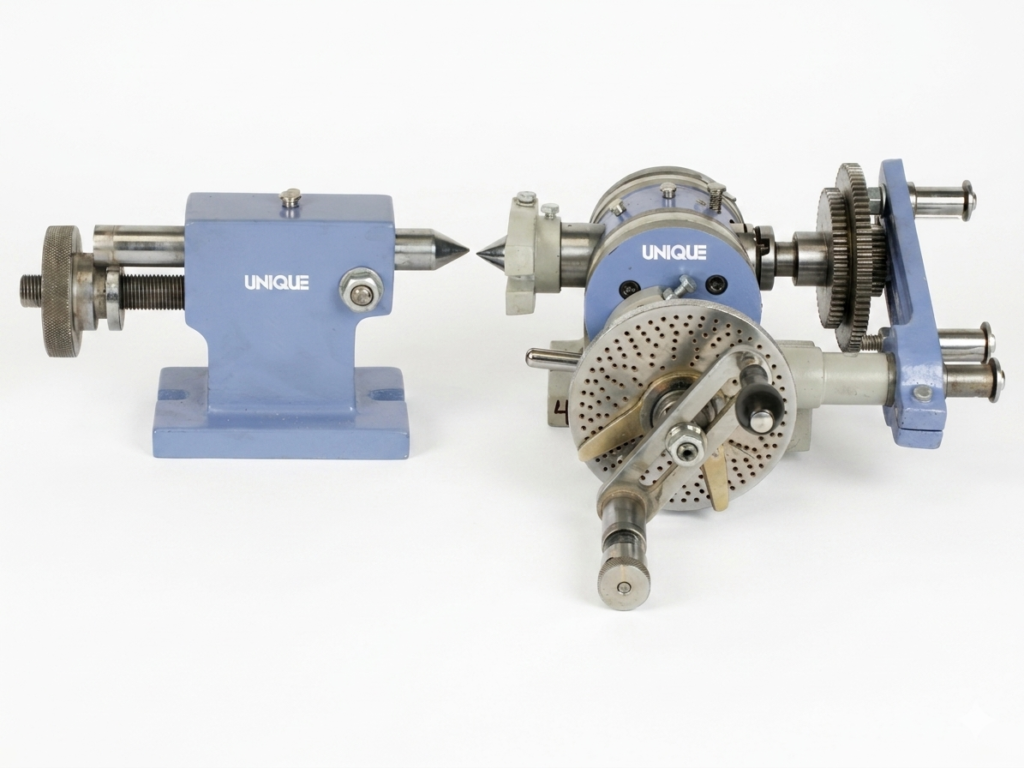

The U351 Dividing Head is a high-precision instrument engineered for both tool room applications and high-volume production. It is a critical component for universal milling machines, enabling complex machining tasks such as indirect and differential indexing, as well as spiral and cam milling.
Unique Dividing Head
A precision dividing head built for heavy-duty production and tool room work. Whether you are milling gears, cams, or complex spirals, this tool offers the accuracy and versatility you need to get the job done right
Unique Dividing Head
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Dividing Head
Code No: U351
Key Features
Versatile Functionality: Ideally suited for complex operations including differential indexing and the milling of cams and spirals.
Superior Craftsmanship: Manufactured using selected high-quality materials to ensure long-term stability and consistent accuracy.
Precision Engineering: The 1:40 worm gear ratio provides the precise, controlled rotation required for high-accuracy indexing.
Comprehensive Gear Set: Includes an extensive range of change gears, allowing for a wide variety of indexing ratios and spiral leads
Specifications.....
| Specifications | 4 ½” | 5 ½” | 6 ½” | 7 ½” |
| Gear Worm Ratio | 1:40 | 1:40 | 1:40 | 1:40 |
| Center Height (mm) | 115 | 142 | 165 | 190 |
| Spindle Bore (mm) | 20 | 32 | 38 | 50 |
| Overall Height (Vertical mm) | 180 | 230 | 260 | 270 |
| Width of Base (mm) | 115 | 150 | 170 | 180 |
| Approx. Weight (kg) | 40 | 65 | 92 | 98 |
Indexing Plates & Gear Sets
| Plate Details | 4 ½” & 5 ½” | 6 ½” & 7 ½” |
| Side A | 11, 16, 19, 25, 37, 41, 49 | 7, 13, 16, 19, 20, 23, 27, 31, 33, 39, 47, 53 |
| Side B | 13, 17, 18, 27, 33, 43, 51 | 9, 11, 15, 17, 18, 21, 25, 29, 37, 41, 49, 51 |
| Set of Gears | 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100 teeth | 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100 teeth |
| Gear Module | 14 D.P. | 12 D.P. |
