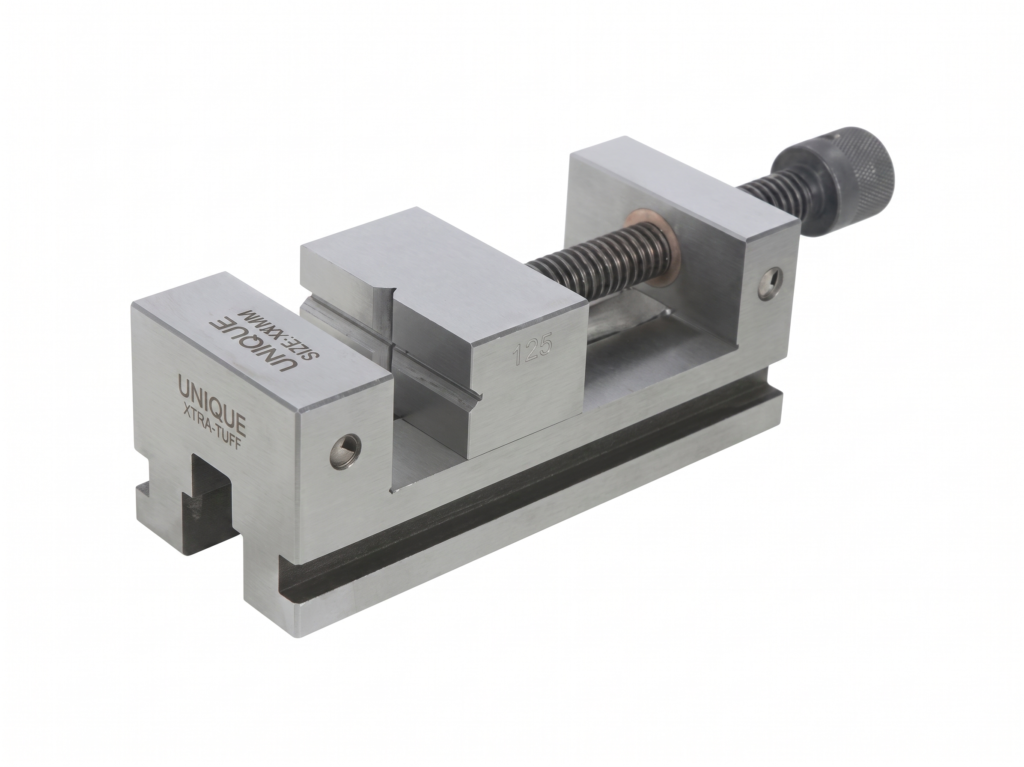

Unique Precision Grinding Vise
The U422 Precision Grinding Vise is an ultra-high-accuracy workholding tool designed specifically for tool rooms, surface grinding, and precision inspection tasks. Built to maintain exceptionally tight tolerances, it provides the stability and squareness required for the most delicate machining operations.
Unique Precision Grinding Vise
This is a high-precision tool steel vise designed to be as flat, square, and accurate as possible. It is perfect for surface grinding and inspection work where even the smallest deviation matters, ensuring your parts are ground perfectly every time
Unique Precision Grinding Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision Grinding Vise
Code No: U422
Key Features
Premium Material Construction: Both the vise body and jaws are manufactured from high-quality Tool Steel.
Heat-Treated for Stability: Fully hardened and tempered to ensure the vise retains its shape and precision over an extended service life.
Precision Ground: All surfaces are precision ground to provide an exceptionally smooth and accurate finish.
Superior Tolerance: Guaranteed parallelism and squareness on all sides within ± 0.01 mm / 100 mm, making it ideal for high-precision finishing.
Low-Profile Design: Engineered for maximum stability during surface grinding and precision milling applications.
Specifications.....

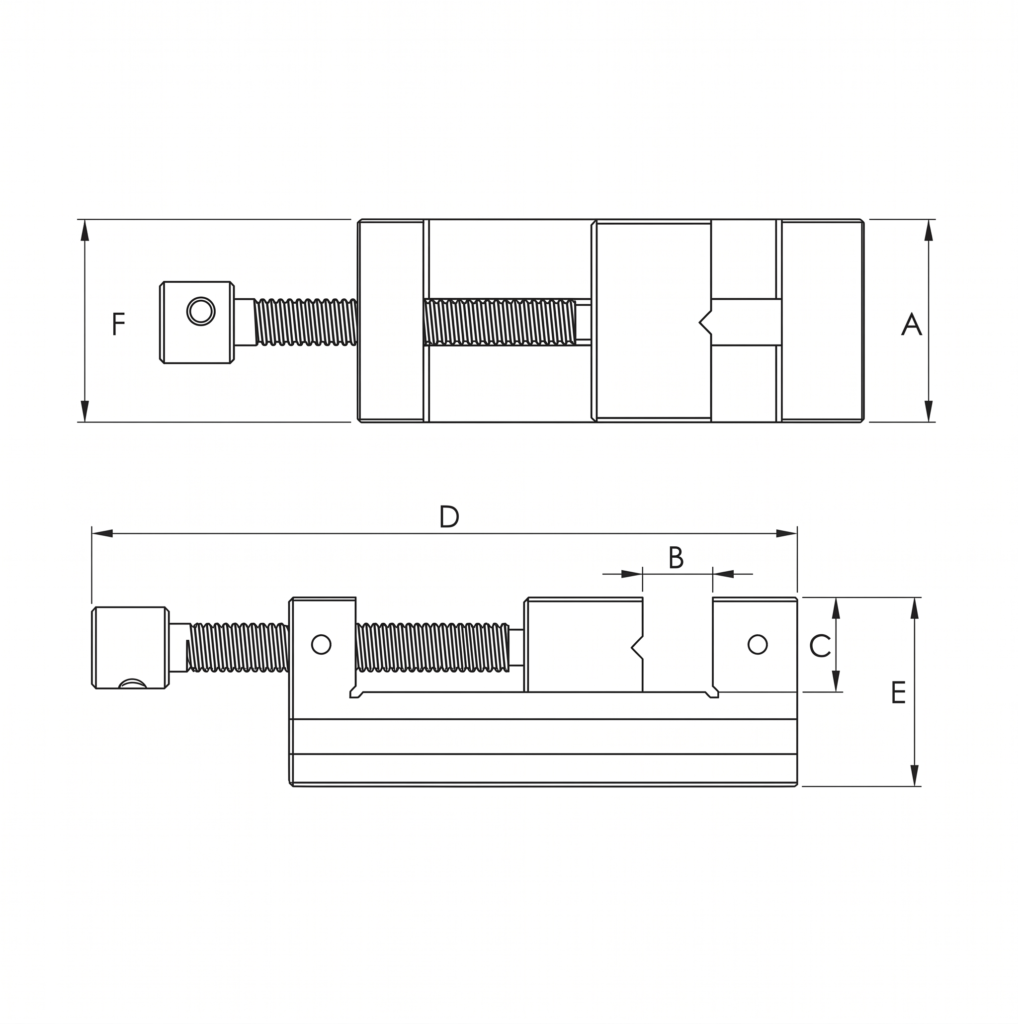

| Jaw Width (mm) | Opening (mm) | A | B | C | D | F | Weight (kg) |
| 50 | 55 | 25 | 75 | 90 | 42 | 160 | 5.2 |
| 75 | 94 | 104 | 45 | 285 | 90 | 94 | 9.7 |
| 150 | 150 | 50 | 360 | 96 | 150 | – | 20.6 |
