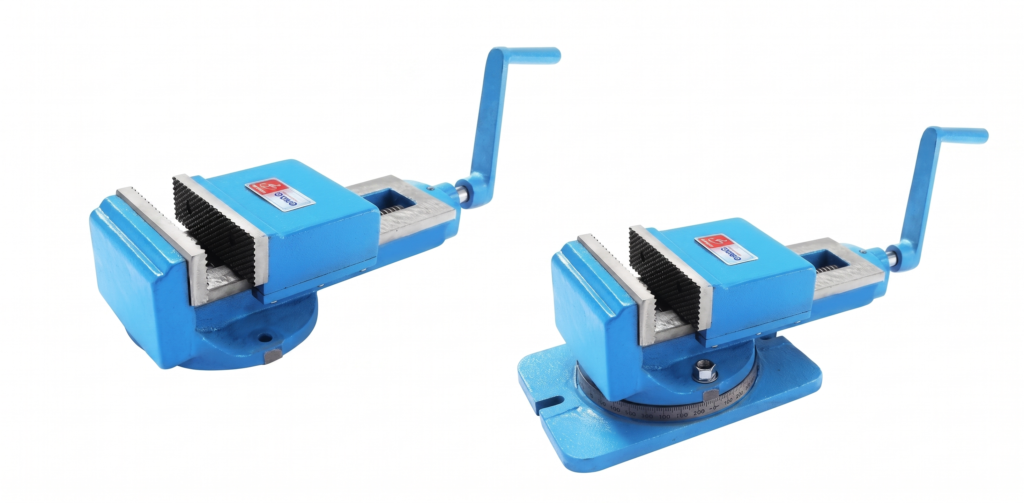

Unique Shaper Vise (with Optional Swivel Base)
The U311 Shaper Vise is a heavy-duty powerhouse specifically engineered for shaper machines, planners, and other high-impact machinery. Designed with an extra-wide clamping range and a high-profile body, it is the ideal solution for securing tall or oversized workpieces during aggressive machining operations.
Unique Shaper Vise (with Optional Swivel Base)
A true masterpiece of industrial reliability that transforms any workshop into a professional-grade workstation.
Unique Shaper Vise (with Optional Swivel Base)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Shaper Vise (with Optional Swivel Base)
Code No: U311
Key Features
Extra-Tough Build: Sturdily constructed from high-quality close-grain casting to absorb heavy vibrations from shaper and planner strokes.
High-Capacity Design: Engineered with a taller body and wider jaw opening to accommodate large and bulky industrial workpieces.
Precision Grip: Jaws are crafted from special steel, precisely ground and serrated to ensure a non-slip, firm grip on the heaviest jobs.
High-Tensile Spindle: Features a robust square-thread screw made of high-tensile steel for maximum clamping force and durability.
Modular 360° Swivel Base: The base is indexed to 360° for precise angular work. It is fully removable, allowing the vise to be used as a stationary unit to save height when needed.
Professional Handle: Includes an unbreakable steel crank handle with a spring-loaded mechanism for positive engagement and ease of use.
Specifications.....
| Specifications (mm) | 6″ (150) | 8″ (200) | 10″ (250) | 12″ (300) | 14″ (350) |
| Jaw Width (A) | 150 | 200 | 250 | 300 | 350 |
| Opening (B) | 200 | 250 | 300 | 360 | 475 |
| Jaw Depth (C) | 50 | 60 | 75 | 75 | 105 |
| Length Overall (D – Fixed) | 530 | 635 | 710 | 800 | 850 |
| Length Overall (DS – Swivel) | 600 | 700 | 770 | 860 | 910 |
| Width Overall (E – Fixed) | 200 | 280 | 320 | 360 | 460 |
| Width Overall (ES – Swivel) | 220 | 290 | 320 | 380 | 480 |
| Height Overall (F – Fixed) | 120 | 130 | 160 | 165 | 190 |
| Height Overall (FS – Swivel) | 155 | 170 | 200 | 200 | 225 |
| Approx. Weight (Fixed – kg) | 32 | 47 | 79 | 102 | 145 |
| Approx. Weight (Swivel – kg) | 42 | 64 | 105 | 145 | 200 |
