Unique Universal Dividing Head
The U352 Universal Dividing Head is designed for precision indexing, allowing for accurate division at any angle. Whether used for tool room tasks or specialized production, its high-rigidity design ensures performance stability during complex machining operations.
Unique Dividing Head
A precision dividing head built for heavy-duty production and tool room work. Whether you are milling gears, cams, or complex spirals, this tool offers the accuracy and versatility you need to get the job done right
Unique Dividing Head
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Dividing Head

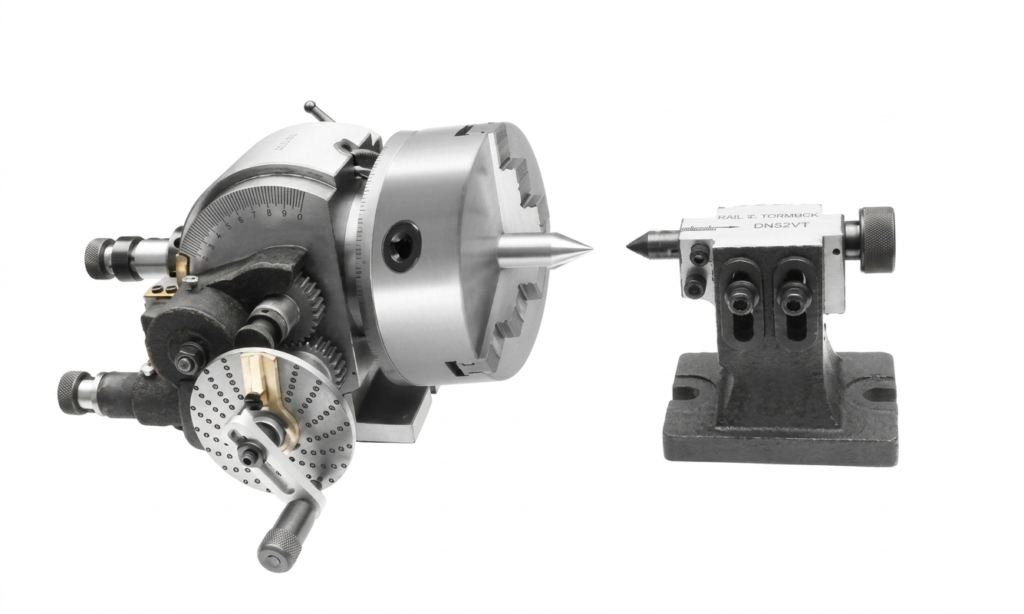

Code No: U351
Key Features
High-Precision Indexing: Capable of dividing at any angle required, supported by included indexing plates.
40:1 Gear Ratio: The precision worm and worm gear configuration provides a standard 40:1 ratio for controlled, accurate rotations.
Rigid Spindle Construction: Features a hardened and ground spindle supported by taper roller bearings, ensuring maximum stiffness and minimal runout.
Swivel Head Versatility: The head can be locked securely at any angle from 10° below the horizontal to 90° vertical, facilitating multi-axis machining.
Hardened Components: Both the worm and the spindle are hardened and ground for exceptional wear resistance and long-term durability.
Specifications.....
| Specifications | 150 mm | 200 mm |
| A (Length) | 359 mm | 359 mm |
| B (Length) | 340 mm | 340 mm |
| H (Height) | 235 mm | 235 mm |
| a (Base Length) | 212 mm | 212 mm |
| b (Base Width) | 135 mm | 135 mm |
| g (Slot/Bolt Size) | 16 mm | 16 mm |
| h (Center Height) | 134 mm | 134 mm |
| Taper of Center | MT-4 | MT-4 |
| Spindle Through Hole | 25 mm | 25 mm |
