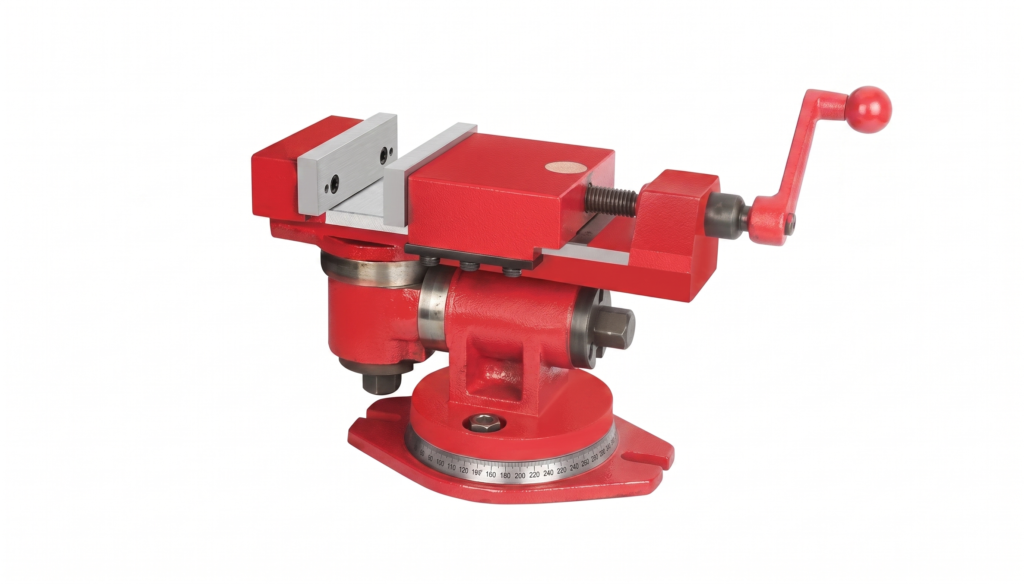

Unique Universal Machine Vice
The U313 Universal Machine Vice is a masterclass in precision engineering, featuring an FCD 60 body and multi-axis rotation capabilities that allow for effortless setup of complex compound angles on grinding and milling machines.
Unique Universal Machine Vice
A high-precision, heavy-duty universal vice that tilts and rotates in every direction, giving you total control over the most intricate machining angles.
Unique Universal Machine Vice
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Universal Machine Vice
Code No: U313
Key Features
High-Grade FCD 60 Body: Built with premium ductile iron (FCD 60) for superior strength, high vibration absorption, and long-term durability.
Compound Angle Locking: All swivel movements feature positive locking, allowing workpieces to be secured at any complex compound angle.

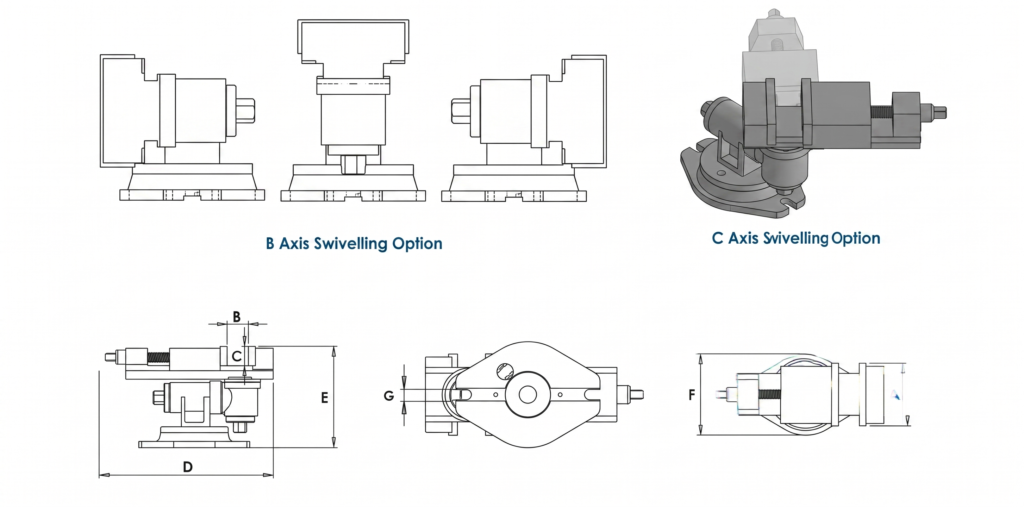

3-Axis Versatility:
B-Axis: Vice bed tilts from -90° to +90°.
C-Axis: Top vice bed rotates a full 360°.
Swivel Base: Fully graduated 360° for precise layout.
Precision Jaws: Accurately ground jaws made of special steel ensure a firm, non-slip grip for high-tolerance work.
Unbreakable Handle: The steel crank handle features a spring-loaded ball mechanism for a secure, positive grip during operation.
Easy Alignment: Longitudinal slots in the swivel base allow for quick and accurate mounting on the machine table.
Specifications.....
| Specifications (mm) | 2″ (50mm) | 3″ (75mm) | 4″ (100mm) | 6″ (150mm) |
| Width of Jaws | 50 | 75 | 100 | 150 |
| Opening of Jaws | 50 | 75 | 100 | 115 |
| Depth of Jaws | 25 | 30 | 32 | 40 |
| Length Overall | 168 | 240 | 345 | 395 |
| Width Overall | 140 | 190 | 175 | 225 |
| Height Overall | 104 | 145 | 135 | 220 |
| Slot Size | 12 | 12 | 14 | 16 |
| Approx. Weight (kg) | 4.3 | 12 | 12 | 25 |
