Strap Clamp (IS: 4292-1984 / DIN 6314)

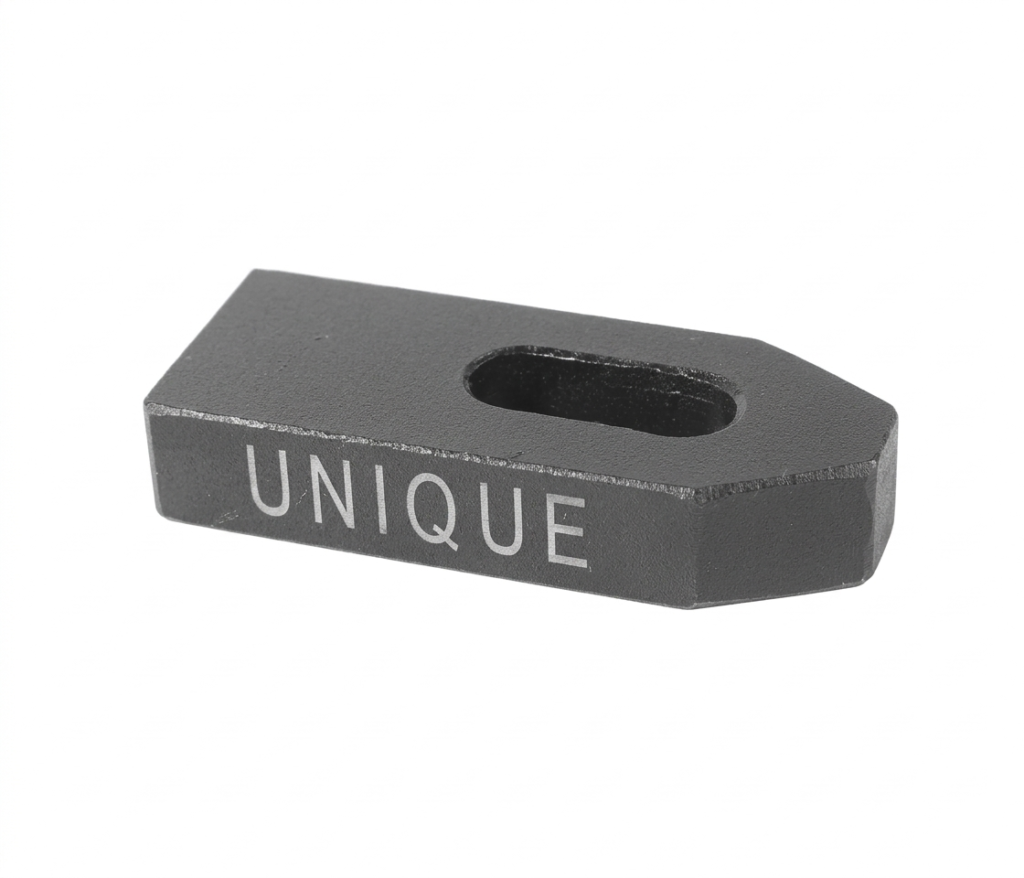

The U14 Strap Clamp is a quintessential workholding tool used in virtually every professional machine shop. Engineered to be both simple and effective, this clamp is designed to exert downward pressure on a workpiece to hold it firmly against the machine table during milling, drilling, or other machining operations.
Strap Clamp (IS: 4292-1984 / DIN 6314)
This is the most common tool for holding your parts down. It works like a heavy-duty lever—you place it over your workpiece, and when you tighten the nut on the stud, it presses the strap down to lock your part in place. It's built to last and is the backbone of any safe machine setup
Strap Clamp (IS: 4292-1984 / DIN 6314)
- Phone:+1 (859) 254-6589
- Email:info@example.com
Strap Clamp (IS: 4292-1984 / DIN 6314)
Code No: U14
Key Features
Universal Application: Designed for versatility, these clamps can be used across a wide variety of machine tools to secure workpieces of different shapes and sizes.
Industrial Construction: Manufactured from hardened and tempered steel (80/90 kg/mm²) to ensure they can handle high-tension clamping without bending or fatigue.
Durable Finish: Coated in either a Black Oxidized or Powder Coated finish, providing excellent resistance to the harsh, coolant-heavy environment of a workshop.
Standardized Design: Fully compliant with IS: 4292-1984 and DIN 6314 standards, ensuring reliable performance and integration with other standard clamping hardware
Specifications.....
| Code | Slot Width x Length (mm) | A (mm) | B (mm) | Suitable for Screw |
| U14-1 | 9 x 60 | 12 | 25 | M8 |
| U14-2 | 11 x 80 | 15 | 30 | M10 |
| U14-3 | 14 x 100 | 20 | 40 | M12 |
| U14-4 | 14 x 125 | 20 | 40 | M12 |
| U14-4A | 14 x 125 | 20 | 40 | M14 |
| U14-5 | 18 x 125 | 25 | 50 | M16 |
| U14-6 | 18 x 160 | 25 | 50 | M16 |
| U14-7 | 22 x 160 | 30 | 60 | M20 |
| U14-8 | 22 x 200 | 30 | 60 | M20 |
| U14-9 | 26 x 200 | 30 | 60 | M24 |
| U14-10 | 26 x 250 | 35 | 70 | M24 |
| U14-11 | 30 x 250 | 40 | 70 | M30 |
