T-Slot Nut (IS: 2015-1977 / DIN 508)

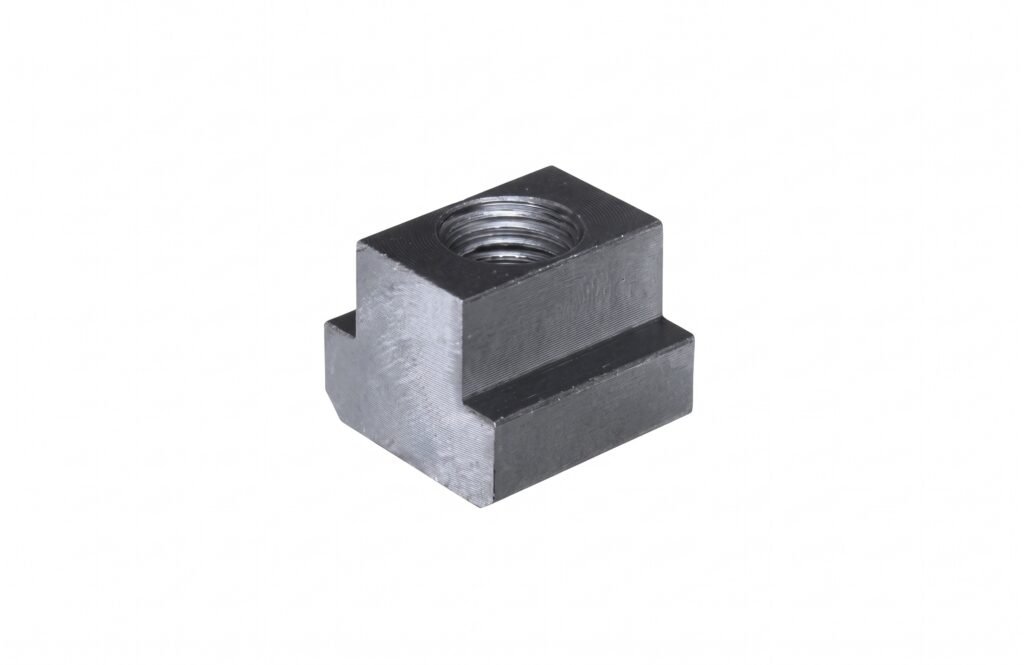

The U23 T-Slot Nut is an essential workholding component designed to provide a secure anchor point within the T-slots of machine tool tables. Engineered for maximum compatibility and strength, these nuts are the foundation for building rigid jigs, fixtures, and hydraulic clamping setups.
C-Washer (IS: 4291: 1996)
This is the "anchor" for your machine table. These T-slot nuts slide into your table's slots to provide a strong, steel-threaded base for your clamping studs. Made from hardened steel to match international DIN 508 standards, they are the most reliable way to bolt down your fixtures.
C-Washer (IS: 4291: 1996)
- Phone:+1 (859) 254-6589
- Email:info@example.com
T-Slot Nut (IS: 2015-1977 / DIN 508)
Code No: U23
Key Features
Universal Compatibility: Designed in strict accordance with the DIN 508 standard, ensuring they fit perfectly into standard machine table T-slots.
Heavy-Duty Strength: Manufactured from hardened and tempered steel (Class 8.8 / 8G) with a tensile strength of 80/90 kg/mm², providing reliable performance under heavy clamping loads.
Professional Finish: Burnished surface finish for enhanced wear resistance and a clean, industrial appearance.
Versatile Application: Ideal for secure mounting of studs, jigs, fixtures, hydraulic elements, and other workholding adapters.
Specifications.....
| Code | Thread | Slot (mm) | A (mm) | B (mm) | C (mm) |
| U23-1 | M6 | 8 | 13 | 10 | 5 |
| U23-2 | M8 | 10 | 15 | 12 | 6 |
| U23-3 | M10 | 12 | 18 | 14 | 7 |
| U23-3A | M10 | 14 | 22 | 16 | 8 |
| U23-4 | M12 | 14 | 22 | 16 | 8 |
| U23-5 | M12 | 16 | 25 | 18 | 9 |
| U23-6 | M12 | 18 | 28 | 20 | 10 |
| U23-7 | M16 | 18 | 28 | 20 | 10 |
| U23-8 | M16 | 20 | 32 | 24 | 12 |
| U23-9 | M16 | 22 | 35 | 28 | 14 |
| U23-10 | M20 | 22 | 35 | 28 | 14 |
| U23-11 | M20 | 24 | 40 | 32 | 16 |
| U23-12 | M24 | 28 | 44 | 36 | 18 |
