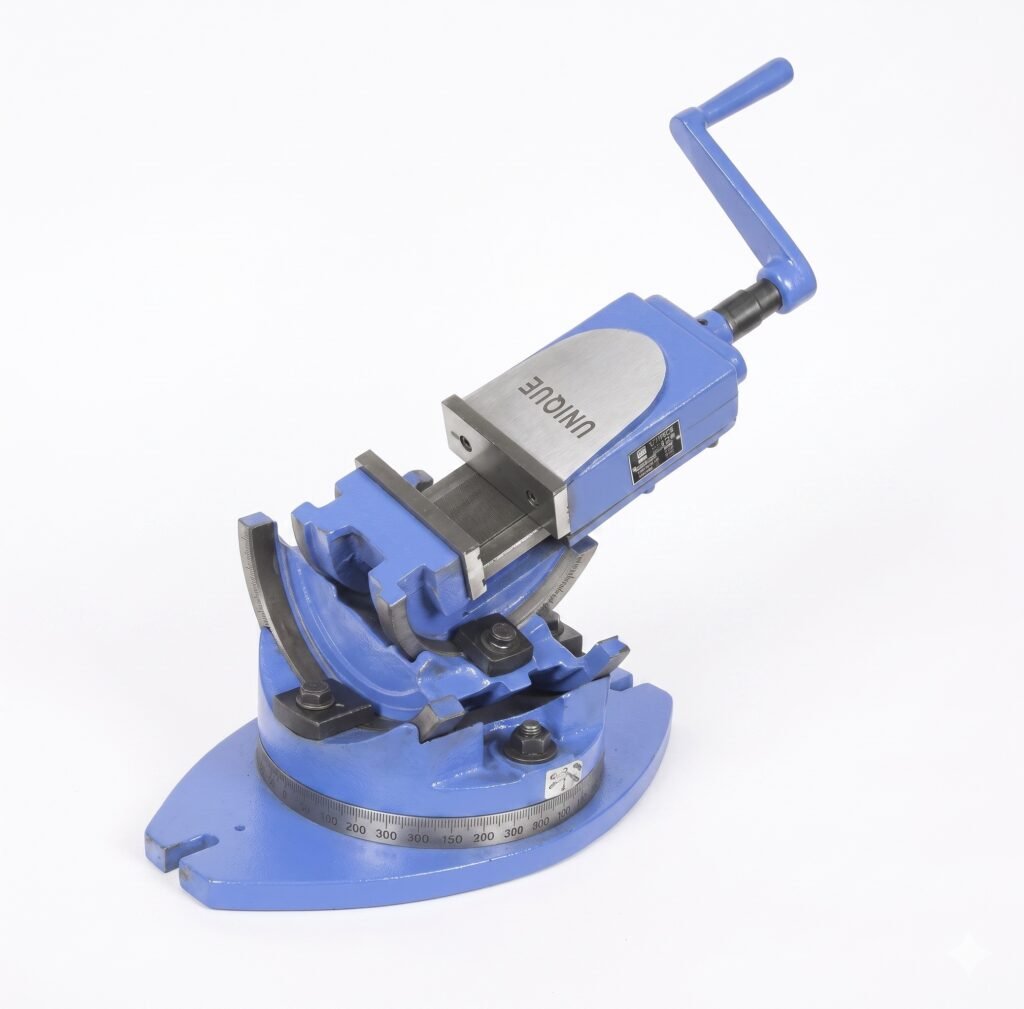

Unique 3-Way Universal Tilt & Swivel Angle Vice
The U330 3-Way Universal Vice provides unparalleled flexibility, allowing for precise positioning across three axes. Its high-strength graded cast iron construction and hardened V-groove jaws make it the perfect choice for high-tolerance tool-room applications.
Unique 3-Way Universal Tilt & Swivel Angle Vice
A versatile 3-axis vice that tilts, leans, and rotates to any possible angle, ensuring a rock-solid grip for the most complex machining setups.
Unique 3-Way Universal Tilt & Swivel Angle Vice
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique 3-Way Universal Tilt & Swivel Angle Vice
Code No: U330
Key Features

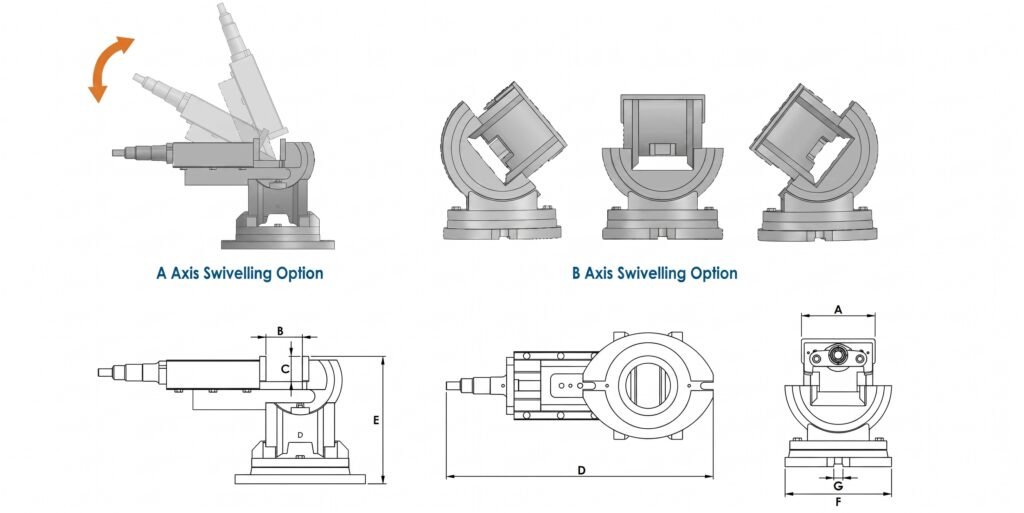

3-Axis Compound Movement: * A-Axis: Top base tilts from 0° to 90°.
B-Axis: Middle base inclines ±45° (perpendicular to the top base).
Base Swivel: Full 360° rotation on a graduated base.
Graded Cast Iron Body: Manufactured from high-strength cast iron to ensure maximum toughness and vibration-free rigidity.
Precision Jaws: Hardened and ground jaws featuring V-grooves to securely hold both flat and round workpieces.
Positive Locking: All three movements feature secure locking mechanisms to maintain precise angles under heavy loads.
Unbreakable Handle: Steel crank handle with a spring-loaded ball mechanism for a reliable, positive grip.
Specifications.....
| Specifications (mm) | 2″ (50) | 3″ (75) | 4″ (100) | 6″ (150) |
| Jaw Width (A) | 50 | 75 | 100 | 150 |
| Opening (B) | 50 | 75 | 100 | 150 |
| Jaw Depth (C) | 24 | 34 | 42 | 55 |
| Overall Length (D) | 210 | 275 | 345 | 420 |
| Overall Width (E) | 110 | 167 | 175 | 220 |
| Overall Height (F) | 105 | 140 | 135 | 235 |
| Slot Size (G) | 12 | 12 | 14 | 20 |
| Approx. Weight (KGs) | 4 | 11 | 25 | 62 |
