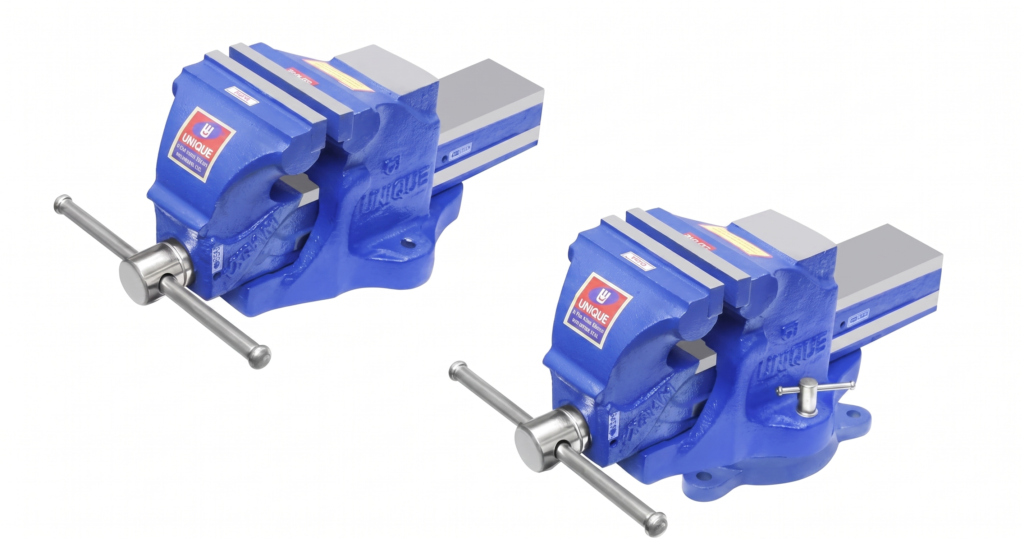

Unique Mechanic's Bench Vice
The U301 Unique Mechanic's Bench Vice is engineered for high-performance industrial environments, combining a robust closed-grain cast iron body with a precision alloy steel screw for an unbreakable, reliable clamping solution.
Unique Mechanic's Bench Vice
A high-strength, versatile bench vice featuring tempered steel jaws and an optional 360° swivel base, built to handle the toughest workshop demands with ease.
Unique Mechanic's Bench Vice
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Mechanic's Bench Vice
Code No. U301
Key Features
Premium Material: Crafted from high-quality closed-grain cast iron to provide maximum structural rigidity and vibration dampening.
Unbreakable Steel Nut: Features a heavy-duty steel nut designed to withstand extreme torque without stripping or failing.
Tempered Serrated Jaws: Special steel jaws are precision-tempered for a non-slip, rock-solid grip and are fully interchangeable for easy maintenance.
Alloy Steel Lead Screw: Equipped with a square-thread lead screw made of alloy steel, ensuring smooth operation and a long industrial life.
360° Swivel Base: The optional swivel base allows for a full range of motion and can be locked firmly at any point for optimal work positioning.
Specifications.....
| Specifications | 00 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| Size (Inches) | 2 ¼” | 2 ½” | 3″ | 3 ½” | 4″ | 4 ½” | 5″ | 6″ | 8″ | 10″ | 12″ |
| Width of Jaws (mm) | 60 | 65 | 75 | 85 | 100 | 115 | 125 | 150 | 200 | 250 | 300 |
| Opening of Jaws (mm) | 60 | 65 | 80 | 110 | 110 | 130 | 160 | 170 | 240 | 290 | 340 |
| Depth of Jaws (mm) | 45 | 48 | 60 | 62 | 70 | 76 | 82 | 92 | 110 | 125 | 144 |
| Overall Height (mm) | 95 | 102 | 125 | 140 | 155 | 170 | 185 | 225 | 235 | 285 | 300 |
| Overall Width (mm) | 90 | 110 | 136 | 158 | 165 | 170 | 175 | 220 | 250 | 300 | 350 |
| Overall Length (mm) | 205 | 205 | 250 | 295 | 350 | 375 | 450 | 470 | 535 | 675 | 760 |
| Approx. Weight U301 (kg) | 2.8 | 2.8 | 5 | 8 | 13 | 14.5 | 18 | 23.5 | 38 | 71 | 83 |
| Approx. Weight U301S (kg) | 3.6 | 3.6 | 6 | 9.5 | 15 | 16.5 | 21 | 27 | 44 | 76 | 88 |
