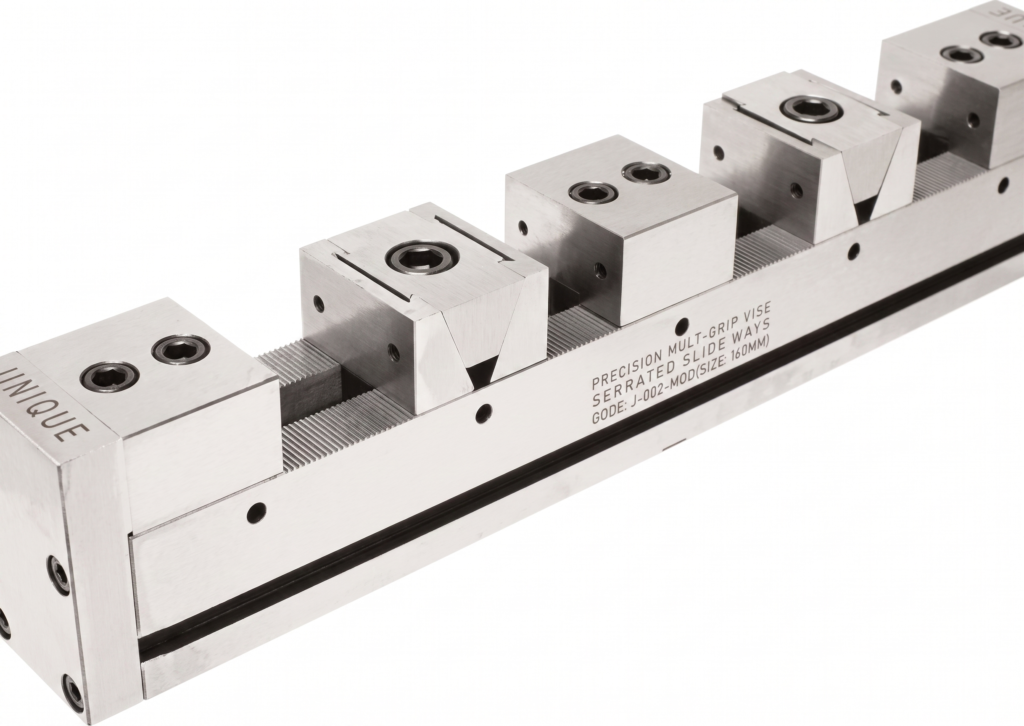

Unique Precision Multi-Grip Vise
The U2424 Multi-Grip Vise is a high-productivity workholding system designed to maximize machine table capacity. By allowing for the simultaneous clamping of multiple workpieces—either through a Twin Clamping System or a Singular Clamping System—it drastically reduces idle time caused by frequent tool changeovers.
Unique Angle Lock Self-Centering Vise
This vise automatically centers your workpiece every time you tighten it, saving you setup time and ensuring perfect symmetry. With its hardened iron body and "pull-down" jaw action, it keeps your work rock-solid and perfectly positioned for any high-precision job.
Unique Angle Lock Self-Centering Vise
- Phone:+1 (859) 254-6589
- Email:info@example.com
Unique Precision High Grip Machine Vise
Code No: U2121
Key Features
Reversible Jaws: Jaws can be reversed to provide an additional clamping range, and they feature two different clamping areas in both normal and reverse positions, offering maximum versatility for different part sizes.
FCD 60 Body: Constructed from high-quality FCD 60 ductile iron with flame-hardened guideways for superior wear resistance and structural rigidity.
High-Grip Hardened Jaws: Jaw plates are made from high-quality alloy steel and case-hardened to HRC 60 ± 2, ensuring a long-lasting, secure grip.
Effortless Alignment: Equipped with tenons and tenon slots to allow for quick and accurate truing (alignment) of the vise to the machine table.
Precision Standards: Guaranteed squareness and parallelism (top and bottom faces) within ± 0.02 mm / 100 mm.
Versatile Application: Specifically designed for precision milling, grinding, and CNC machining environments.
Specifications.....
| Jaw Width (mm) | Opening (mm) | Clamping Force (kgf) | Weight (kg) |
| 150 | 175 | 5000 | 39 |
| 200 | 212 | 5000 | 90 |
Squareness Accuracy: ± 0.02 mm / 100 mm
Parallelism (Top/Bottom): ± 0.02 mm / 100 mm
