Specifications…..

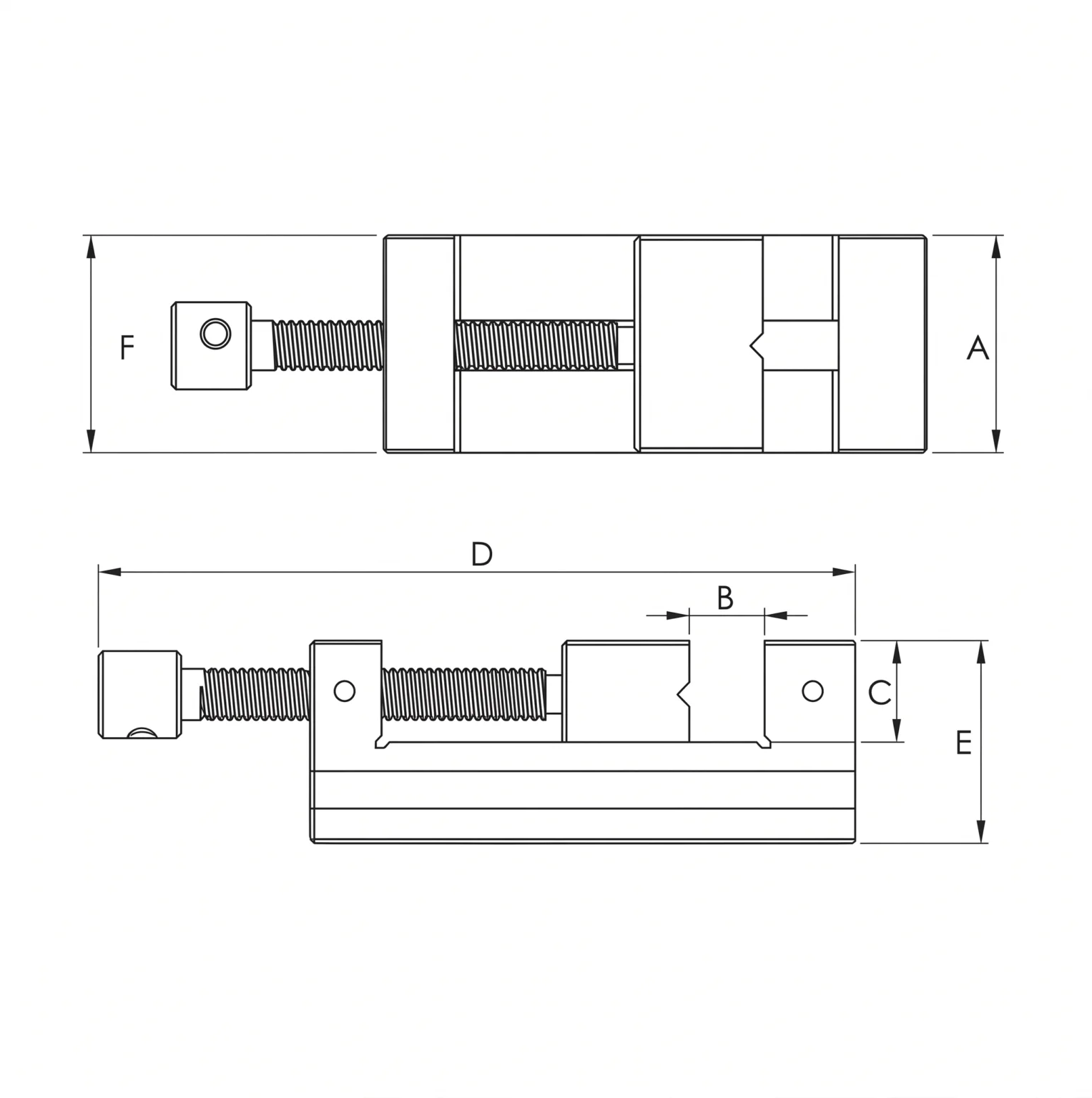

| Jaw Width (mm) | Opening (mm) | A | B | C | D | F | Weight (kg) |
| 50 | 55 | 25 | 75 | 90 | 42 | 160 | 5.2 |
| 75 | 94 | 104 | 45 | 285 | 90 | 94 | 9.7 |
| 150 | 150 | 50 | 360 | 96 | 150 | – | 20.6 |

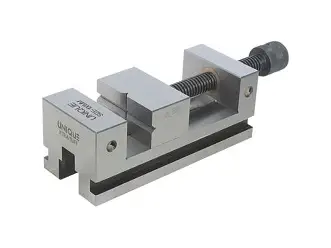

Unique Precision Grinding Vise Code No: U422
Key Features
-
Premium Material Construction: Both the vise body and jaws are manufactured from high-quality Tool Steel.
-
Heat-Treated for Stability: Fully hardened and tempered to ensure the vise retains its shape and precision over an extended service life.
-
Precision Ground: All surfaces are precision ground to provide an exceptionally smooth and accurate finish.
-
Superior Tolerance: Guaranteed parallelism and squareness on all sides within ± 0.01 mm / 100 mm, making it ideal for high-precision finishing.
-
Low-Profile Design: Engineered for maximum stability during surface grinding and precision milling applications.
