Specifications…..

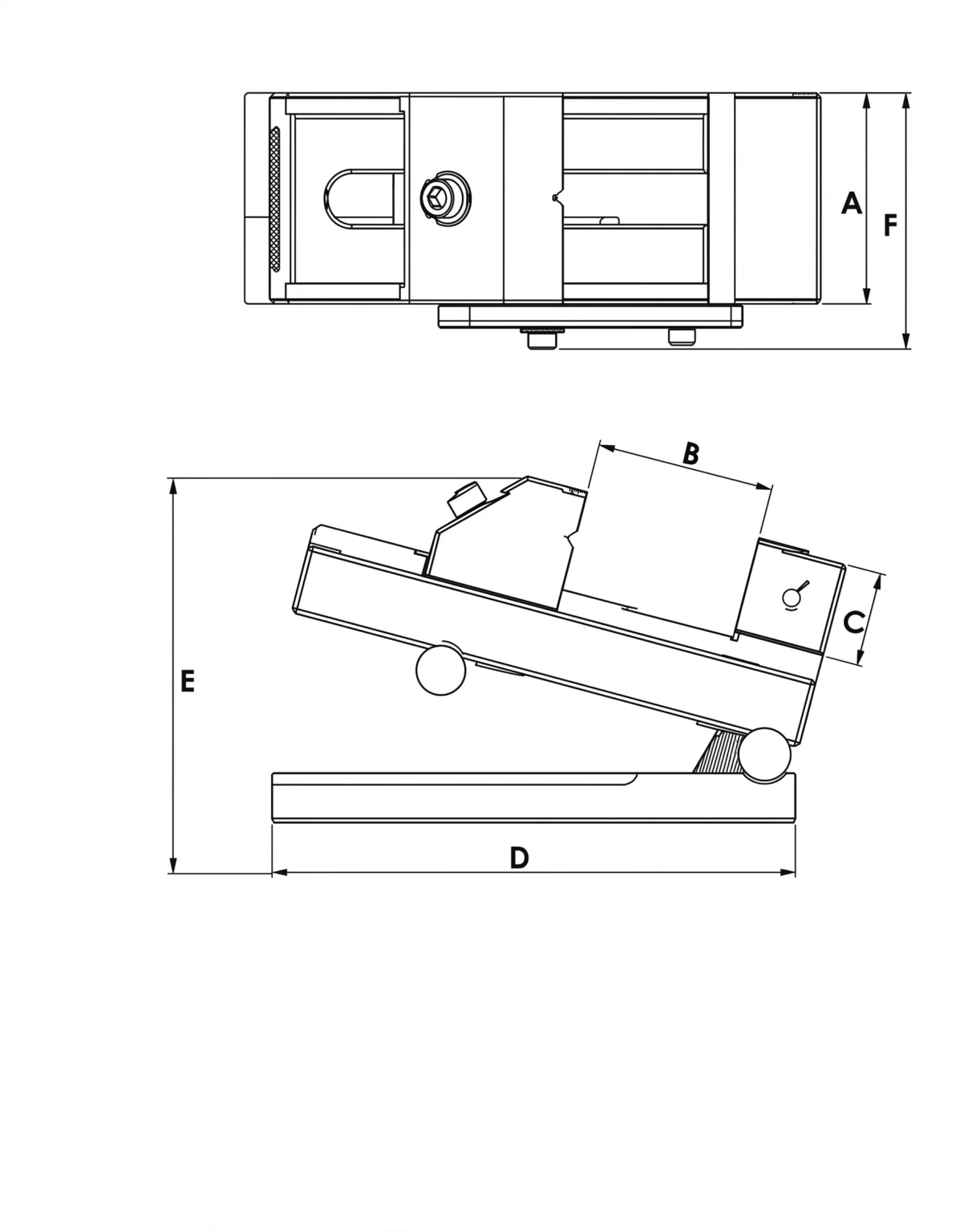

| Jaw Width | Opening | A | B | D | Weight (kg) |
| 75 | 95 | 40 | 195 | 105 | 12 |
| 100 | 114 | 44 | 237 | 118 | 22 |
Accuracy: Parallelism and squareness are guaranteed within ± 0.01 mm / 100 mm.

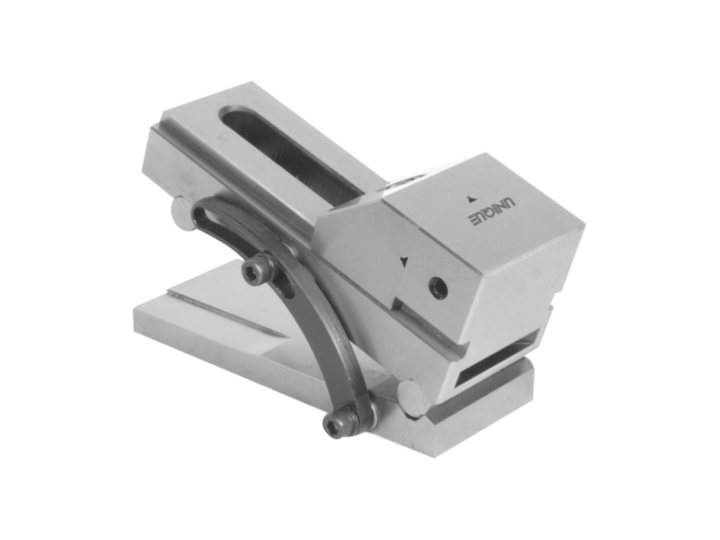

Unique Precision Sine Vise (Pin Type) Code No: U424
Key Features
-
Precision Angular Setup: Engineered for the precise setting of angles using gauge blocks, ensuring repeatable and high-accuracy results for complex angular components.
-
Premium Material: Both the vise body and jaws are constructed from high-quality Tool Steel, which is hardened, tempered, and precision-ground for long-term stability.
-
High-Tolerance Accuracy: Maintains rigorous standards with parallelism and squareness held within ± 0.01 mm / 100 mm.
-
Stable Pin-Type Design: Features a robust pin-type construction that provides the necessary rigidity for delicate grinding and machining tasks.
