Specifications…..

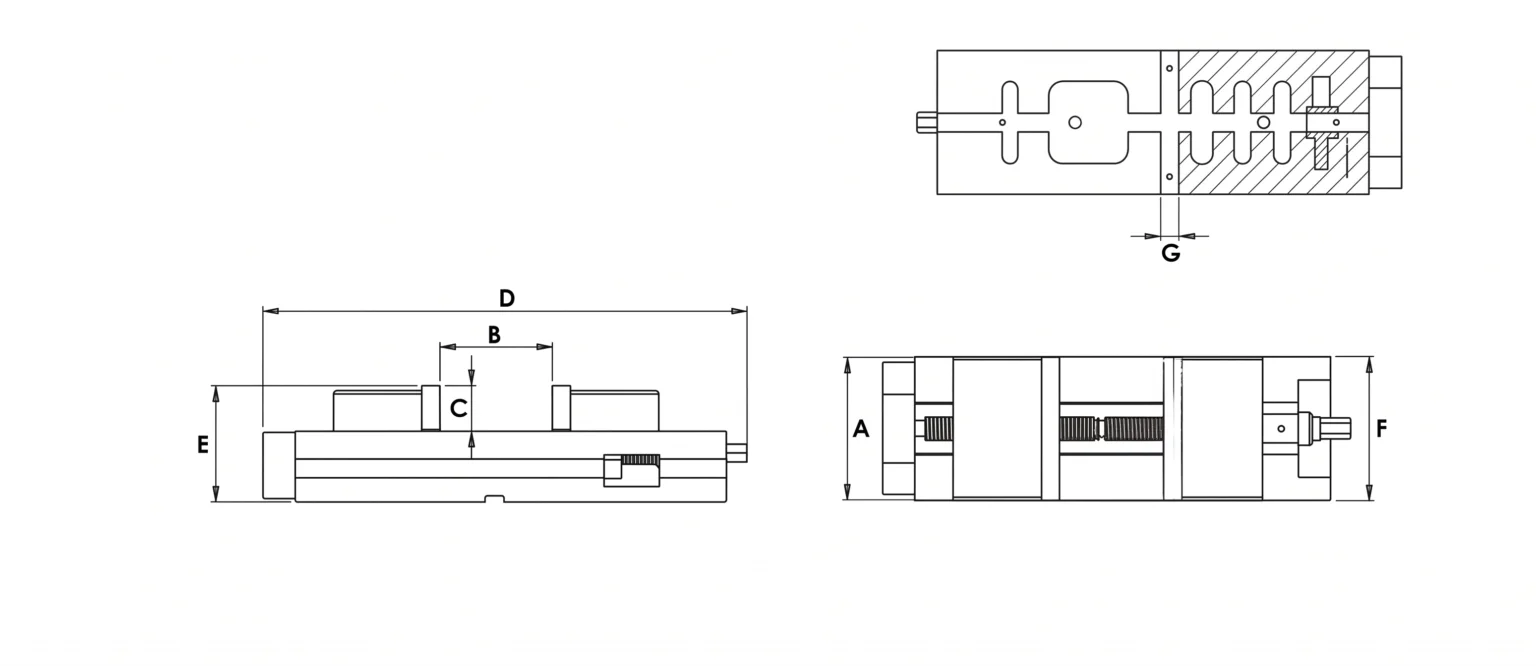

| Jaw Width | Opening | Base Length | Height | Bolt/Slot Size | Weight | Clamping Force |
| 150 mm | 225 mm | 520 mm | 125 mm | 20 mm | 34 kg | 2500 kgf |
-
Squareness Accuracy: ± 0.02 mm / 100 mm
-
Centering Accuracy: ± 0.02 mm / 100 mm

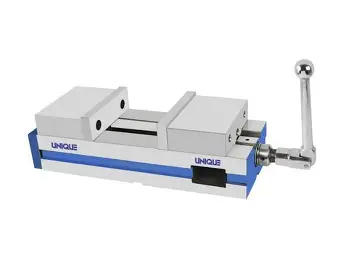

Unique Angle Lock Self-Centering Vise Code No: U350 SCV
Key Features
-
Self-Centering Precision: Engineered to hold workpieces perfectly in the center, ensuring symmetrical machining with an accuracy of ± 0.02 mm.
-
Flexible Mounting: The vise body is designed for multiple orientations; it can be clamped in the standard position or on either of its two side faces.
-
FCD 60 Construction: Cast from high-strength FCD 60 ductile iron with flame-hardened guideways to provide maximum wear resistance and structural rigidity.
-
Anti-Lift Technology: Built as an anti-lift, “hammer-less” vise to ensure the workpiece is pulled down onto the bed for ultra-stable, vibration-free clamping.
-
Precision Ground Surfaces: Both the top and bottom of the vise are precision ground, facilitating perfect alignment regardless of the mounting configuration.
-
Smooth Operation: Equipped with a thrust bearing to minimize friction, ensuring the clamping motion is consistent and requires minimal operator effort.
-
Production Readiness: Features chip clearance holes to prevent dead pockets during machining and is supplied with a stopper for fast, repeatable batch production.
