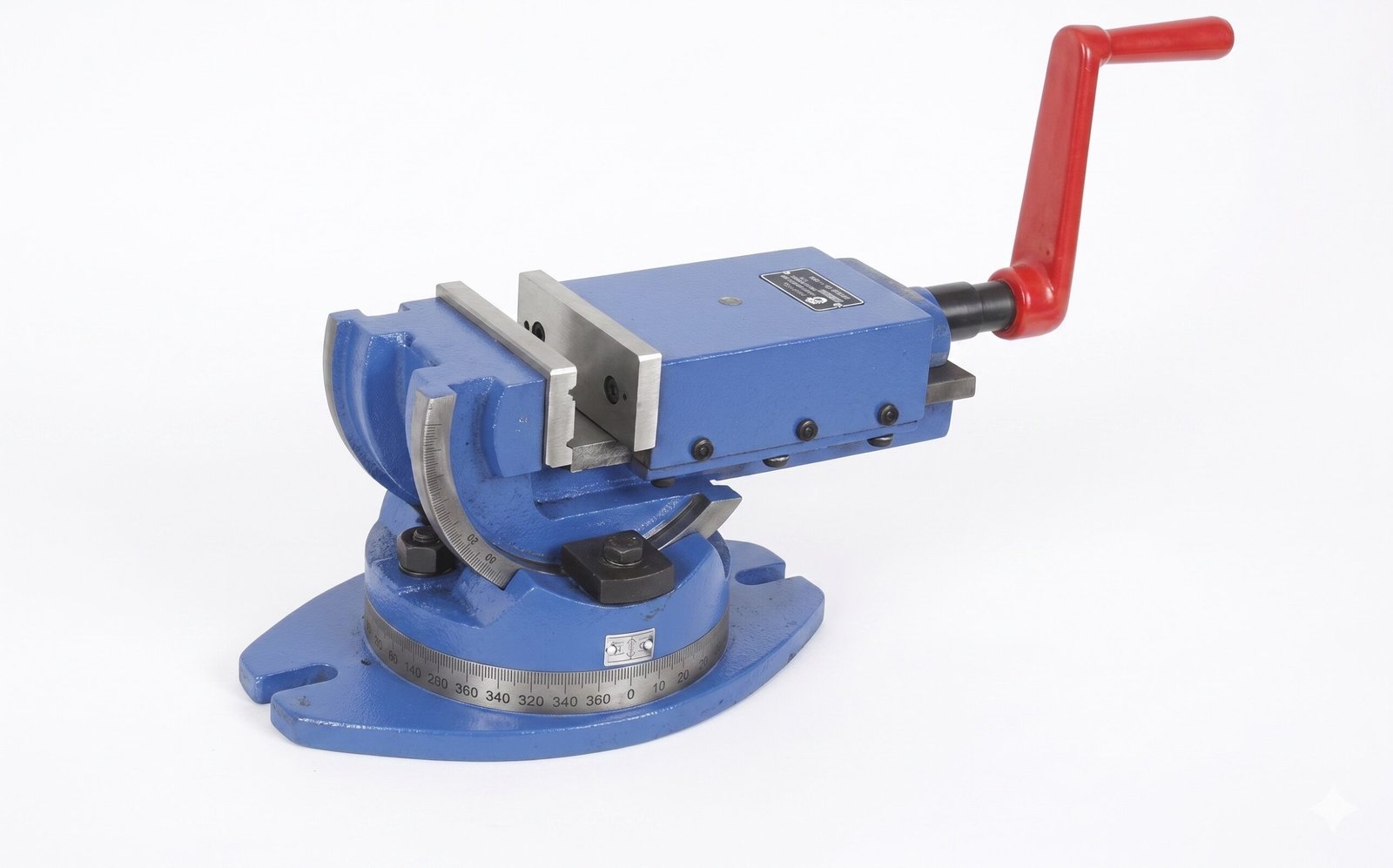

Dual-Axis Movement: Offers a full 360° horizontal swivel and a 90° vertical tilt (A-axis) for precise angle settings.
Heavy-Load Stability: Features positive locking mechanisms to withstand heavy machining forces without shifting.
Smooth Operation: Fitted with a thrust bearing to ensure effortless jaw movement and reduced operator fatigue.
High-Strength Body: Manufactured from graded cast iron for superior toughness and vibration resistance.
ACME Steel Screw: Equipped with a high-quality ACME thread steel screw for powerful and consistent clamping.
Versatile V-Groove Jaws: Hardened and precision-ground jaws feature one vertical and two horizontal V-grooves to hold round workpieces rigidly.
Professional Handle: Unbreakable steel crank handle with a spring-loaded ball mechanism for a secure grip.

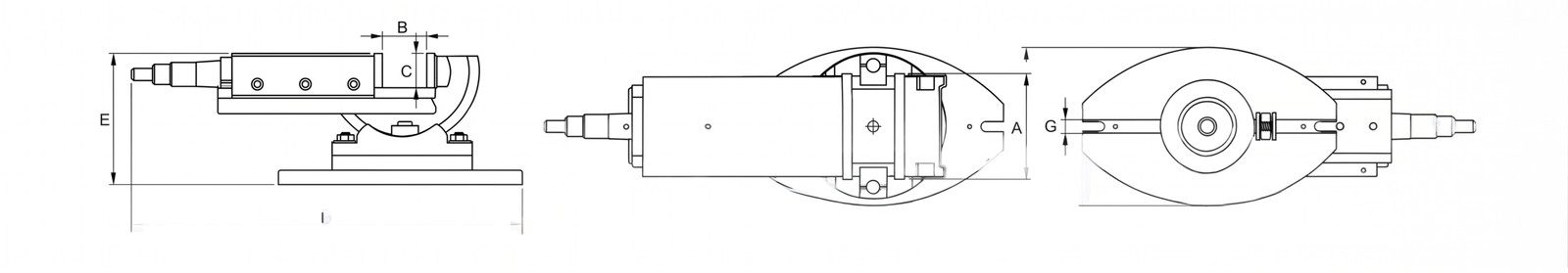

| Specifications (mm) | 2″ (50) | 3″ (80) | 4″ (100) | 5″ (125) | 6″ (150) | 8″ (200) |
| Jaw Width (A) | 50 | 80 | 100 | 125 | 150 | 200 |
| Opening (B) | 50 | 75 | 100 | 125 | 150 | 200 |
| Jaw Depth (C) | 25 | 38 | 42 | 50 | 50 | 60 |
| Overall Length (D) | 210 | 285 | 370 | 450 | 540 | 640 |
| Overall Width (E) | 95 | 125 | 160 | 170 | 195 | 220 |
| Overall Height (F) | 105 | 140 | 170 | 228 | 236 | 280 |
| Slot Size (G) | 16 | 16 | 16 | 20 | 20 | 20 |
| Approx. Weight (KGs) | 4 | 8.5 | 18 | 30 | 44 | 73 |
