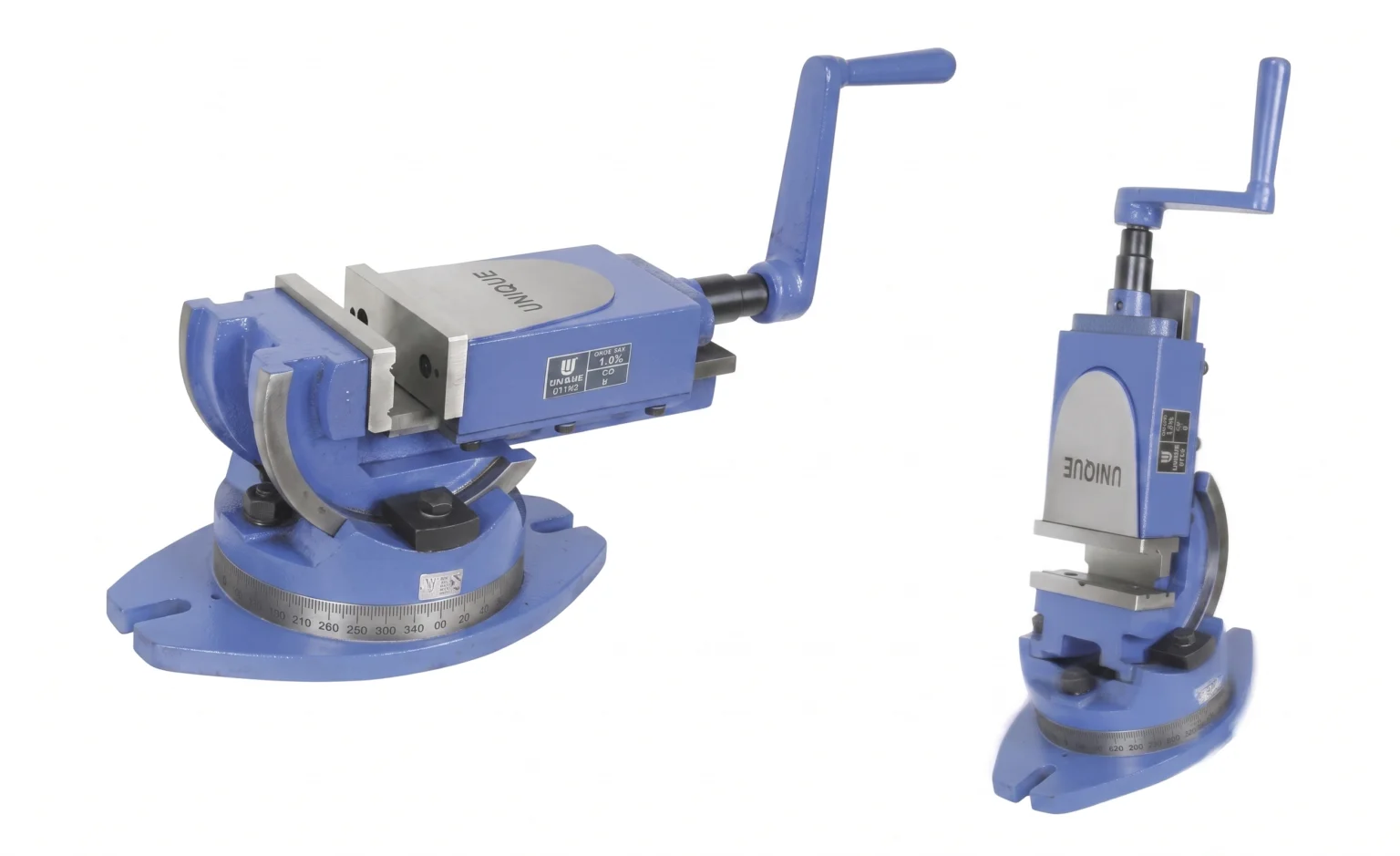

Full Range Movement: Features a 360° horizontal swivel and a 90° vertical tilt along the A-axis, allowing for complex angle machining.
Thrust Bearing System: Equipped with a thrust bearing for exceptionally smooth jaw operation, reducing operator fatigue during heavy-duty use.
Multi-Groove Jaws: Precision-ground and hardened steel jaws include one vertical and two horizontal V-grooves to securely grip round workpieces.
Rugged Construction: The body is made of high-strength graded cast iron (or optional FCD 60) for maximum rigidity and toughness.
Positive Locking: Designed with secure locking mechanisms to remain stable even under heavy industrial loads.
Industrial Spindle: High-quality ACME steel screw provides powerful clamping force and long-lasting durability.
Safety Handle: Includes an unbreakable steel crank handle with a spring-loaded ball mechanism for a reliable, positive grip.

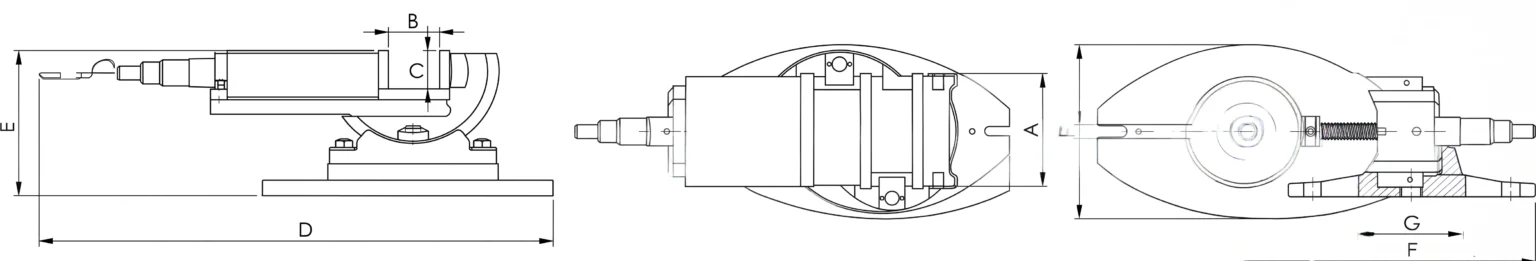

| Specifications (mm) | 2″ | 3″ | 4″ | 5″ | 6″ | 8″ |
| Jaw Width (A) | 50 | 80 | 100 | 125 | 150 | 200 |
| Opening (B) | 50 | 75 | 100 | 125 | 150 | 200 |
| Jaw Depth (C) | 25 | 38 | 42 | 50 | 50 | 60 |
| Overall Length (D) | 210 | 285 | 370 | 450 | 540 | 640 |
| Overall Width (E) | 95 | 125 | 160 | 170 | 195 | 220 |
| Overall Height (F) | 105 | 140 | 170 | 228 | 236 | 280 |
| Slot Size (G) | 16 | 16 | 16 | 20 | 20 | 20 |
| Approx. Weight (kg) | 4 | 8.5 | 18 | 30 | 44 | 73 |
