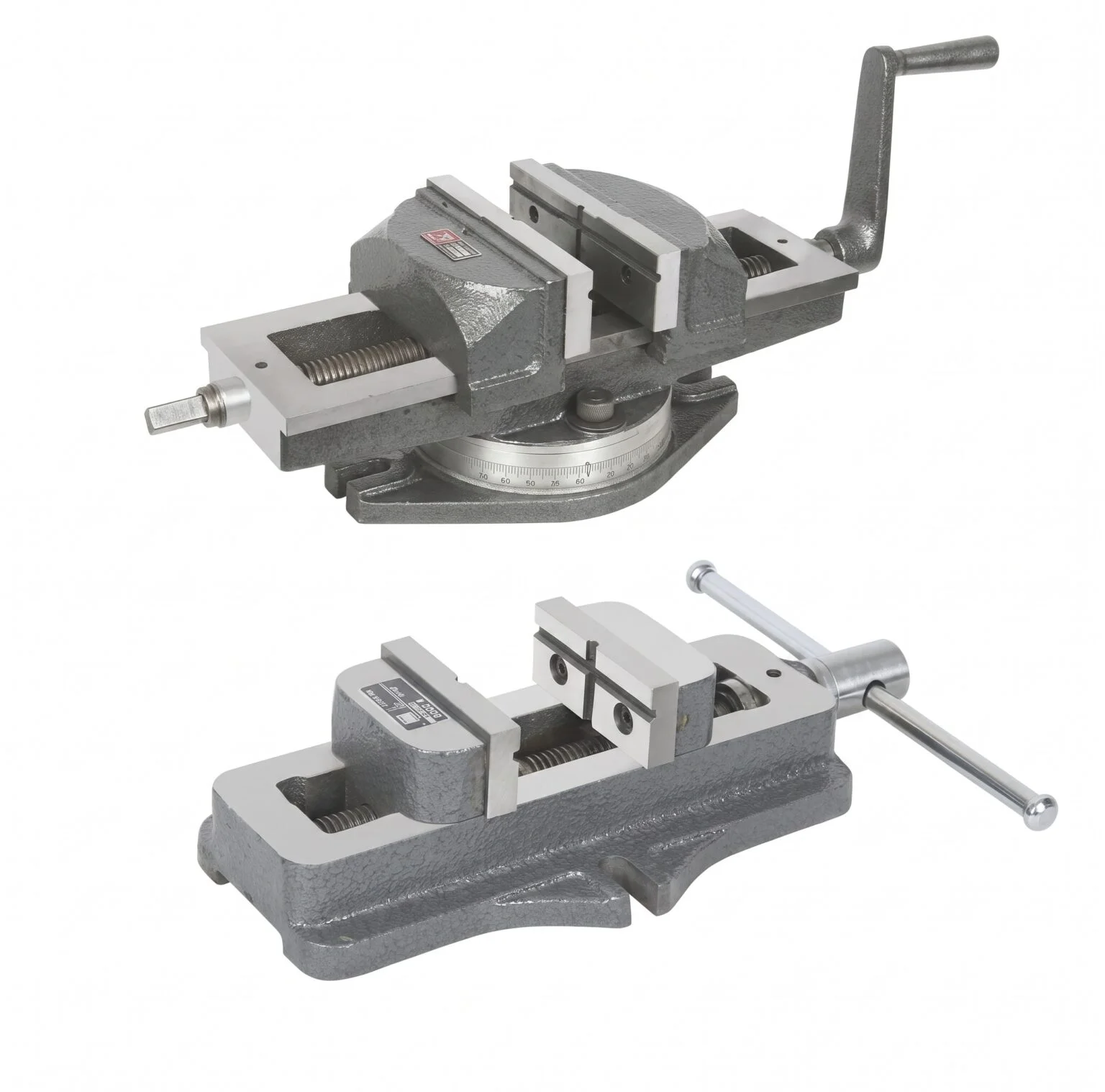

Simultaneous Centering: Both jaws move together to automatically align the workpiece to the center, significantly reducing setup time.
Graded Casting Body: Constructed from high-quality graded iron to ensure maximum structural stability and wear resistance.
Hardened “V” Groove Jaws: Features precision-hardened steel jaws with vertical and horizontal V-grooves, specifically designed to grip round stock rigidly in any orientation.
Long-Life Screw: Equipped with a special steel screw mechanism optimized for smooth operation and heavy industrial use.
360° Swivel Base (U 314S): The “S” model features a fully graduated base that rotates 360 degrees, allowing for precise angular work.
| Specifications | 2″ (U314) | 3″ (U314) | 4″ (U314) | 3″ (U314S) | 4″ (U314S) | 6″ (U314S) |
| Width of Jaws (mm) | 50 | 80 | 100 | 80 | 100 | 150 |
| Opening of Jaws (mm) | 80 | 110 | 130 | 110 | 140 | 190 |
| Depth of Jaws (mm) | 30 | 32 | 38 | 30 | 40 | 55 |
| Overall Height (mm) | 60 | 70 | 80 | 100 | 125 | 150 |
| Overall Width (mm) | 100 | 150 | 175 | 100 | 130 | 165 |
| Overall Length (mm) | 230 | 305 | 330 | 300 | 380 | 475 |
| Approx. Weight (kg) | 2.5 | 6 | 8.5 | 5.5 | 10 | 21 |
