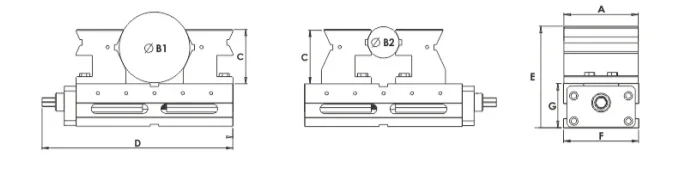

Specifications…..
| Jaw Width (mm) | Opening Range (mm) | Weight (kg) | Clamping Force (kgf) |
| 150 | 40–100 (inner) / 20–40 (outer) | 25 | 5000 |
| 150 | 50–150 (inner) / 30–50 (outer) | 57 | 5000 |

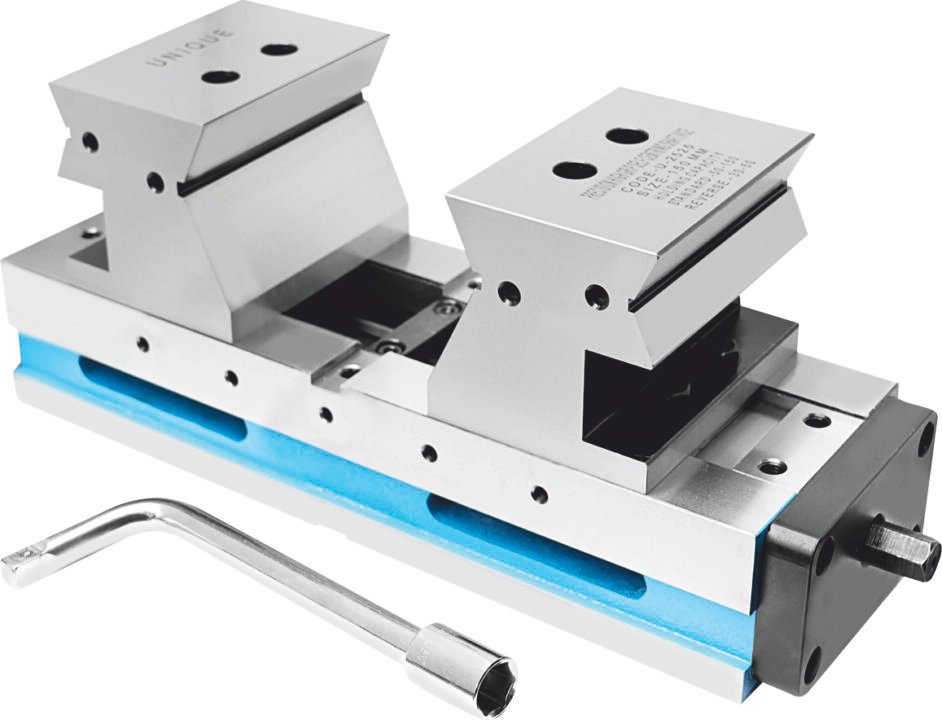

Unique Precision High-Grip Self-Centering Shaft Vise Code No: U2525
Key Features
-
Self-Centering Precision: Specifically designed to automatically center round shafts or cylindrical workpieces, ensuring highly repeatable and accurate machining.
-
Reversible Jaws: Jaws can be reversed to significantly increase the clamping range, providing flexibility for different shaft diameters.
-
FCD 60 Construction: Body cast from high-strength FCD 60 ductile iron, featuring flame-hardened guideways for superior wear resistance and structural rigidity.
-
Hardened Jaw Plates: High-quality alloy steel jaws, case-hardened to HRC 60 ± 2, ensuring a firm, long-lasting grip on metal components.
-
Effortless Truing: Includes tenons and tenon slots that allow for rapid and precise alignment of the vise to the machine table.
-
Precision Standards: Guaranteed squareness and parallelism within ± 0.02 mm / 100 mm to meet stringent industrial tolerance requirements
