Specifications…..

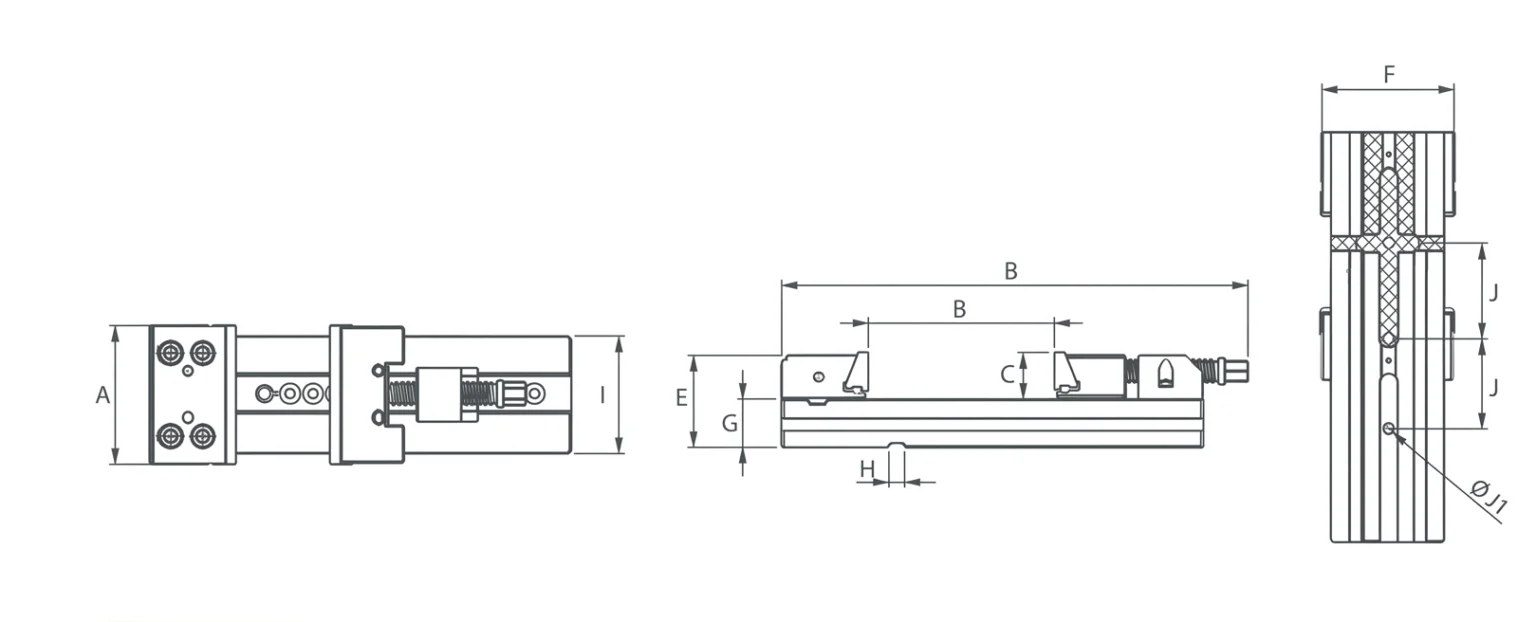

| Jaw Width | Opening | A | C | D | E | G | H | Weight (kg) | Clamping Force |
| 100 | 130 | 325 | 71 | 45 | 102 | 16 | 90 | 13 | 2500 kg |
| 125 | 175 | 375 | 90 | 50 | 125 | 16 | 100 | 14 | 3000 kg |
| 150 | 225 | 450 | 100 | 50 | 150 | 16 | 125 | 29 | 3500 kg |
| 200 | 300 | 525 | 118 | 57 | 203 | 16 | 175 | 31 | 4000 kg |
Unique Modular Precision Machine Vise Code No: U3333
Key Features
-
Modular Capability: With consistent bed height across the series, multiple vises can be used in tandem to securely hold extra-long workpieces.
-
Anti-Lift Design: Features pull-down angle jaw plates that exert a downward force on the workpiece, ensuring it stays firmly against the bed for rigid, lift-free clamping.
-
High-Grade Construction: Manufactured from stabilized, high-grade alloy steel and case-hardened to HRC 60 ± 2 for maximum durability and virtually zero wear.
-
Precision Accuracy: Engineered for high-tolerance machining with squareness guaranteed to within ± 0.01 mm per 100 mm.
