Specifications…..
| Specifications | 3″ | 4″ | 5″ | 6″ |
| Width of Jaws (mm) | 75 | 100 | 125 | 150 |
| Opening of Jaws (mm) | 110 | 140 | 170 | 205 |
| Depth of Jaws (mm) | 65 | 80 | 85 | 90 |
| Approx. Weight (KGs) | 7 | 15 | 20 | 25 |

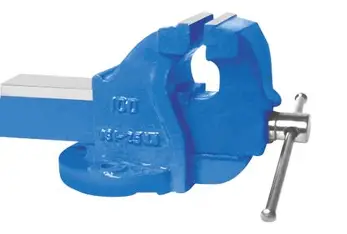

Unique Machinist’s Bench Vice Code No: U 1301 (IS-2586-1986)
Key Features
-
Superior Casting: Built with closed-grain cast iron to ensure a rigid and vibration-free body.
-
Unbreakable Nut: Equipped with a high-strength steel nut (available in bronze or forged options) for heavy-duty performance.
-
Tempered Serrated Jaws: Special steel jaws are properly tempered for a non-slip grip and are fully interchangeable.
-
Precision Lead Screw: Features an alloy steel square-thread screw, perfectly matched with the nut for a smooth and long service life
