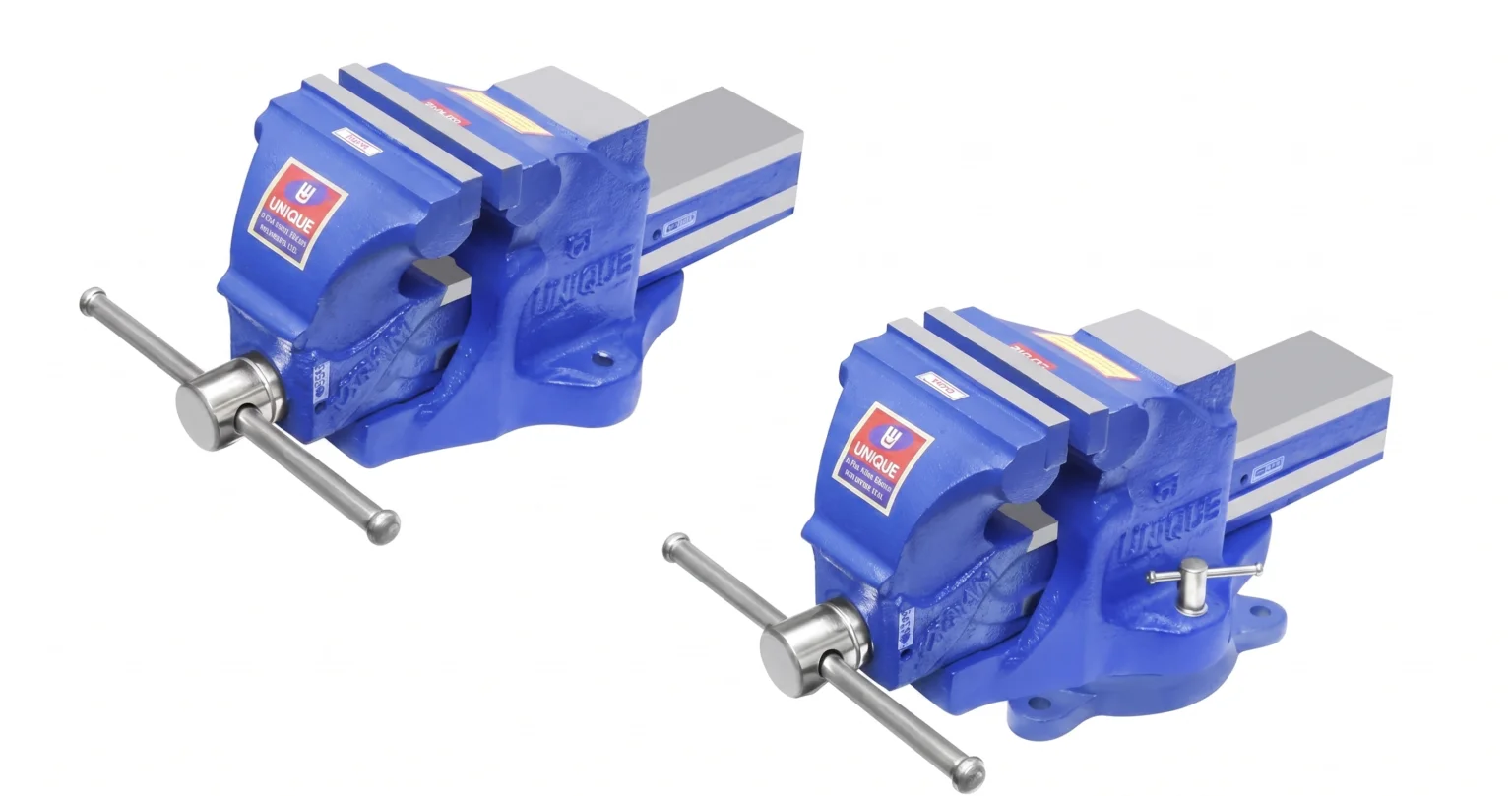

Unique Mechanic's Bench Vice Code No. U301

Unique Mechanic’s Bench Vice Code No. U301

Rated 4.00 out of 5 based on 1 customer rating
(1 customer review)

Key Features

  • Premium Material: Crafted from high-quality closed-grain cast iron to provide maximum structural rigidity and vibration dampening.

  • Unbreakable Steel Nut: Features a heavy-duty steel nut designed to withstand extreme torque without stripping or failing.

  • Tempered Serrated Jaws: Special steel jaws are precision-tempered for a non-slip, rock-solid grip and are fully interchangeable for easy maintenance.

  • Alloy Steel Lead Screw: Equipped with a square-thread lead screw made of alloy steel, ensuring smooth operation and a long industrial life.

  • 360° Swivel Base: The optional swivel base allows for a full range of motion and can be locked firmly at any point for optimal work positioning.

Specifications…..

Specifications 00 0 1 2 3 4 5 6 8 10 12
Size (Inches) 2 ¼” 2 ½” 3″ 3 ½” 4″ 4 ½” 5″ 6″ 8″ 10″ 12″
Width of Jaws (mm) 60 65 75 85 100 115 125 150 200 250 300
Opening of Jaws (mm) 60 65 80 110 110 130 160 170 240 290 340
Depth of Jaws (mm) 45 48 60 62 70 76 82 92 110 125 144
Overall Height (mm) 95 102 125 140 155 170 185 225 235 285 300
Overall Width (mm) 90 110 136 158 165 170 175 220 250 300 350
Overall Length (mm) 205 205 250 295 350 375 450 470 535 675 760
Approx. Weight U301 (kg) 2.8 2.8 5 8 13 14.5 18 23.5 38 71 83
Approx. Weight U301S (kg) 3.6 3.6 6 9.5 15 16.5 21 27 44 76 88
