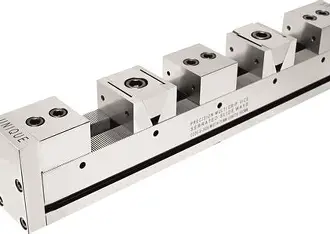

Precision Multi Grip Machine Vice (Serrated Slide Ways) Code No.U-2424.

Key Features

  • Multi-Workpiece Clamping – Holds multiple components of different sizes simultaneously.
  • High Productivity – Maximises table capacity and reduces idle time.
  • Reduced Setup Time – Machines multiple parts in one setup.
  • High Precision – Maintains positioning accuracy of ±0.02 mm.
  • Heavy-Duty Construction – Alloy steel, case hardened to HRC 60 ±2.
  • Rigid & Compact – Ensures stability during high-load machining.
  • Complete Clamping Set – Includes 3 fixed jaws and 2 wedge clamps.

Specifications…..

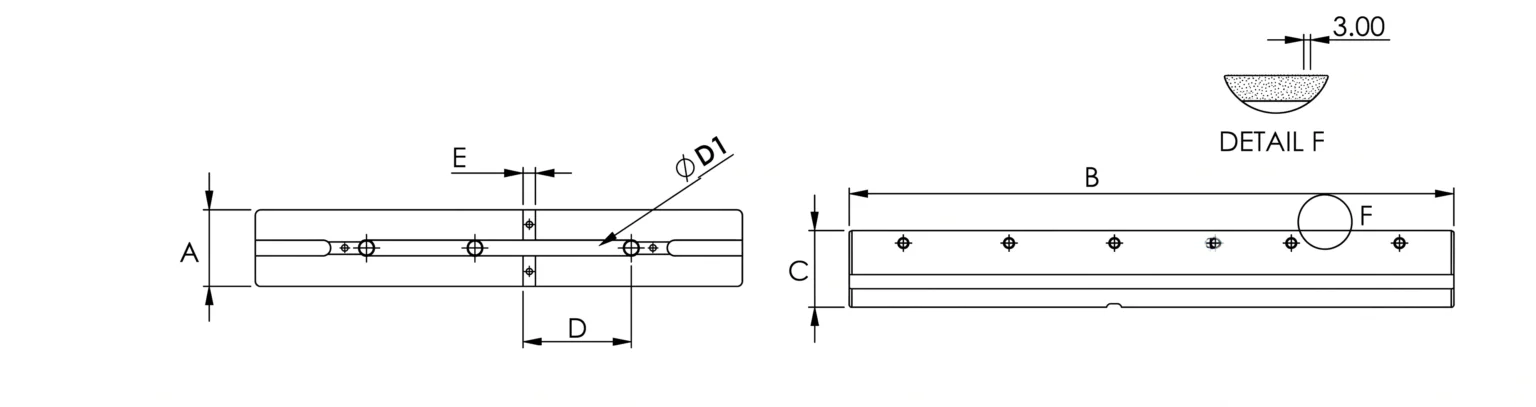

Jaw Width (mm) Opening (mm) Clamping Force (kgf) Weight (kg)
150 175 5000 39
200 212 5000 90
  • Squareness Accuracy: ± 0.02 mm / 100 mm

  • Parallelism (Top/Bottom): ± 0.02 mm / 100 mm
