Specifications…..
| Inside Morse Taper | Outside Morse Taper | Overall Length (mm) |
| 1 | 2 | 92 |
| 1 | 3 | 112 |
| 1 | 4 | 124 |
| 2 | 3 | 124 |
| 2 | 4 | 171 |
| 2 | 5 | 156 |
| 3 | 3 | 99 |
| 3 | 4 | 124 |
| 3 | 5 | 156 |
| 4 | 5 | 156 |
| 4 | 6 | 218 |
| 5 | 6 | 218 |

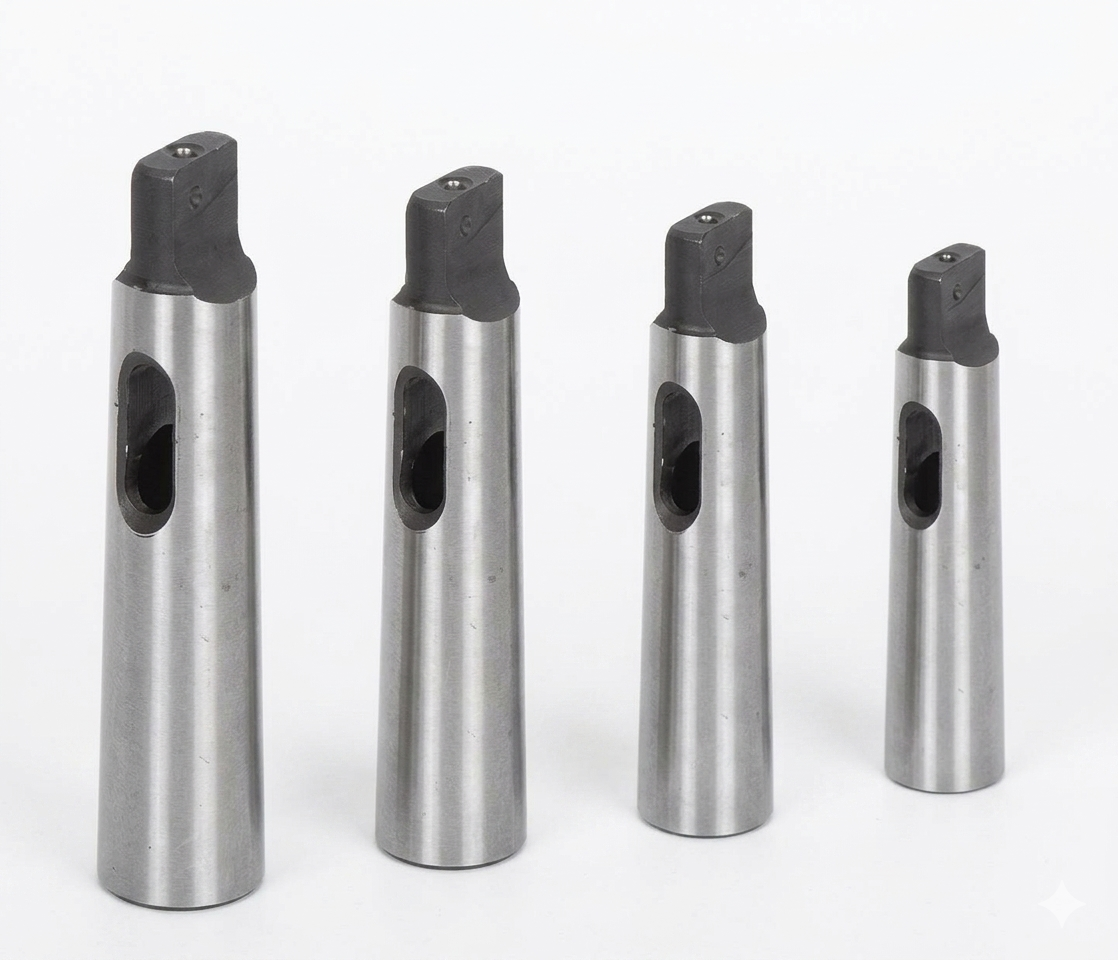

Unique Drill Sleeves Code No: U4045
Quality Grades
-
A-Grade (Precision): Manufactured from case-hardened steel with a body and tang hardness of 54°–58° HRC. These are fully ground on both the inside and outside to ensure extreme accuracy and longevity.
-
Workshop Grade: Manufactured from durable carbon steel. These feature a precision-ground outside diameter and a reamed internal taper, with a hardened tang to resist damage during tool changes.
