Specifications…..
| Code | Size | F (mm) | D (mm) | H (mm) |
| U26-1 | M8 | 8.4 | 17 | 3.5 |
| U26-2 | M10 | 10.5 | 21 | 4.2 |
| U26-3 | M12 | 13 | 24 | 5.0 |
| U26-4 | M16 | 17 | 30 | 6.2 |
| U26-5 | M20 | 21 | 36 | 7.5 |
| U26-6 | M24 | 25 | 44 | 9.5 |

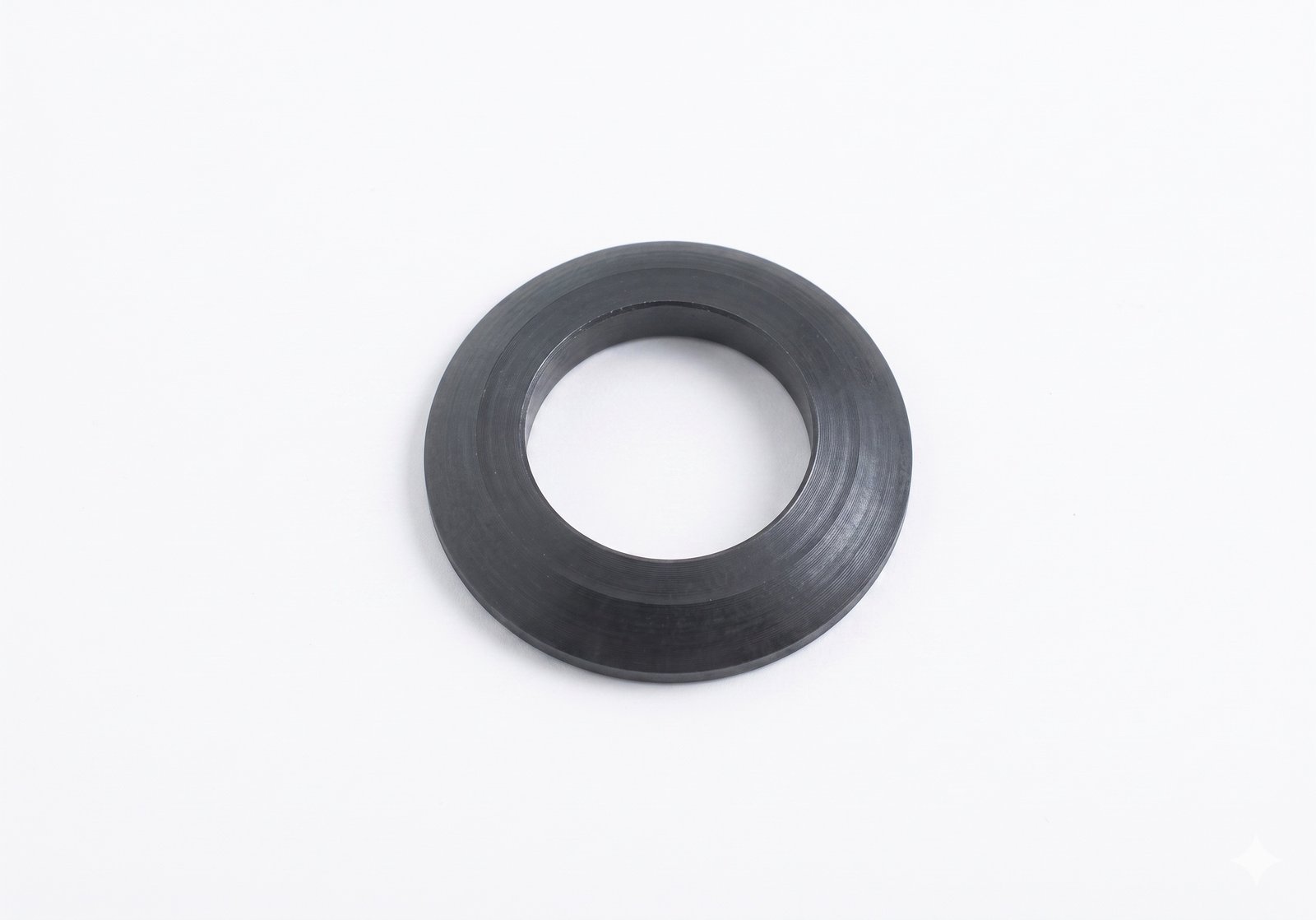

Spherical Washer with Conical Seat (IS: 4297-1996) Code No: U26
Key Features
-
Self-Aligning Design: Acts as a ball-and-socket joint to compensate for angular misalignment, ensuring the clamping force is applied evenly even when the workpiece surface is not perfectly perpendicular to the stud.
-
Precision Construction: Manufactured from high-strength hardened and tempered steel (Class 8.8 / 8G) to withstand heavy clamping forces without deformation.
-
Professional Finish: Finished with a burnished surface, providing durability and a high-quality appearance suitable for industrial fixtures.
-
Standardized Compliance: Fully compliant with IS: 4297-1996 standards for reliability in engineering applications.
