Specifications…..

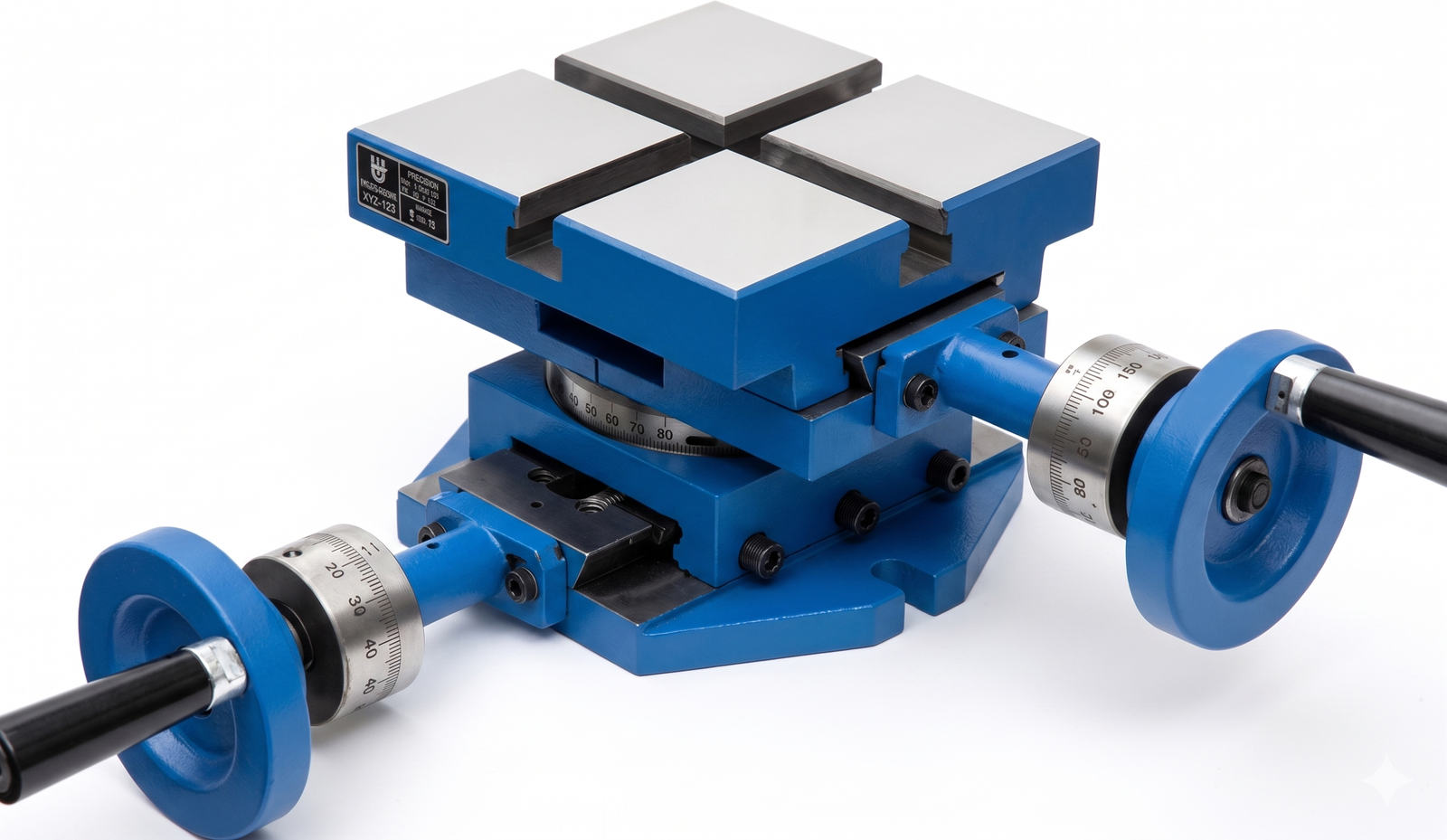

Our range of Unique Precision Sliding Tables is engineered to deliver exceptional accuracy for critical machining operations, including boring, drilling, grinding, and milling. Each unit is constructed from high-strength graded iron casting, ensuring long-term durability and structural stability. These tables are precision-ground to maintain a tolerance within 0.01mm/100mm, guaranteeing professional-grade performance. To ensure smooth and reliable movement, they feature toughened lead screws with precision Acme threads that operate seamlessly within a Phosphorus Bronze nut. Additionally, the dovetail slides are equipped with adjustable steel gibs, allowing for fine-tuned precision and consistent, smooth operation under load.
Specifications…..
| Code No. | Size (Inches) | Table Size (mm) | Height (mm) | Length Overall (mm) | T-Slot (mm) | Travel (mm) | Weight (kg) |
| U320 | 6 x 6 | 400 x 400 | 150 | 460 | 13 | 225 | 40 |
| U321C | 8 x 8 | 100 x 100 | 150 | 460 | 13 | 225 | 36 |
| U321 | 10 x 10 | 300 x 300 | 150 | 460 | 13 | 225 | 44 |
| U322 | 12 x 12 | 300 x 500 | 170 | 620 | 16 | 300 | 80 |
| U322J | 12 x 20 | 300 x 150 | 165 | 680 | 16 | 430, 310 | 103 |
| U318N | 7 x 10 | 250 x 250 | 105 | 160 | 13 | 65 | 7 |
| U325N | 12 x 8 | 150 x 150 | 120 | 275 | 13 | 105 | 14 |
| U319 | 12 x 6 | 200 x 200 | 130 | 300 | 13 | 125 | 20 |
| U322A | 8 x 8 | 300 x 200 | 130 | 350 | 13 | 125 | 24 |
| U322J | 6 x 6 | 175 x 250 | 60 | 260 | 13 | 105 | 8 |
| U318 | 4 x 4 | 150 x 150 | 65 | 295 | 13 | 125 | 12 |
| U325 | – | 200 x 200 | 270 | 465 | 13 | 180 | 23.5 |
