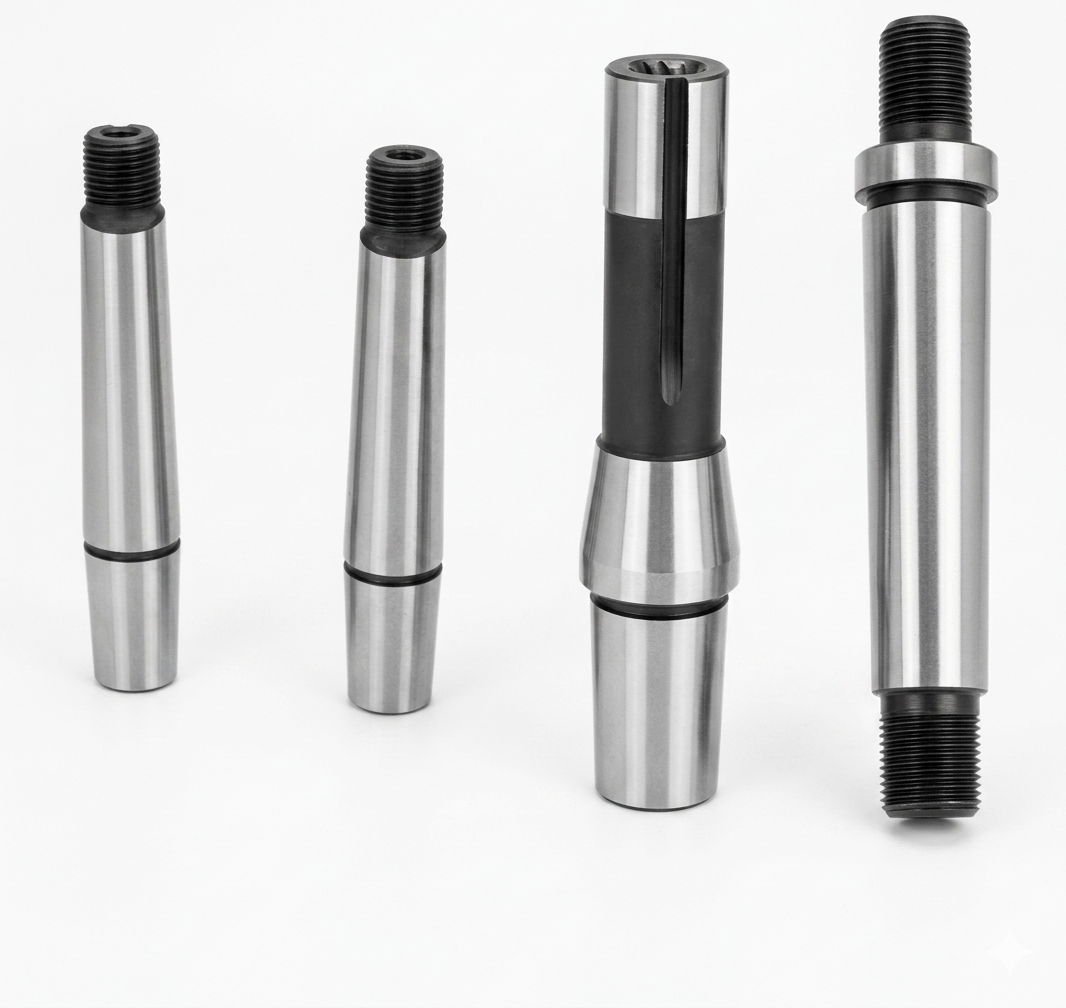

Drill Chuck Arbors Code No: U404

Drill Chuck Arbors Code No: U404

Key Features

  • Precision Engineering: All arbors are manufactured from case-hardened steel and are ground over their entire surface, ensuring maximum concentricity and a perfect fit between the machine and the chuck.

  • Comprehensive Range: We offer an extensive selection of arbors covering a variety of mounting standards, including Threaded, Jacobs Taper, and DIN 238 Taper configurations.

  • Durability: The case-hardening process provides high surface hardness to resist wear during frequent tool changes, while the core remains tough to absorb the shocks and vibrations of drilling.

Specifications Summary

Threaded Arbors

  • Specifications: Available in popular thread standards including 3/8×24 UNF, 1/2-20 UNF, and 5/16-16 UNF, designed for various standard drill chuck mounts.

Jacobs Taper & DIN 238 Taper Arbors

These arbors are available in a wide range of taper combinations to suit most industry-standard drill presses and milling machines:

  • Taper Shanks: Available in Morse Tapers 1, 2, 3, 4, 5, and 6.

  • Chuck Mounts: Compatible with a variety of mounts including Jacobs #1, #2, #3, #6, #18, #24, #33, and DIN B10, B12, B16, B18, B22, B24
